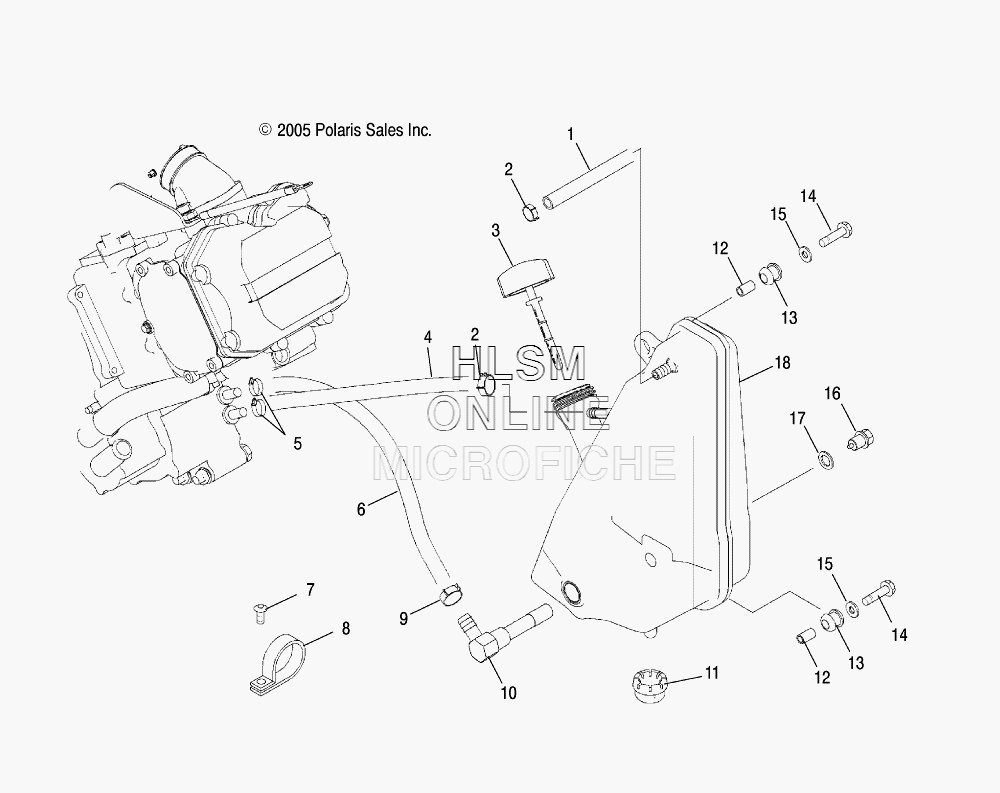

OIL SYSTEM AND OIL TANK для Polaris SPORTSMAN 500 EFI TRACTOR (A10MN50ET) (TURBO SILVER) - 2010 года выпуска`
-
№АртикулНазвание
-
15413003 LINE, BREATHERLINE, BREATHER
-
27080699 CLAMP, HOSECLAMP, HOSE
-
35434574 DIPSTICK, OIL TANKDIPSTICK, OIL TANK
-
48450073-600 LINE, OILLINE, OIL
-
57080474 CLAMP, HOSECLAMP, HOSE
-
68450096-100 LINE, OILLINE, OIL
-
77512024 SCREWSCREW
-
87080693 CLAMP, HOSECLAMP, HOSE
-
97081026 CLAMP, HOSECLAMP, HOSE
-
107052326 SCREEN, OIL FILTER, 90 DEGREESCREEN, OIL FILTER, 90 DEGREE
-
115412507 GROMMETGROMMET
-
125333204 BUSHING, MOUNTINGBUSHING, MOUNTING
-
135410828 GROMMET, MOUNTING, RESERVOIRGROMMET, MOUNTING, RESERVOIR
-
147512242 SCREWSCREW
-
157558301 WASHER, FLATWASHER, FLAT
-
167051524 PLUGPLUG
-
175850135 WASHERWASHER
-
181261653 TANK, OILTANK, OIL
