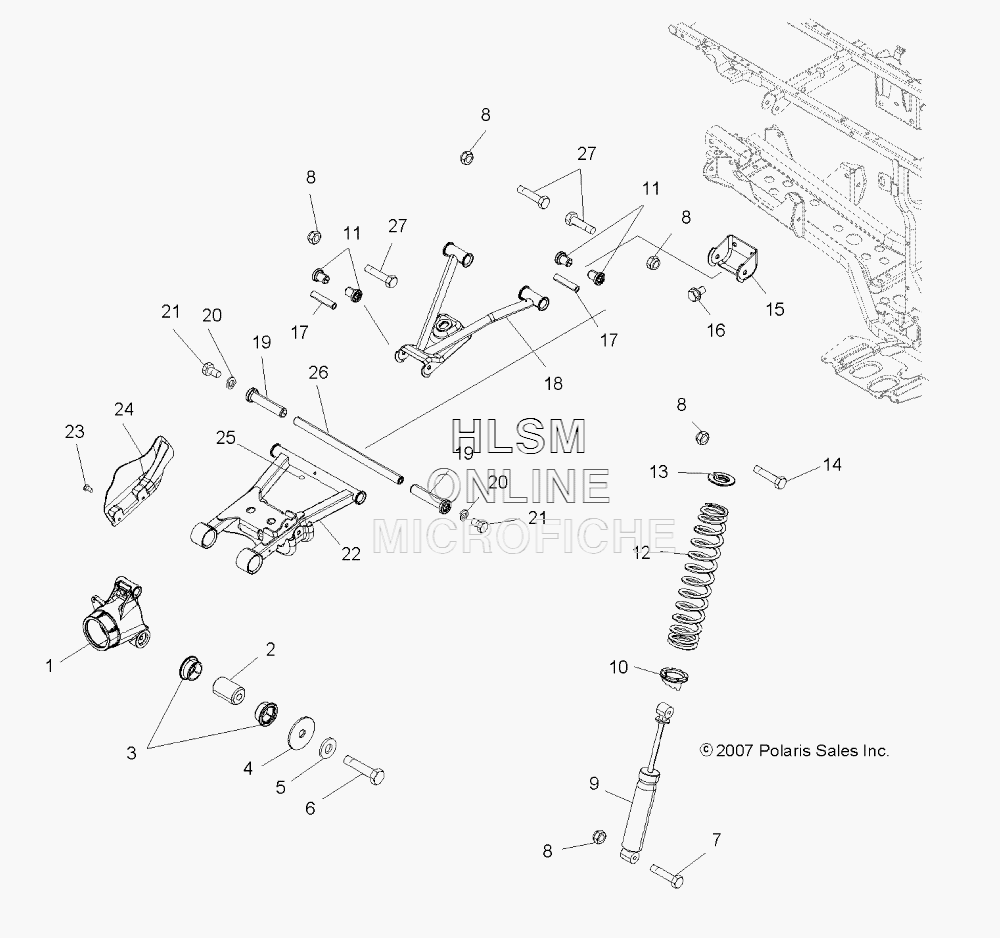

SUSPENSION- REAR для Polaris SPORTSMAN 500 EFI TRACTOR (A10MN50ET) (TURBO SILVER) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    5135563 CARRIER, WHEEL BEARING
    CARRIER, WHEEL BEARING
  • 2
    5632291 BUSHING, BEARING CARRIER
    BUSHING, BEARING CARRIER
  • 3
    5434550 BUSHING, CONTROL, LOWER
    BUSHING, CONTROL, LOWER
  • 4
    7555740 WASHER, FLAT
    WASHER, FLAT
  • 5
    7552614 WASHER, LOCK
    WASHER, LOCK
  • 6
    7517873 BOLT
    BOLT
  • 7
    7515415 SCREW
    SCREW
  • 8
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 9
    7043100 SHOCK, REAR
    SHOCK, REAR
  • 10
    5630551 CAM, ADJUSTING, SPRING
    CAM, ADJUSTING, SPRING
  • 11
    5434548 BUSHING, A-ARM, SHORT
    BUSHING, A-ARM, SHORT
  • 12
    7043091-067 SPRING, COMPRESSION, REAR (BLACK)
    SPRING, COMPRESSION, REAR (BLACK)
  • 13
    5251753 RETAINER, SPRING
    RETAINER, SPRING
  • 14
    7515433 SCREW
    SCREW
  • 15
    5247345 BRACKET, A-ARM PIVOT
    BRACKET, A-ARM PIVOT
  • 16
    7517632 SCREW
    SCREW
  • 17
    5020826 SHAFT, A-ARM, SHORT
    SHAFT, A-ARM, SHORT
  • 18
    1014320-067 ARM, CONTROL, UPPER (BLACK) (LEFT)
    ARM, CONTROL, UPPER (BLACK) (LEFT)
  • 18
    1014321-067 ARM, CONTROL, UPPER (BLACK) (RIGHT)
    ARM, CONTROL, UPPER (BLACK) (RIGHT)
  • 19
    5434551 BUSHING, A-ARM, LONG
    BUSHING, A-ARM, LONG
  • 20
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 21
    7512492 SCREW
    SCREW
  • 22
    1015888-067 CONTROL, LOWER (BLACK) (LEFT)
    CONTROL, LOWER (BLACK) (LEFT)
  • 22
    1015889-067 CONTROL, LOWER (BLACK) (RIGHT)
    CONTROL, LOWER (BLACK) (RIGHT)
  • 23
    7512084 SCREW
    SCREW
  • 24
    5435008-070 SHIELD, CV REAR (BLACK) (LEFT)
    SHIELD, CV REAR (BLACK) (LEFT)
  • 24
    5435009-070 SHIELD, CV REAR (BLACK) (RIGHT)
    SHIELD, CV REAR (BLACK) (RIGHT)
  • 25
    7080433 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 26
    5133806 SHAFT, A-ARM
    SHAFT, A-ARM
  • 27
    7515472 BOLT
    BOLT
