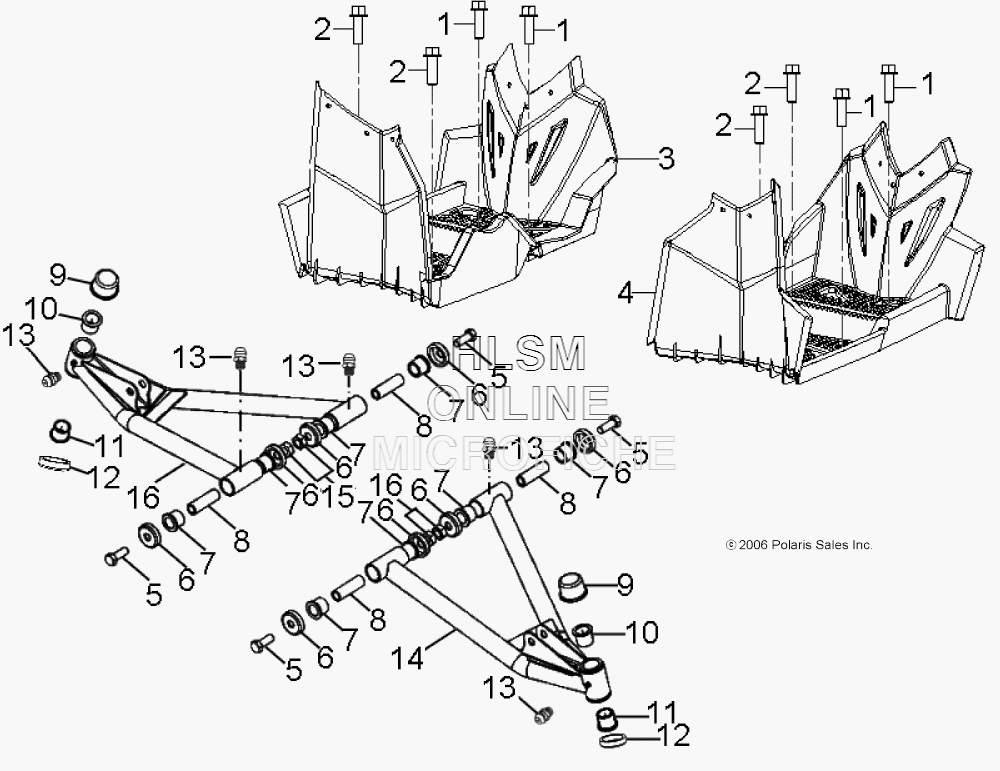

CHASSIS- A-ARM AND FOOTREST для Polaris OUTLAW 90 (A10KA09AB) (RED) - 2010 года выпуска`
-
№АртикулНазвание
-
10452216 BOLTBOLT
-
20453681 BOLTBOLT
-
30453320-070 FOOTWELL (RIGHT) (BLACK)FOOTWELL (RIGHT) (BLACK)
-
40453319-070 FOOTWELL (LEFT) (BLACK)FOOTWELL (LEFT) (BLACK)
-
50453682 BOLTBOLT
-
60451762 CAP, RUBBERCAP, RUBBER
-
70453683 BUSHINGBUSHING
-
80453497 SPACERSPACER
-
90450316 COVER-SUSPENSION ARMCOVER-SUSPENSION ARM
-
100450313 BUSHING, GREASE RETAINER, UPPERBUSHING, GREASE RETAINER, UPPER
-
110450314 BUSHING, GREASE RETAINER, LOWERBUSHING, GREASE RETAINER, LOWER
-
120450317 RUBBER, DUSTPROOFRUBBER, DUSTPROOF
-
130450320 VALVE, GREASEVALVE, GREASE
-
140453684-385 ASM., A-ARM (LEFT) (SILVER)ASM., A-ARM (LEFT) (SILVER)
-
150450249 NUTNUT
-
160453685-385 ASM., A-ARM (RIGHT) (SILVER)ASM., A-ARM (RIGHT) (SILVER)
