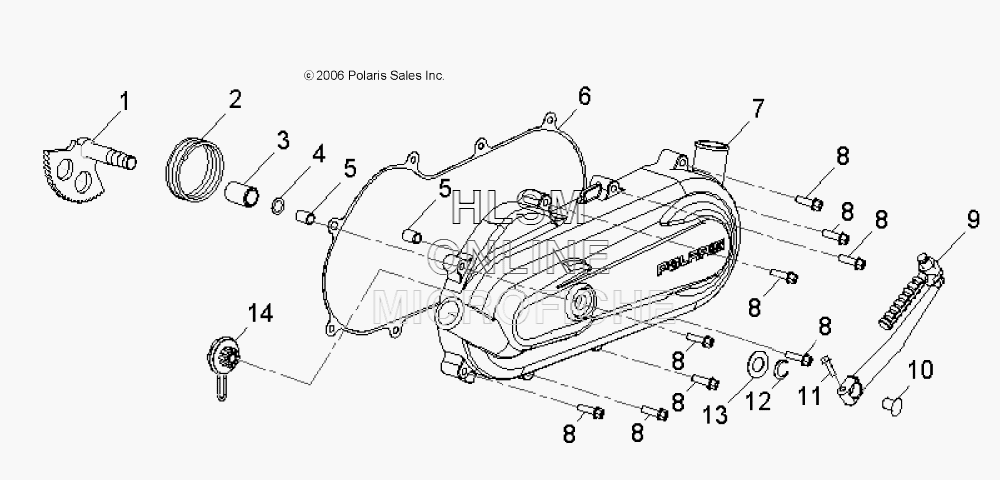

CLUTCH COVER AND KICK START для Polaris OUTLAW 90 (A10KA09AB) (RED) - 2010 года выпуска
-
№АртикулНазвание
-
10453468 ASM., KICK SHAFTASM., KICK SHAFT
-
20450184 SPRING, RESETSPRING, RESET
-
30450185 BUSHINGBUSHING
-
40452394 O-RINGO-RING
-
50452342 PIN, DOWELPIN, DOWEL
-
60453422 GASKETGASKET
-
70453421 COVER, CLUTCHCOVER, CLUTCH
-
80452331 BOLTBOLT
-
90450569 KIT, CRANK ASM.KIT, CRANK ASM.
-
100451746 CAP, KICK STARTERCAP, KICK STARTER
-
110450189 BOLTBOLT
-
120450187 CIRCLIPCIRCLIP
-
130450186 WASHERWASHER
-
140451745 ASM., KICK PINIONASM., KICK PINION
