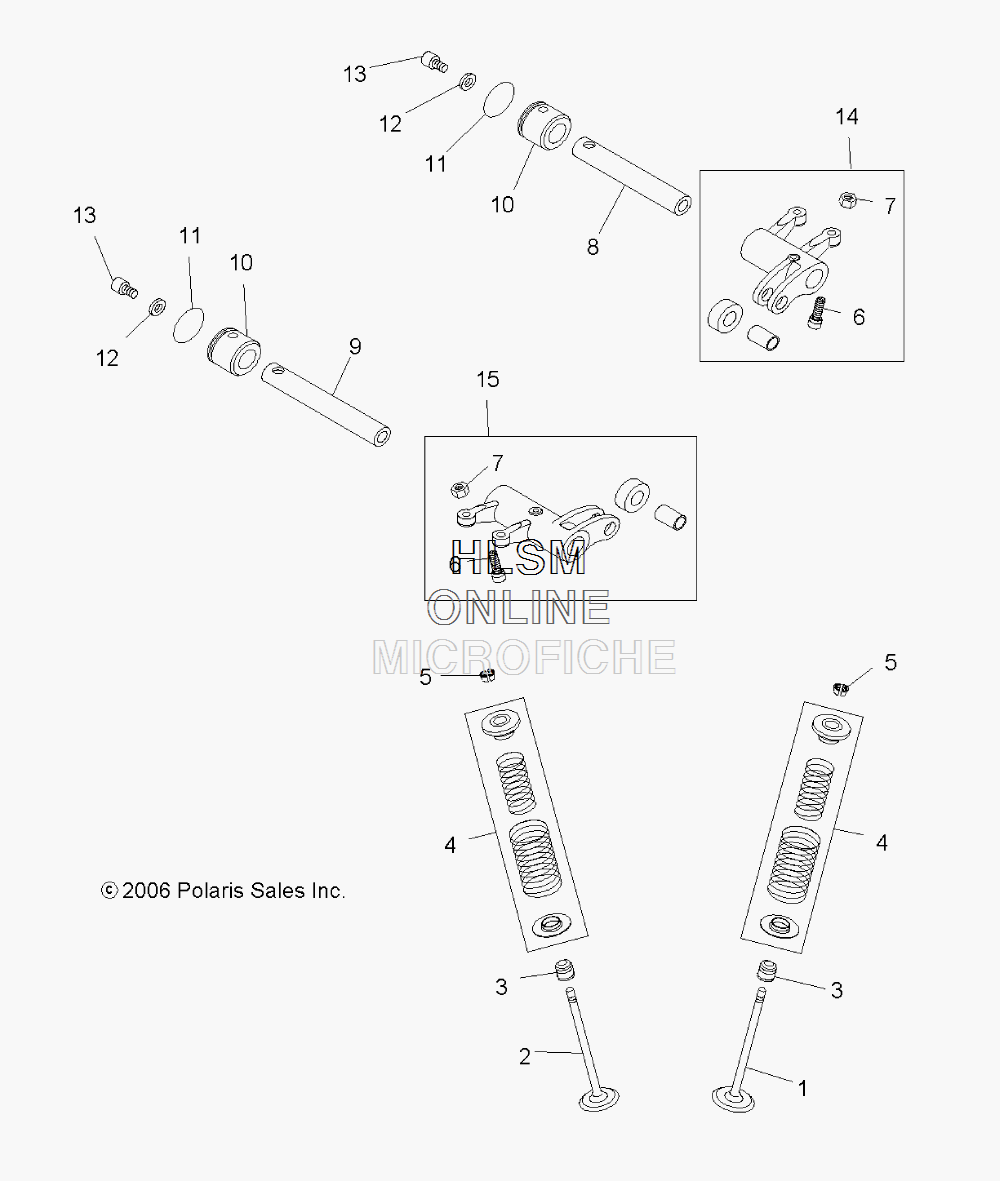

VALVES для Polaris OUTLAW 525 2X4 IRS (A10GP52AA) (INDY RED/WHITE) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    5135841 VALVE, INTAKE
    VALVE, INTAKE
  • 2
    5135842 VALVE, EXHAUST
    VALVE, EXHAUST
  • 3
    5413250 SEAL, VALVE STEM
    SEAL, VALVE STEM
  • 4
    2203414 KIT, VALVE SPRING
    KIT, VALVE SPRING
  • 5
    5910275 KEEPER, VALVE
    KEEPER, VALVE
  • 6
    7518792 SCREW, VALVE LASH ADJUSTER
    SCREW, VALVE LASH ADJUSTER
  • 7
    7547391 NUT, VALVE LASH ADJUSTER LOCK
    NUT, VALVE LASH ADJUSTER LOCK
  • 8
    3021853 SHAFT, ROCKET ARM, INTAKE
    SHAFT, ROCKET ARM, INTAKE
  • 9
    3021854 SHAFT, ROCKET ARM, EXHAUST
    SHAFT, ROCKET ARM, EXHAUST
  • 10
    3021852 ASM., ROCKET ARM, SHAFT END CAP
    ASM., ROCKET ARM, SHAFT END CAP
  • 11
    5413307 O-RING
    O-RING
  • 12
    7556445 WASHER, ALUMINUM
    WASHER, ALUMINUM
  • 13
    7518793 SCREW
    SCREW
  • 14
    3021851 ASM., ROCKET ARM, INTAKE
    ASM., ROCKET ARM, INTAKE
  • 15
    3021850 ASM., ROCKET ARM, EXHAUST
    ASM., ROCKET ARM, EXHAUST
