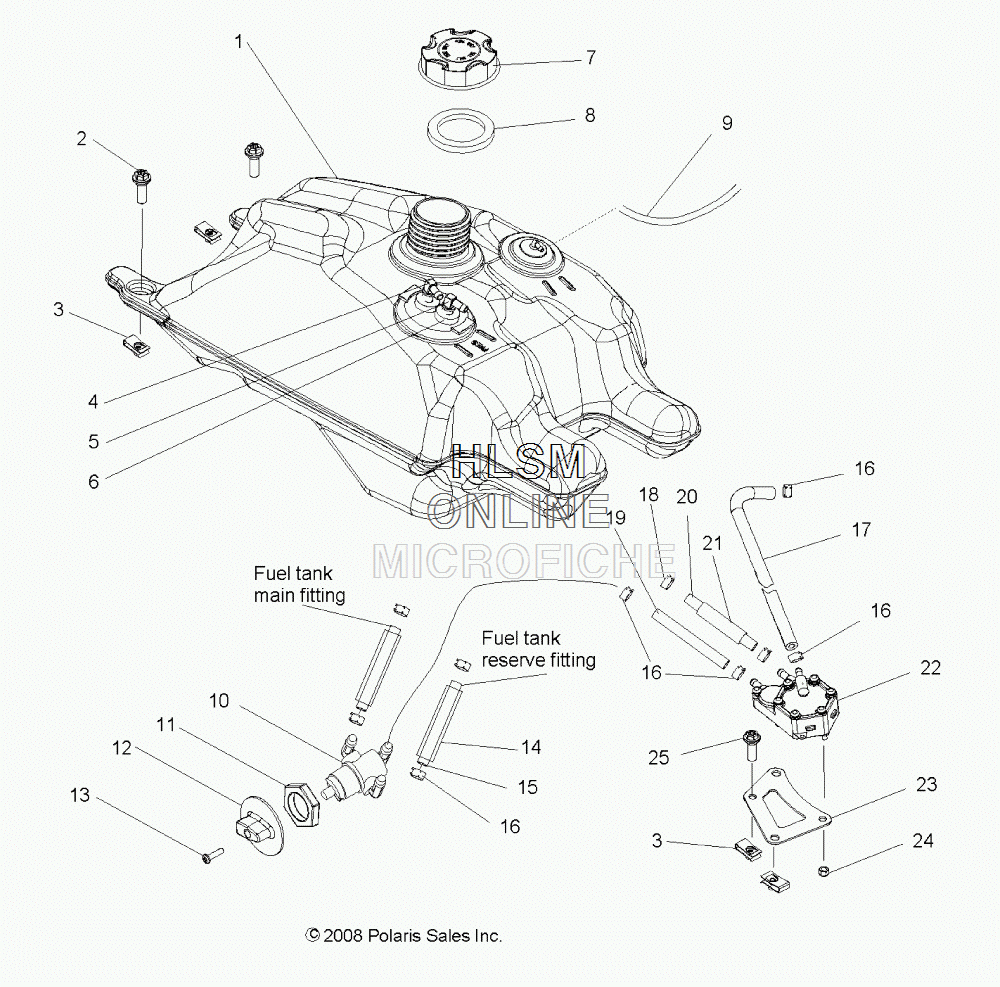

FUEL TANK для Polaris OUTLAW 525 2X4 IRS (A10GP52AA) (INDY RED/WHITE) - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    2520880 ASM., FUEL TANK (INCL. 4-6)
    ASM., FUEL TANK (INCL. 4-6)
  • 2
    7518897 BOLT, FLANGE
    BOLT, FLANGE
  • 3
    7081305 CLIP, U-TYPE SPEED NUT
    CLIP, U-TYPE SPEED NUT
  • 4
    2520945 ASM., FUEL INLET TUBE, MAIN (WHITE FITTING)
    ASM., FUEL INLET TUBE, MAIN (WHITE FITTING)
  • 5
    2520946 ASM., FUEL INLET TUBE, RESERVE (BLACK FITTING)
    ASM., FUEL INLET TUBE, RESERVE (BLACK FITTING)
  • 6
    7052466 GROMMET, FLANGED
    GROMMET, FLANGED
  • 7
    5433687 CAP, GAS TANK
    CAP, GAS TANK
  • 8
    5812123 GASKET
    GASKET
  • 9
    8450061-600 LINE, OIL
    LINE, OIL
  • 10
    7052155 VALVE, 3-WAY
    VALVE, 3-WAY
  • 11
    5432733 NUT, FUEL VALVE
    NUT, FUEL VALVE
  • 12
    5432559 KNOB, FUEL VALVE
    KNOB, FUEL VALVE
  • 13
    7517505 SCREW
    SCREW
  • 14
    8360054-30 CONDUIT, FLEX
    CONDUIT, FLEX
  • 15
    8450117-250 HOSE, FUEL
    HOSE, FUEL
  • 16
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    5413647 HOSE, PULSE
    HOSE, PULSE
  • 18
    7080534 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    5413648 HOSE, VALVE/PUMP
    HOSE, VALVE/PUMP
  • 20
    5413646 HOSE, PUMP/CARB
    HOSE, PUMP/CARB
  • 21
    8360054-63 CONDUIT, FLEX
    CONDUIT, FLEX
  • 22
    2520227 ASM., FUEL PUMP
    ASM., FUEL PUMP
  • 23
    5252946-329 BRACKET, MOUNT, FUEL PUMP (BLACK)
    BRACKET, MOUNT, FUEL PUMP (BLACK)
  • 24
    7546601 NUT, NYLOK
    NUT, NYLOK
  • 25
    7519066 SCREW, FLANGE
    SCREW, FLANGE
