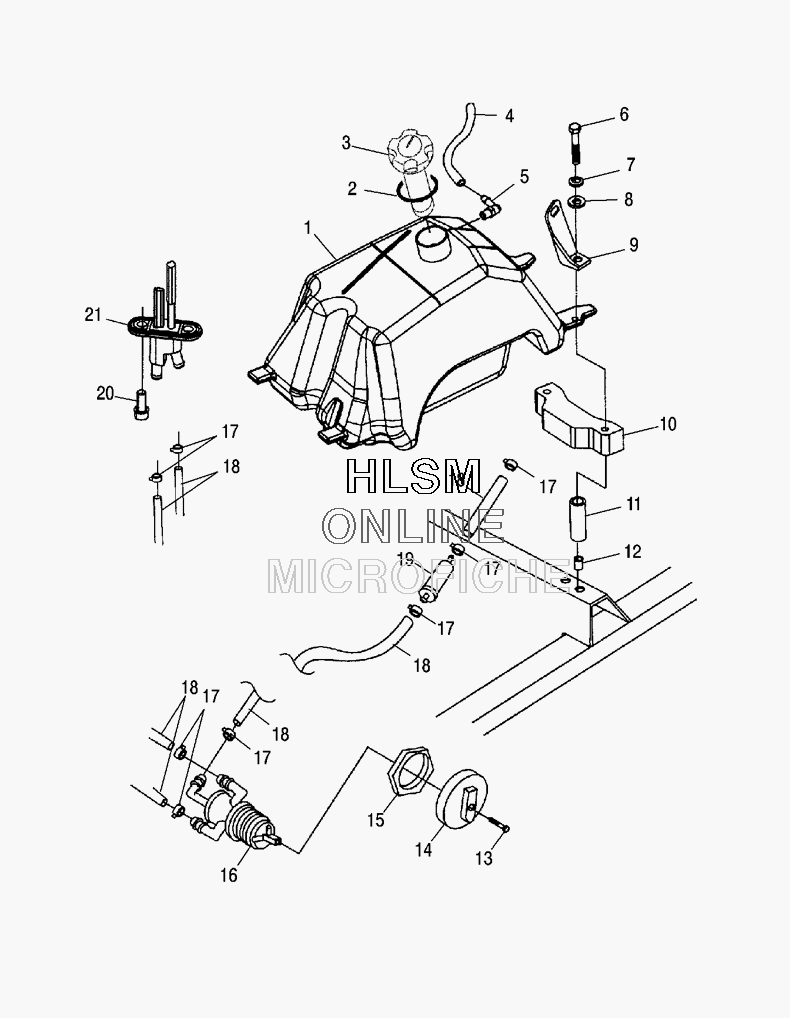

FUEL TANK для Polaris TRAIL BOSS 330 (A09CA32AA) - 2009 года выпуска
-
№АртикулНазвание
-
12520409 ASM-FUEL TANK (INCL. 5, 20, 21)ASM-FUEL TANK (INCL. 5, 20, 21)
-
25812123 GASKETGASKET
-
32873626 KIT, GAUGE, FUELKIT, GAUGE, FUEL
-
48360009-600 LINE, FUEL, 1/8 ID, 600 CM.LINE, FUEL, 1/8 ID, 600 CM.
-
55431053 VENT, TANKVENT, TANK
-
67517451 BOLTBOLT
-
77552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
87555859 WASHER, FLATWASHER, FLAT
-
95247184 BRKT-FUEL COVER MT LEFT HAND, PLTDBRKT-FUEL COVER MT LEFT HAND, PLTD
-
95247185 BRKT-FUEL COVER MT RIGHT HAND, PLTDBRKT-FUEL COVER MT RIGHT HAND, PLTD
-
105811951 SEAL, FOAM 2'' THKSEAL, FOAM 2'' THK
-
115332457 SPACERSPACER
-
127547069 NUTSERT, HEXNUTSERT, HEX
-
137517505 SCREWSCREW
-
145432559 KNOB, FUEL VALVEKNOB, FUEL VALVE
-
155432733 NUT, FUEL VALVENUT, FUEL VALVE
-
167052161 VALVE, 3-WAYVALVE, 3-WAY
-
177080003 CLAMP, HOSECLAMP, HOSE
-
188450117-250 FUEL HOSE-250 CMFUEL HOSE-250 CM
-
192530009 FILTER, SMALL, IN-LINE,FILTER, SMALL, IN-LINE,
-
207515136 SCREWSCREW
-
217052364 FITTING-FUEL, DUAL OUTLETFITTING-FUEL, DUAL OUTLET
