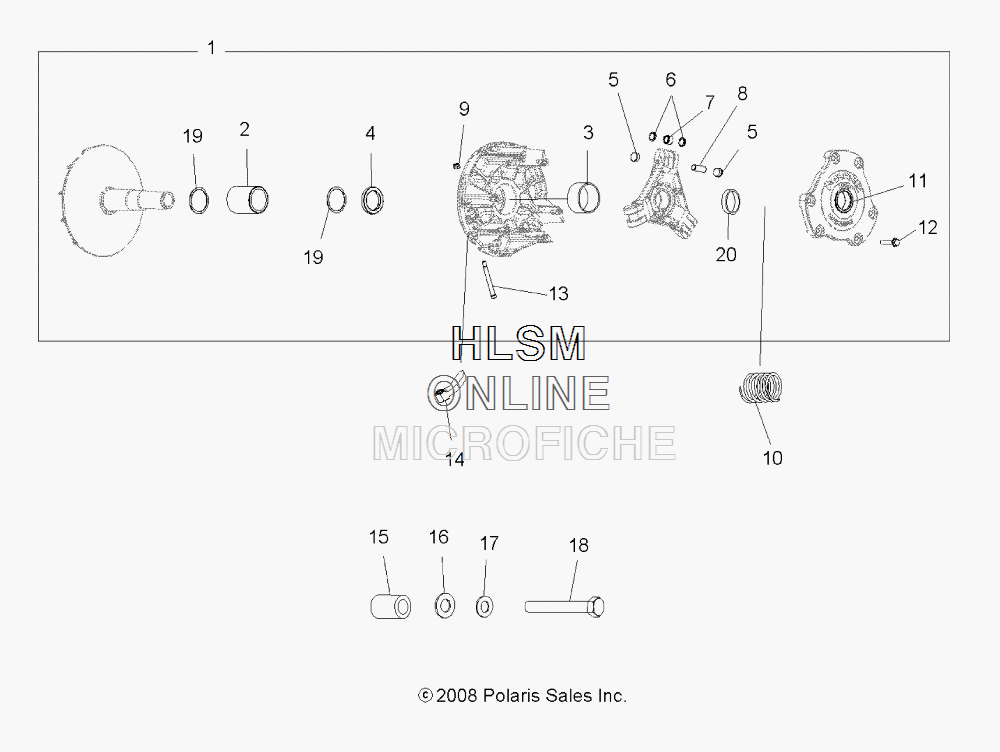

CLUTCH - PRIMARY для Polaris SPORTSMAN XP 550 INTL. [A09ZN55FX] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    1322814 ASM., CLUTCH (INCL. 1-9,11-13,19)
    ASM., CLUTCH (INCL. 1-9,11-13,19)
  • 2
    1322809 ASM., CLUTCH
    ASM., CLUTCH
  • 3
    3514492 BEARING
    BEARING
  • 4
    5632060 SPACER
    SPACER
  • 5
    5431936 BUTTON, CLUTCH
    BUTTON, CLUTCH
  • 6
    5430945 WASHER
    WASHER
  • 7
    1321622 ASM., ROLLER AND BUSHING
    ASM., ROLLER AND BUSHING
  • 8
    5020422 PIN, ROLLER
    PIN, ROLLER
  • 9
    7541906 NUT, FLEXLOC
    NUT, FLEXLOC
  • 10
    7043500 SPRING, CLUTCH, 63-226
    SPRING, CLUTCH, 63-226
  • 11
    3576510 BEARING, COVER
    BEARING, COVER
  • 12
    7518062 SCREW
    SCREW
  • 13
    7512266 BOLT, SHOULDER
    BOLT, SHOULDER
  • 14
    5632218 WEIGHT, SHIFT, 23-58G
    WEIGHT, SHIFT, 23-58G
  • 15
    5437682 BUSHING
    BUSHING
  • 16
    7556468 WASHER, FLAT
    WASHER, FLAT
  • 17
    7556377 WASHER, INTERLOCK
    WASHER, INTERLOCK
  • 18
    7518868 BOLT
    BOLT
  • 19
    7556335 WASHER
    WASHER
  • 20
    5437747 SPACER, CLUTCH LIMITER
    SPACER, CLUTCH LIMITER
