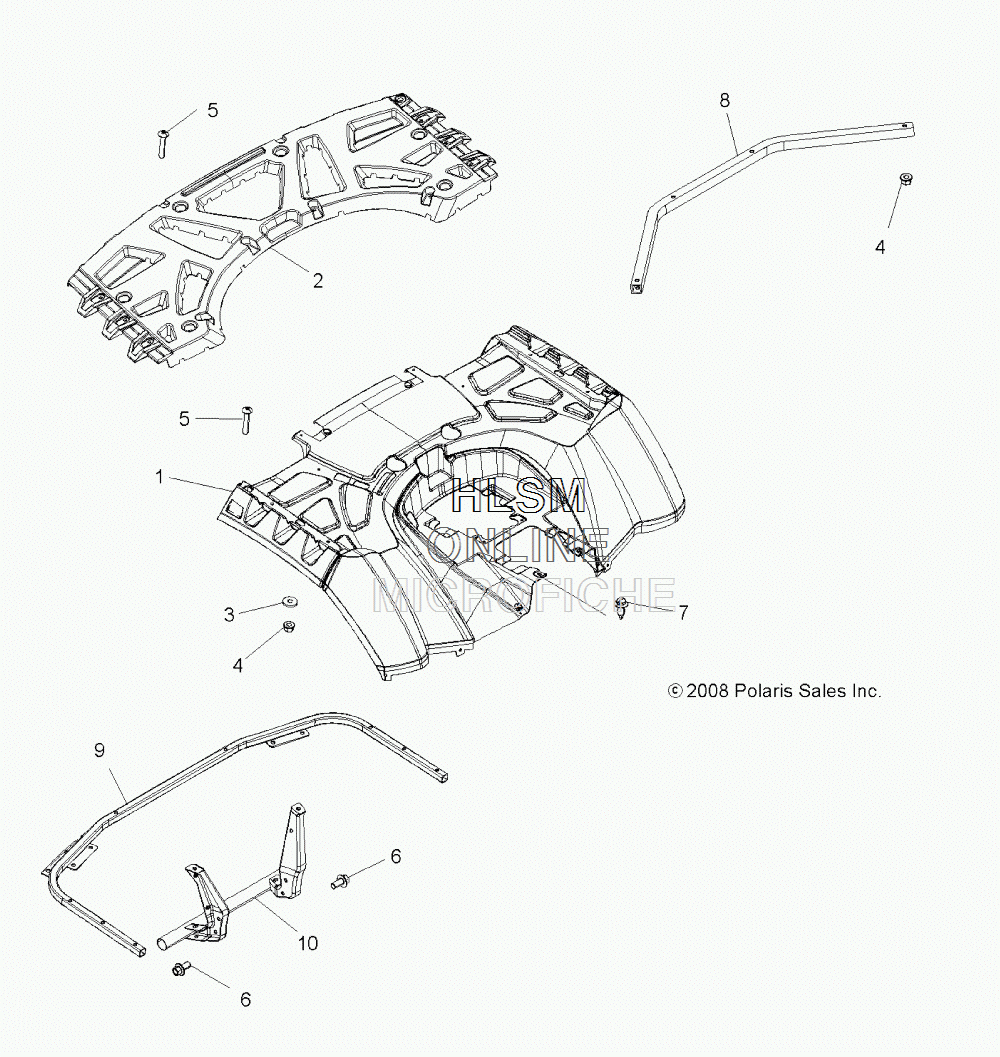

CAB - REAR W/ REAR RACK для Polaris SPORTSMAN XP 550 INTL. [A09ZN55FX] - 2009 года выпуска`
-
№АртикулНазвание
-
15437734-498 CAB, REAR, SAGEBRUSH GREEN METALLICCAB, REAR, SAGEBRUSH GREEN METALLIC
-
22633429-070 ASM., RACK, REAR, BLACK (INCL. WARNING DECAL)ASM., RACK, REAR, BLACK (INCL. WARNING DECAL)
-
37558302 WASHERWASHER
-
47547274 NUT, FLANGENUT, FLANGE
-
57519001 SCREWSCREW
-
67518555 BOLTBOLT
-
77661855 RIVETRIVET
-
85335770-329 TUBE, SUPPORT, RACK, REAR, FRONT, BLACKTUBE, SUPPORT, RACK, REAR, FRONT, BLACK
-
91016782-329 BRACKET, RACK, REAR, BLACKBRACKET, RACK, REAR, BLACK
-
101015776-067 SUPPORT, RACK, REAR, BLACKSUPPORT, RACK, REAR, BLACK
