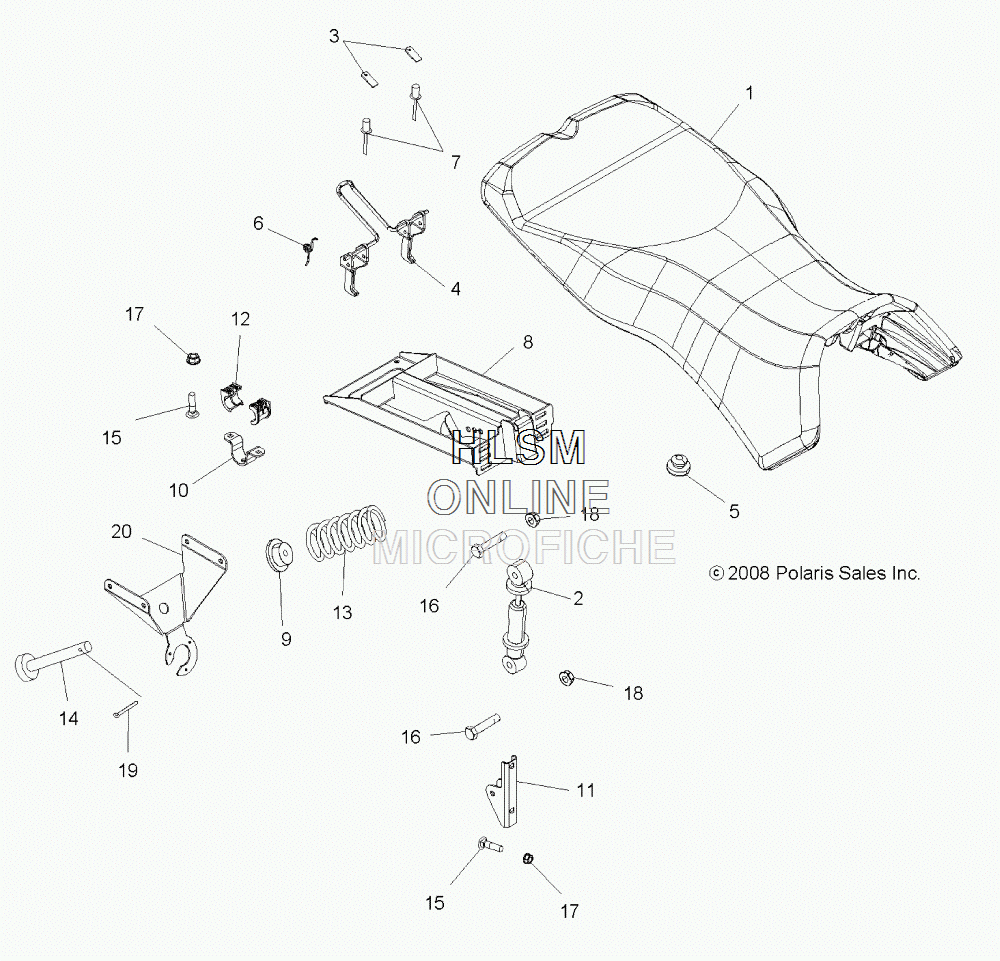

SEAT ASM. для Polaris SPORTSMAN 500 EFI TRACTOR (A09MN50ET) (STEALTH BLACK) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2684232 ASM., SEAT (INCL. COVERING, BASE, 3-7)
    ASM., SEAT (INCL. COVERING, BASE, 3-7)
  • 1
    2684341 COVERING, SEAT
    COVERING, SEAT
  • 2
    1500797 SHOCK, SEAT
    SHOCK, SEAT
  • 3
    5211033 BRACKET, LEVER RETAINER
    BRACKET, LEVER RETAINER
  • 4
    1016733 LATCH, SEAT
    LATCH, SEAT
  • 5
    5412067 BUMPER, RUBBER
    BUMPER, RUBBER
  • 6
    7041370 SPRING, LATCH
    SPRING, LATCH
  • 7
    7621403 RIVET
    RIVET
  • 8
    1016876-067 SUSPENSION, SEAT (BLACK)
    SUSPENSION, SEAT (BLACK)
  • 9
    5136874 MOUNT, SPRING, LOWERED
    MOUNT, SPRING, LOWERED
  • 10
    5246732 BRACKET, BUSHING, UPPER STEERING
    BRACKET, BUSHING, UPPER STEERING
  • 11
    5252925-067 BRACKET, SHOCK, LOWER (BLACK)
    BRACKET, SHOCK, LOWER (BLACK)
  • 12
    5433866 BUSHING, UPPER STEERING
    BUSHING, UPPER STEERING
  • 13
    7042050-067 SPRING, COMPRESSION (BLACK)
    SPRING, COMPRESSION (BLACK)
  • 14
    7081572 KNOB, SPRING ADJUST
    KNOB, SPRING ADJUST
  • 15
    7517428 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 16
    7518278 SCREW
    SCREW
  • 17
    7542343 NUT, FLANGE
    NUT, FLANGE
  • 18
    7547180 NUT, FLANGE
    NUT, FLANGE
  • 19
    7661203 PIN, COTTER
    PIN, COTTER
  • 20
    1017077-067 BRACKET, SPRING ADJUST
    BRACKET, SPRING ADJUST
