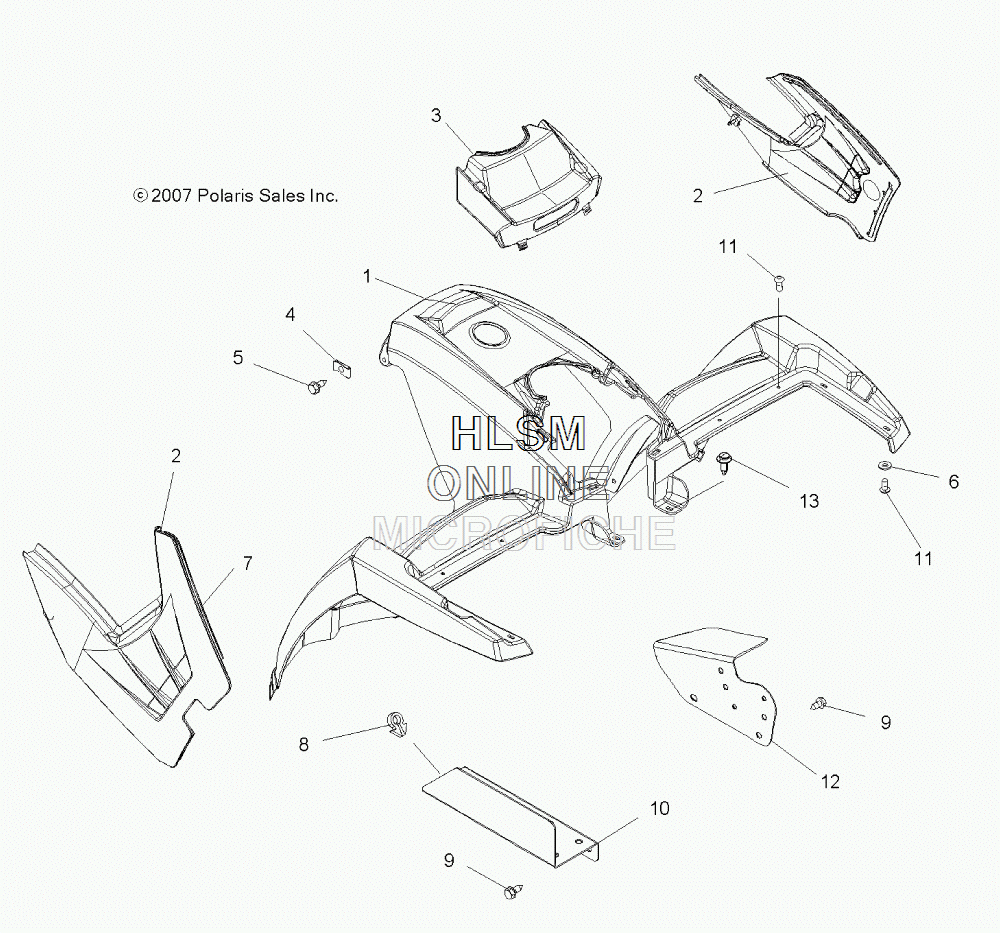

FENDER - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 500 EFI TRACTOR (A09MN50ET) (STEALTH BLACK) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2633790-464 ASM., CAB, FRONT (STEALTH BLACK) (INCL. WARNING DECALS)
    ASM., CAB, FRONT (STEALTH BLACK) (INCL. WARNING DECALS)
  • 2
    5436537-464 PANEL, SIDE LEFT HAND (STEALTH BLACK)
    PANEL, SIDE LEFT HAND (STEALTH BLACK)
  • 2
    2633179-464 ASM., PANEL/FOIL, RIGHT HAND (STEALTH BLACK) (INCL. 7)
    ASM., PANEL/FOIL, RIGHT HAND (STEALTH BLACK) (INCL. 7)
  • 3
    5436717-464 COVER, FRONT (STEALTH BLACK)
    COVER, FRONT (STEALTH BLACK)
  • 3
    7661893 CLIP, TRIM
    CLIP, TRIM
  • 4
    7670057 NUT, SPEED
    NUT, SPEED
  • 5
    7517219 SCREW
    SCREW
  • 6
    7556034 WASHER
    WASHER
  • 7
    5813031 FOIL, SIDE PANEL, L-SHAPED
    FOIL, SIDE PANEL, L-SHAPED
  • 7
    5813041 FOIL, RIGHT HAND
    FOIL, RIGHT HAND
  • 7
    5813055 FOIL, FRONT
    FOIL, FRONT
  • 8
    7670102 CLIP
    CLIP
  • 9
    7517386 SCREW
    SCREW
  • 10
    5248100-329 GUARD, SPLASH, RIGHT HAND
    GUARD, SPLASH, RIGHT HAND
  • 11
    7512026 SCREW
    SCREW
  • 12
    5246872 GUARD, SPLASH, LEFT HAND
    GUARD, SPLASH, LEFT HAND
  • 13
    7661855 RIVET
    RIVET
