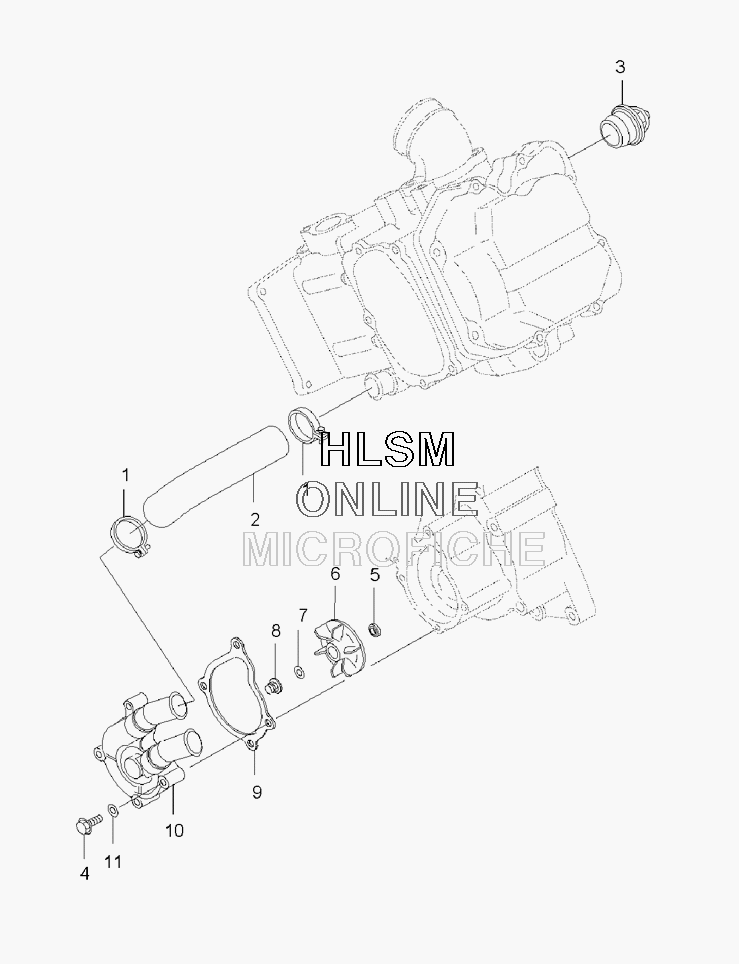

WATER PUMP для Polaris SPORTSMAN 400 HO 4X4 (A09LH46AQ) (NBU) - 2009 года выпуска
-
№АртикулНазвание
-
13086774 CLAMP-HOSECLAMP-HOSE
-
23090048 HOSE-MAINHOSE-MAIN
-
33090049 THERMOSTATTHERMOSTAT
-
43088064 BOLT,FLANGEBOLT,FLANGE
-
53084942 WASHER,SEALWASHER,SEAL
-
63084935 IMPELLERIMPELLER
-
73083138 WASHER,FLATWASHER,FLAT
-
83085077 NUT,SELF-LOCKNUT,SELF-LOCK
-
93090047 GASKET-WATERPUMPGASKET-WATERPUMP
-
103090046 COVER-WATERPUMP,COMPLETECOVER-WATERPUMP,COMPLETE
-
113088030 GASKET,COPPERGASKET,COPPER
