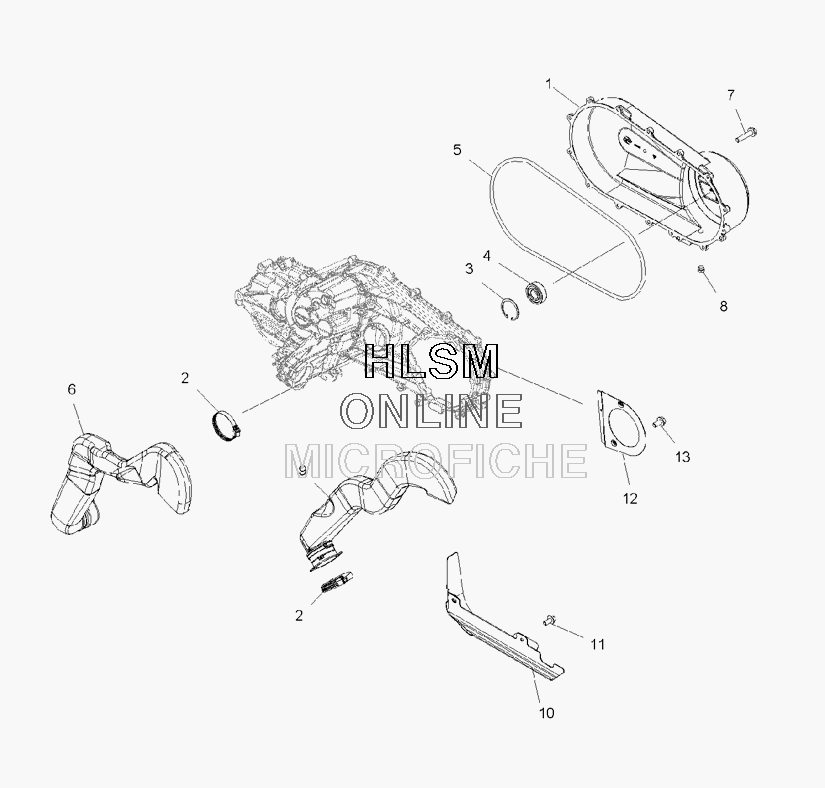

CLUTCH COVER для Polaris SPORTSMAN 400 HO 4X4 (A09LH46AQ) (NBU) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2633640 ASM-CLUTCH COVER (INCL. 3,4,8)
    ASM-CLUTCH COVER (INCL. 3,4,8)
  • 2
    7080707 CLAMP,BAND,NARROW
    CLAMP,BAND,NARROW
  • 3
    3234344 RETAINING RING, INTERNAL 1.56
    RETAINING RING, INTERNAL 1.56
  • 4
    3234343 BEARING, BALL, 6203-2RS
    BEARING, BALL, 6203-2RS
  • 5
    5812952 SEAL-CLUTCH COVER
    SEAL-CLUTCH COVER
  • 6
    1322780 ASM-OUTLET DUCT W/BOOT
    ASM-OUTLET DUCT W/BOOT
  • 7
    7516823 SCREW
    SCREW
  • 8
    3234345 PLUG, M14 X 1 X 9
    PLUG, M14 X 1 X 9
  • 9
    5437592 DUCT-INLET W/BOOT
    DUCT-INLET W/BOOT
  • 10
    5251409-329 PLATE-AIR DEFLECTOR,E-COAT
    PLATE-AIR DEFLECTOR,E-COAT
  • 11
    7518529 SCR-M6X1.0X20,HXHD,FLG,TDFM,BL
    SCR-M6X1.0X20,HXHD,FLG,TDFM,BL
  • 12
    5252026-329 PLATE-CLUTCH AIR FLOW,E-COAT
    PLATE-CLUTCH AIR FLOW,E-COAT
