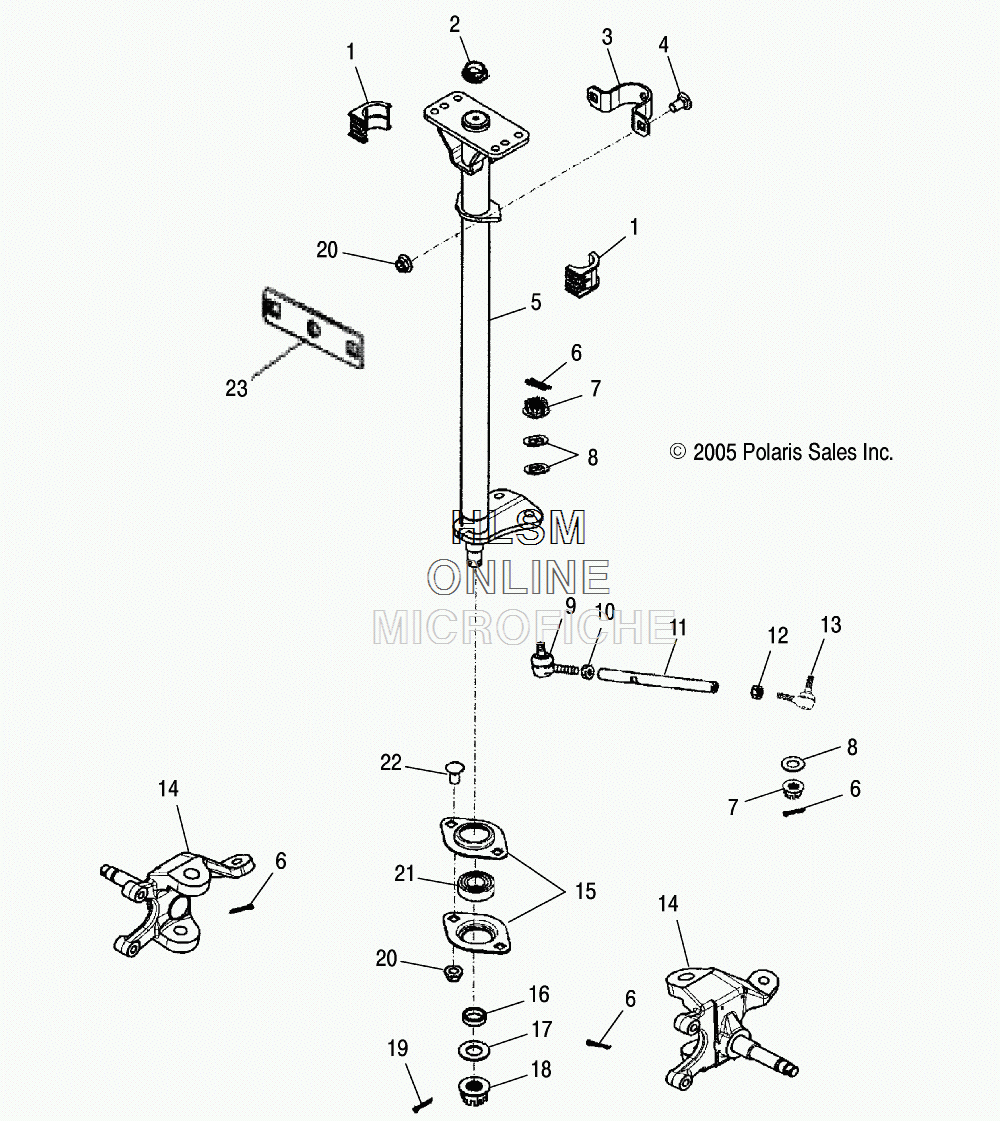

STEERING POST W/TIE RODS для Polaris PHOENIX 200 QUAD (A09PB20EB) (WHITE) - 2009 года выпуска

  • №
    Артикул
    Название
  • 0452783 ASM., TIE ROD (INCL. 9-13)
    ASM., TIE ROD (INCL. 9-13)
  • 1
    0452709 BUSHING, STEERING, UPPER
    BUSHING, STEERING, UPPER
  • 2
    0453125 CAP, RUBBER
    CAP, RUBBER
  • 3
    0454077 BRACKET, BUSHING, UPPER W/BOLTS
    BRACKET, BUSHING, UPPER W/BOLTS
  • 4
    0452716 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 5
    0454059-067 POST, STEERING (BLACK) (INCL. 2)
    POST, STEERING (BLACK) (INCL. 2)
  • 6
    0450719 PIN, COTTER
    PIN, COTTER
  • 7
    0450502 NUT, CASTLE
    NUT, CASTLE
  • 8
    0450279 WASHER
    WASHER
  • 9
    0453129 ROD END, LEFT HAND
    ROD END, LEFT HAND
  • 10
    0453131 NUT, HEX
    NUT, HEX
  • 11
    0453802 TIE ROD
    TIE ROD
  • 12
    0450224 NUT, JAM
    NUT, JAM
  • 13
    0453128 ROD END, RIGHT HAND
    ROD END, RIGHT HAND
  • 14
    0452274 KNUCKLE, LEFT HAND
    KNUCKLE, LEFT HAND
  • 14
    0452275 KNUCKLE, RIGHT HAND
    KNUCKLE, RIGHT HAND
  • 15
    0452707 FLANGETTE
    FLANGETTE
  • 16
    0452719 SPACER, RING
    SPACER, RING
  • 17
    0452671 WASHER
    WASHER
  • 18
    0452669 NUT, CASTLE
    NUT, CASTLE
  • 19
    0450395 PIN, COTTER
    PIN, COTTER
  • 20
    0450882 NUT
    NUT
  • 21
    0453978 BEARING, BALL
    BEARING, BALL
  • 22
    0452776 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 23
    0454053 BRACKET, STEERING POST
    BRACKET, STEERING POST
