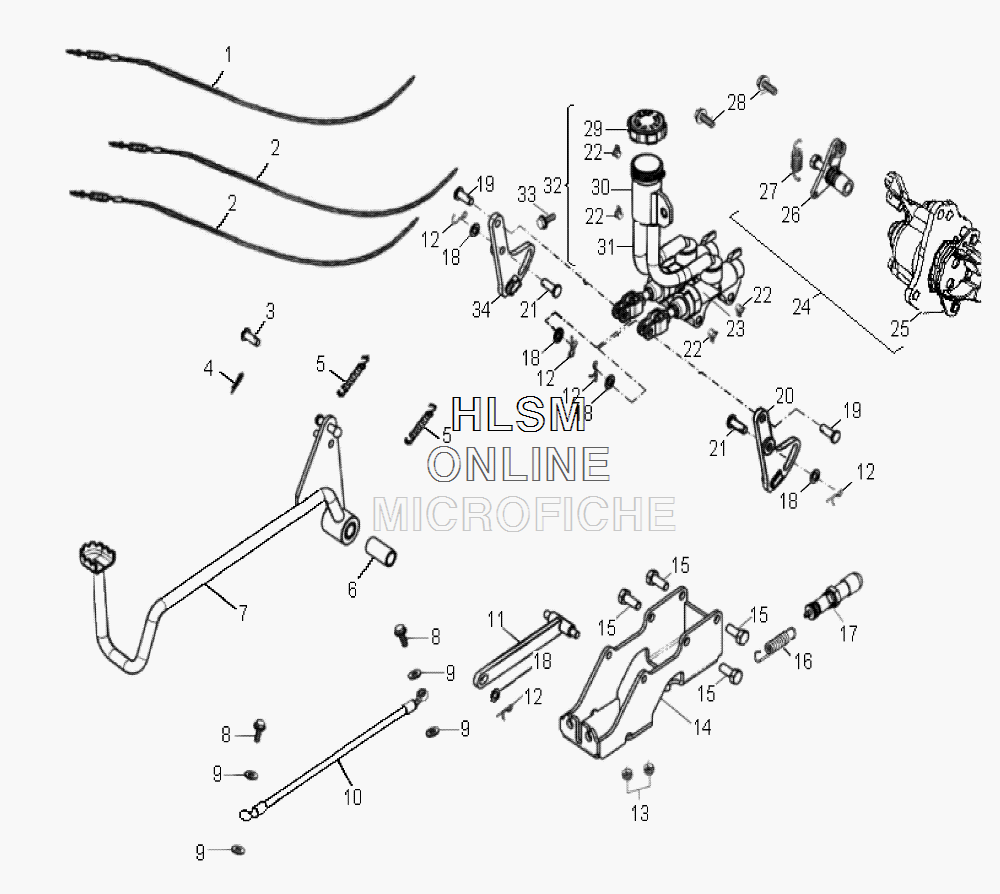

BRAKE - REAR для Polaris PHOENIX 200 QUAD (A09PB20EB) (WHITE) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0452873 CABLE, HAND BRAKE, REAR
    CABLE, HAND BRAKE, REAR
  • 2
    0453272 CABLE, BRAKE, FRONT
    CABLE, BRAKE, FRONT
  • 3
    0453363 SEAL
    SEAL
  • 4
    0450719 PIN, COTTER
    PIN, COTTER
  • 5
    0452686 SPRING, BRAKE LEVER
    SPRING, BRAKE LEVER
  • 6
    0453274 BUSHING
    BUSHING
  • 7
    0453273 LEVER, BRAKE, FOOT
    LEVER, BRAKE, FOOT
  • 8
    0452871 BOLT, BANJO
    BOLT, BANJO
  • 9
    0453313 WASHER
    WASHER
  • 10
    0453301 HOSE, BRAKE
    HOSE, BRAKE
  • 11
    0453278 ROD, CONNECTING, BRAKE
    ROD, CONNECTING, BRAKE
  • 12
    0453282 BOLT
    BOLT
  • 13
    0450282 NUT
    NUT
  • 14
    0453298 PLATE, MOUNTING, MASTER CYLINDER
    PLATE, MOUNTING, MASTER CYLINDER
  • 15
    0453126 BOLT
    BOLT
  • 16
    0454058 SPRING BRAKE, FOOT
    SPRING BRAKE, FOOT
  • 17
    0453015 SWITCH, BRAKE LIGHT
    SWITCH, BRAKE LIGHT
  • 18
    0453279 WASHER
    WASHER
  • 19
    0453281 PIN
    PIN
  • 20
    0453275 LEVER, ARM, LEFT HAND
    LEVER, ARM, LEFT HAND
  • 21
    0453280 PIN
    PIN
  • 22
    0453300 CLAMP
    CLAMP
  • 23
    0453293 CYLINDER, MASTER
    CYLINDER, MASTER
  • 24
    0454072 ASM., CALIPER, REAR
    ASM., CALIPER, REAR
  • 25
    0453812 PAD, BRAKE, REAR
    PAD, BRAKE, REAR
  • 27
    0454442 SPRING, BRAKE
    SPRING, BRAKE
  • 28
    0452888 BOLT
    BOLT
  • 29
    0453023 CAP, BRAKE RESERVOIR
    CAP, BRAKE RESERVOIR
  • 30
    0453299 RESERVOIR, BRAKE
    RESERVOIR, BRAKE
  • 31
    0453277 HOSE, BRAKE LINE
    HOSE, BRAKE LINE
  • 32
    0454074 ASM., MASTER CYLINDER
    ASM., MASTER CYLINDER
  • 33
    0452816 BOLT
    BOLT
  • 34
    0453276 LEVER, ARM, RIGHT HAND
    LEVER, ARM, RIGHT HAND
