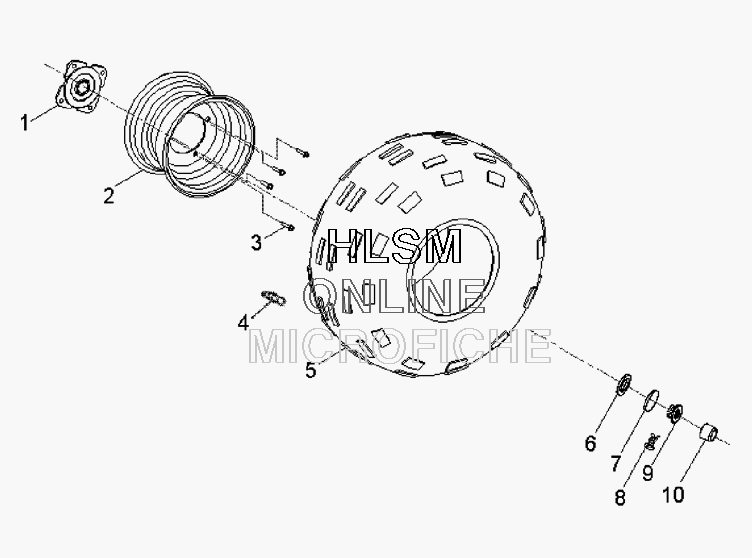

WHEEL - REAR для Polaris OUTLAW 90 (A09KA9AD) (PINK) - 2009 года выпуска
-
№АртикулНазвание
-
10450831-385 HUB-WHEEL, SILVERHUB-WHEEL, SILVER
-
20450749-385 RIM-WHEEL, SILVERRIM-WHEEL, SILVER
-
30450124 BOLT-HEX WSHR FACEBOLT-HEX WSHR FACE
-
40450401 VALVE, RIMVALVE, RIM
-
50451127 TIRE-REAR 18X9.5-8TIRE-REAR 18X9.5-8
-
60453001 WASHER-FLATWASHER-FLAT
-
70452663 WASHERWASHER
-
80450395 PIN-COTTERPIN-COTTER
-
90450409 NUT-LOCKNUT-LOCK
-
100450829 CAP-RUBBERCAP-RUBBER
