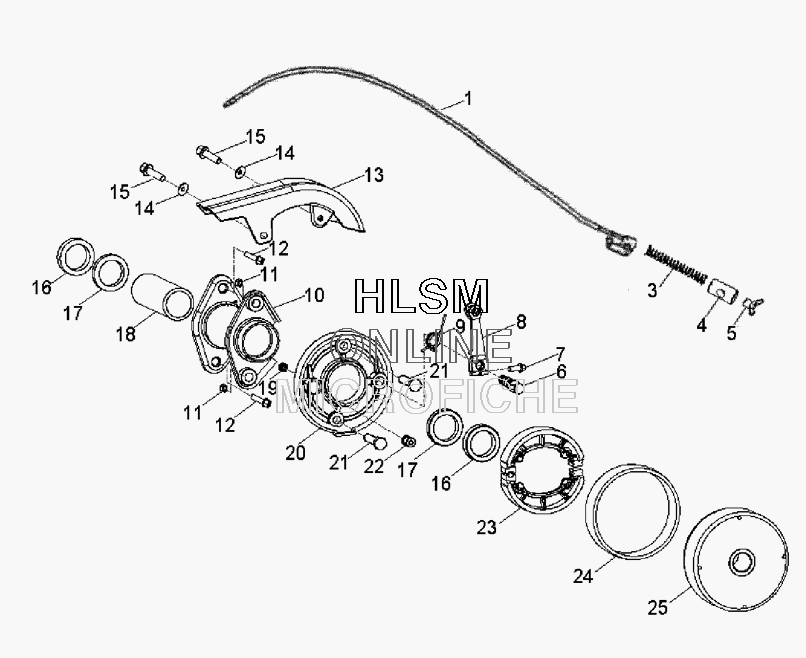

BRAKE - REAR для Polaris OUTLAW 90 (A09KA9AD) (PINK) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0454015 CABLE-REAR BRAKE
    CABLE-REAR BRAKE
  • 3
    0450435 SPRING-CABLE, REAR BRAKE
    SPRING-CABLE, REAR BRAKE
  • 4
    0451079 NUT, ADJUST, BRAKE
    NUT, ADJUST, BRAKE
  • 5
    0453094 SPACER-REAR BRAKE CABLE, PHX
    SPACER-REAR BRAKE CABLE, PHX
  • 6
    0450431 SHAFT, CAM, REAR BRAKE
    SHAFT, CAM, REAR BRAKE
  • 7
    0450433 BOLT-HEX
    BOLT-HEX
  • 8
    0454033 ARM-BRAKE, REAR
    ARM-BRAKE, REAR
  • 9
    0450453 SPRING, BRAKE ARM, REAR
    SPRING, BRAKE ARM, REAR
  • 10
    0451683-385 HOUSING, REAR AXLE, SILVER
    HOUSING, REAR AXLE, SILVER
  • 11
    0453706 NUT-FLANGE, HEX
    NUT-FLANGE, HEX
  • 12
    0453707 BOLT
    BOLT
  • 13
    0453345 COVER-SPROCKET, REAR
    COVER-SPROCKET, REAR
  • 14
    0452198 WASHER-FLAT
    WASHER-FLAT
  • 15
    0452030 BOLT-HEX, 14, WASHER, NYLOCK
    BOLT-HEX, 14, WASHER, NYLOCK
  • 16
    0450430 SEAL-OIL
    SEAL-OIL
  • 17
    0454032 BEARING
    BEARING
  • 18
    0450428 TUBE, SPACER 42810-131-000
    TUBE, SPACER 42810-131-000
  • 19
    0450881 NUT-LOCK, NYLON
    NUT-LOCK, NYLON
  • 20
    0450440 PLATE, REAR BRAKE
    PLATE, REAR BRAKE
  • 21
    0450452 BOLT, HEX
    BOLT, HEX
  • 22
    0450854 SHAFT-FIX, RR BRK
    SHAFT-FIX, RR BRK
  • 23
    0450434 SHOE, REAR BRAKE
    SHOE, REAR BRAKE
  • 24
    0450442 RUBBER, PROTECTIVE
    RUBBER, PROTECTIVE
  • 25
    0450441 DRUM, REAR BRAKE
    DRUM, REAR BRAKE
