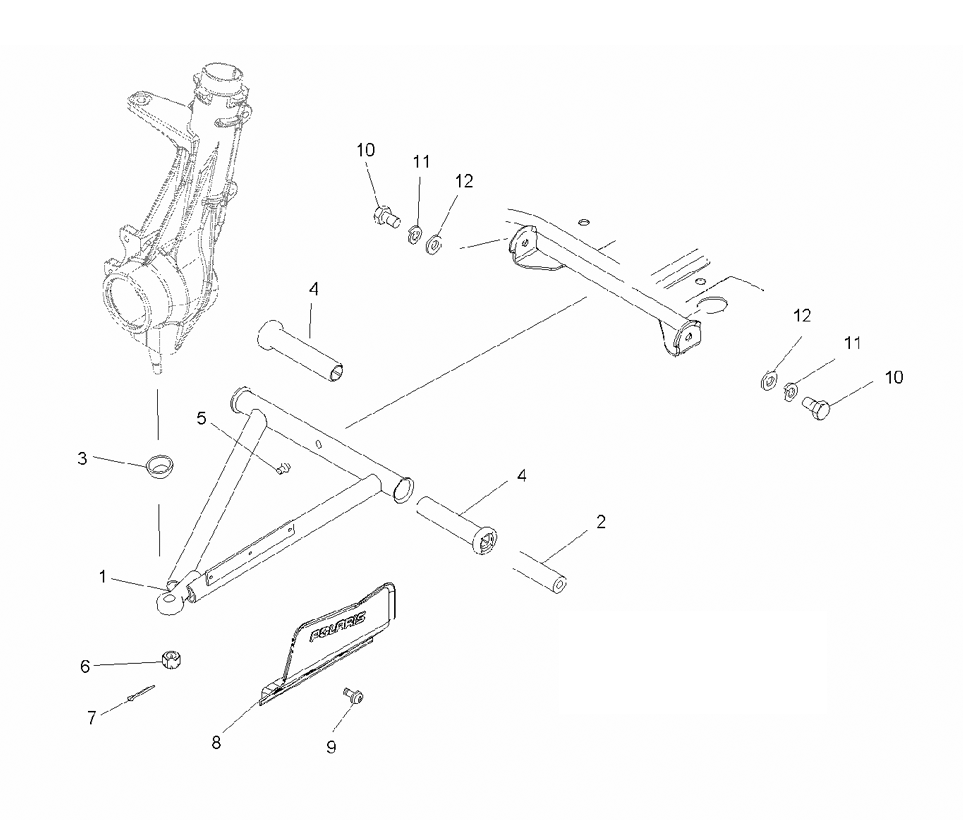

SUSPENSION - A-ARM/STRUT - MOUNTING для Polaris SPORTSMAN 800 HO EFI (MN76AF) (BOARDWALK BLUE) - 2008 года выпуска
-
№АртикулНазвание
-
12202865 KIT-A-FRAME, LEFT HAND (1542025) [INCL. 2,4,5,7,10,11,12]KIT-A-FRAME, LEFT HAND (1542025) [INCL. 2,4,5,7,10,11,12]
-
12202866 KIT-A-FRAME, RIGHT HAND (1542026) [INCL. 2,4,5,7,10,11,12]KIT-A-FRAME, RIGHT HAND (1542026) [INCL. 2,4,5,7,10,11,12]
-
25133806 SHAFT-A-ARMSHAFT-A-ARM
-
35412658 BOOT-BALLJOINT, GREASELESS, STRTBOOT-BALLJOINT, GREASELESS, STRT
-
45434551 BUSHING-A-ARM, LONG, BLACKBUSHING-A-ARM, LONG, BLACK
-
57080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
-
67542438 NUT, CASTLENUT, CASTLE
-
77661203 PIN, COTTERPIN, COTTER
-
85435028-070 SHIELD-CV, FRONT, BASIC, LEFT HAND, BLACKSHIELD-CV, FRONT, BASIC, LEFT HAND, BLACK
-
85435029-070 SHIELD-CV, FRONT, BASIC, RIGHT HAND, BLACKSHIELD-CV, FRONT, BASIC, RIGHT HAND, BLACK
-
97512084 SCREWSCREW
-
107512492 SCREWSCREW
-
117552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
127555832 WASHERWASHER
