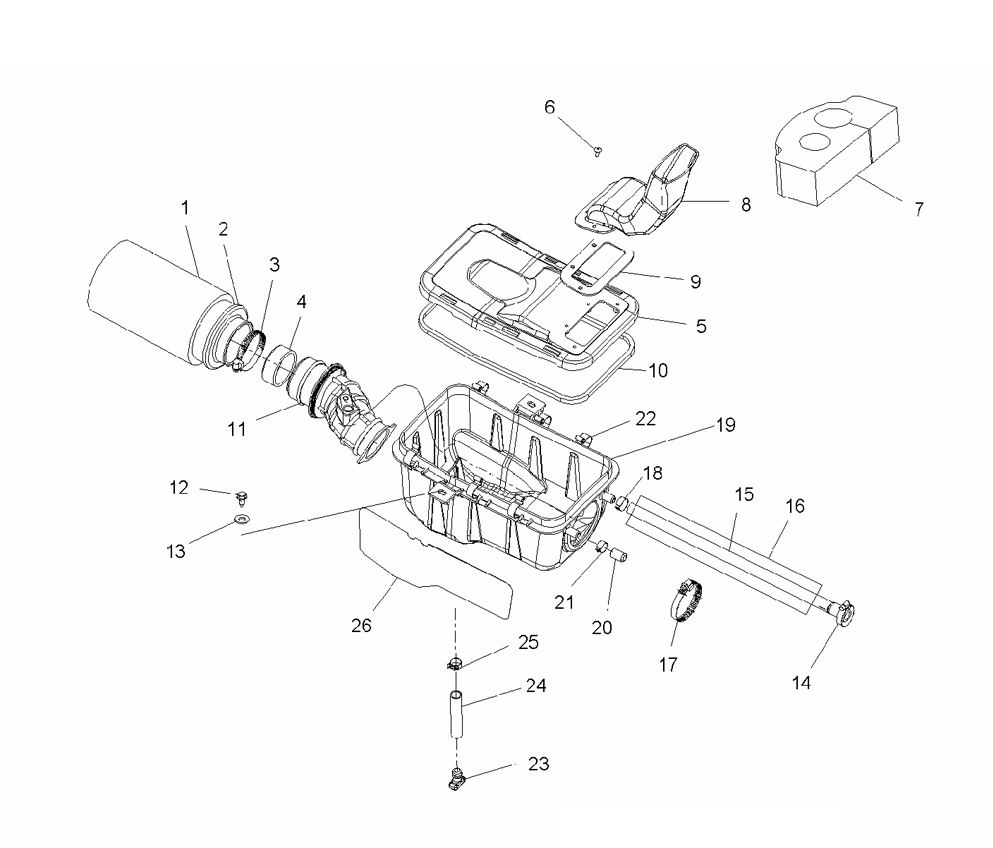

AIR INTAKE SYSTEM для Polaris SPORTSMAN 800 HO EFI (MN76AF) (BOARDWALK BLUE) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    5811633 FILTER, PRECLEAN, SLEEVE
    FILTER, PRECLEAN, SLEEVE
  • 2
    7080595 FILTER, AIR
    FILTER, AIR
  • 3
    7080707 CLAMP, BAND, NARROW
    CLAMP, BAND, NARROW
  • 4
    5433847 SLEEVE-CARB, INNER
    SLEEVE-CARB, INNER
  • 5
    5432868 COVER, AIRBOX
    COVER, AIRBOX
  • 6
    7517317 SCREW
    SCREW
  • 7
    5812773 SEAL-FOAM, LARGE INTAKE
    SEAL-FOAM, LARGE INTAKE
  • 8
    5436969 DUCT-AIR INTAKE, LARGE
    DUCT-AIR INTAKE, LARGE
  • 9
    5411422 GASKET, INTAKE
    GASKET, INTAKE
  • 10
    5812829 SEAL-AIRBOX COVER
    SEAL-AIRBOX COVER
  • 11
    5412985 BOOT-THROTTLE BODY, EFI
    BOOT-THROTTLE BODY, EFI
  • 12
    7515179 SCREW
    SCREW
  • 13
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 14
    7080694 CLAMP, HOSE, SPRING
    CLAMP, HOSE, SPRING
  • 15
    5412615 KIT-BREATHER LINE, SINGLE PC
    KIT-BREATHER LINE, SINGLE PC
  • 16
    8450108-34 SHEATH-REFLECT SLEEVE, 19X34CM
    SHEATH-REFLECT SLEEVE, 19X34CM
  • 17
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 18
    7080699 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    5433678 BOX, AIR
    BOX, AIR
  • 20
    5433396 CAP, END, 406-12, 3/4BLACK
    CAP, END, 406-12, 3/4BLACK
  • 21
    7080534 CLAMP, HOSE
    CLAMP, HOSE
  • 22
    5242044 CLIP
    CLIP
  • 23
    5435299 PLUG-TRAP
    PLUG-TRAP
  • 24
    8450059-150 FUEL LINE
    FUEL LINE
  • 25
    7080650 CLAMP, HOSE
    CLAMP, HOSE
  • 26
    5813042 FOIL-AIRBOX, 10.75 X 5.60
    FOIL-AIRBOX, 10.75 X 5.60
