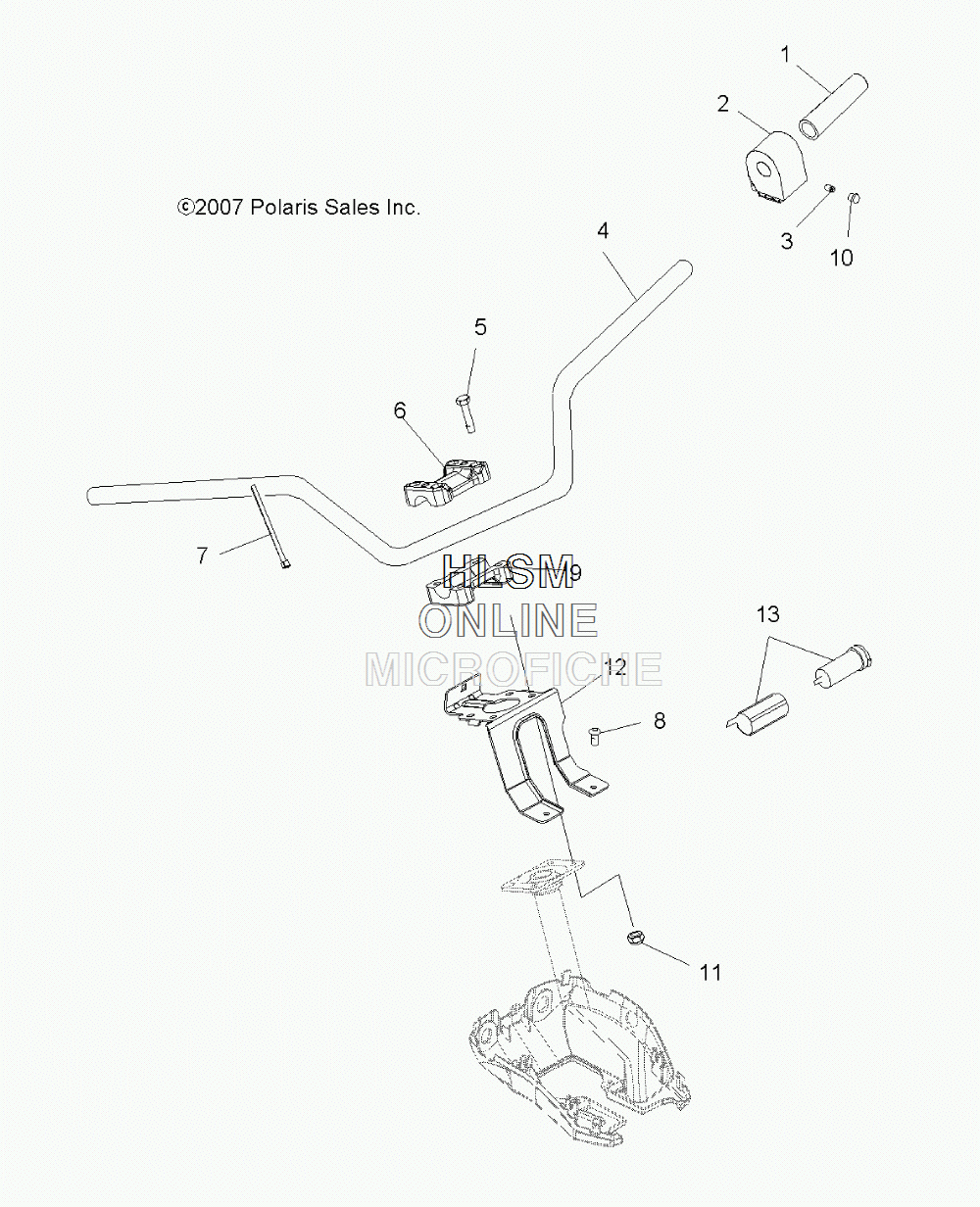

HANDLEBAR - CONTROL ASSY. для Polaris SPORTSMAN 500 EFI SCANDANAVIAN (MH50SQ) (NBU CAMO) - 2008 года выпуска`
-
№АртикулНазвание
-
15412900-070 GRIP, HANDLEBAR (BLACK)GRIP, HANDLEBAR (BLACK)
-
24011835 CONTROL, LEFT HAND, HI/LO/OFFCONTROL, LEFT HAND, HI/LO/OFF
-
37517625 SCREW, SETSCREW, SET
-
45244581-067 TUBE, HANDLEBAR (BLACK)TUBE, HANDLEBAR (BLACK)
-
57515189 SCREWSCREW
-
65631972 BLOCK, HANDLEBAR, PEGGEDBLOCK, HANDLEBAR, PEGGED
-
77080138 CABLE TIECABLE TIE
-
87517317 SCREWSCREW
-
95631973 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
105432952 PLUG, HOLEPLUG, HOLE
-
117542122 NUT, NYLOKNUT, NYLOK
-
125244969-067 BRACKET, POD MOUNTING (BLACK)BRACKET, POD MOUNTING (BLACK)
-
134010638 RECEPTACLE, POD MOUNT, 12VRECEPTACLE, POD MOUNT, 12V
