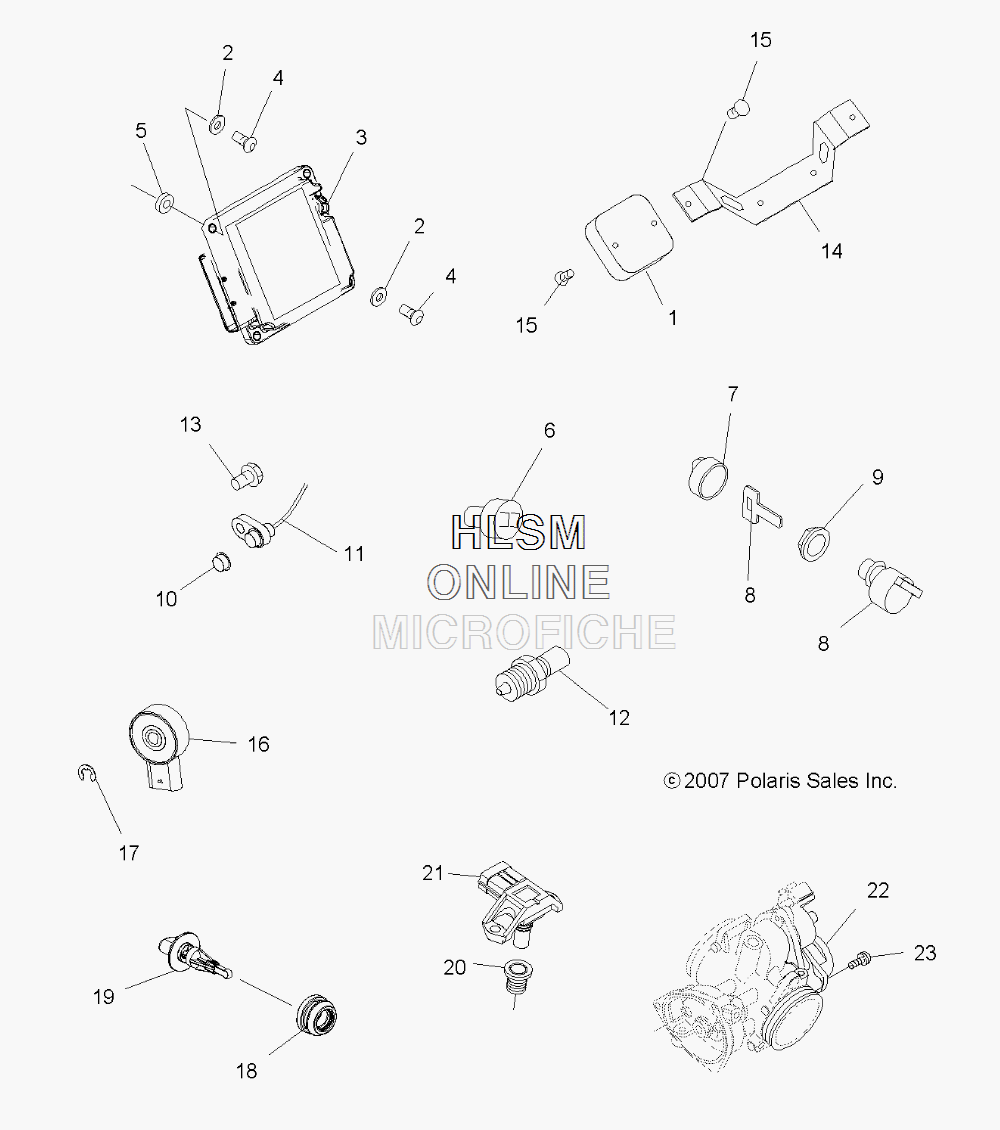

ELECTRICAL - SWITCHES- SENSORS AND ECU для Polaris SPORTSMAN 500 EFI SCANDANAVIAN (MH50SQ) (NBU CAMO) - 2008 года выпуска
-
№АртикулНазвание
-
14012384 REGULATORREGULATOR
-
27555746 WASHERWASHER
-
34012443 ECM, SERVICEECM, SERVICE
-
47518552 SCREWSCREW
-
57555932 WASHER, NYLONWASHER, NYLON
-
64110164 SWITCH (BRAKE LIGHTS)SWITCH (BRAKE LIGHTS)
-
75433534 COVER, KEYCOVER, KEY
-
84012165 SWITCH, KEY, 3 POSITION (INCL. KEY)SWITCH, KEY, 3 POSITION (INCL. KEY)
-
84010278 BLANK, KEY, SERIES 2000, 2100, 6700, 6800 (SEE NOTE)BLANK, KEY, SERIES 2000, 2100, 6700, 6800 (SEE NOTE)
-
84010321 BLANK, KEY, SERIES 2200, 2300, 2700, 2800 (SEE NOTE)BLANK, KEY, SERIES 2200, 2300, 2700, 2800 (SEE NOTE)
-
95433733 NUT, IGNITIONNUT, IGNITION
-
105132382 CAPCAP
-
114011640 SENSOR, HALL EFFECTSENSOR, HALL EFFECT
-
123089892 SENSOR, WATER TEMPERATURESENSOR, WATER TEMPERATURE
-
137517658 SCREWSCREW
-
145248725 BRACKET, VOLTAGE REGULATORBRACKET, VOLTAGE REGULATOR
-
157512024 SCREWSCREW
-
163233835 SWITCH, ROTARYSWITCH, ROTARY
-
173233834 RING, RETAININGRING, RETAINING
-
185436346 GROMMET, AIR TEMP SENSORGROMMET, AIR TEMP SENSOR
-
192410687 SENSOR, AIR TEMPSENSOR, AIR TEMP
-
203089902 GROMMETGROMMET
-
213089895 SENSOR, AIR PRESSURESENSOR, AIR PRESSURE
-
223140173 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
233131628 SCREWSCREW
