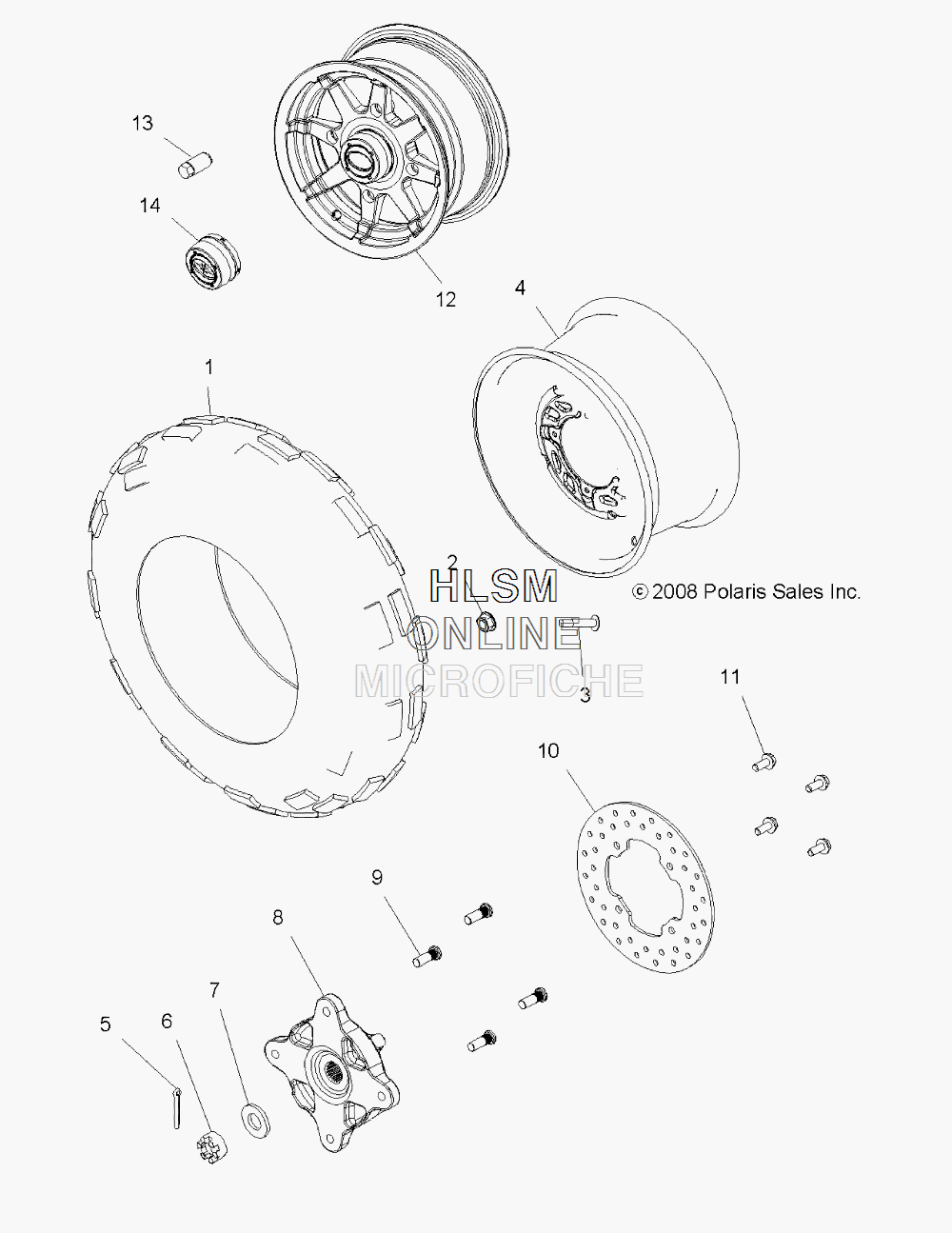

WHEEL - FRONT для Polaris SPORTSMAN 300 4X4 (LH27AW) (TURBO SILVER) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2876084 TIRE, FRONT, 23-7R12 ACT
    TIRE, FRONT, 23-7R12 ACT
  • 2
    7547237 NUT, FLANGE
    NUT, FLANGE
  • 3
    1525017 VALVE
    VALVE
  • 5
    7661402 PIN, COTTER
    PIN, COTTER
  • 6
    7547337 NUT, CASTLE
    NUT, CASTLE
  • 7
    7555796 WASHER, CONE
    WASHER, CONE
  • 8
    5136296 HUB, WHEEL, FRONT
    HUB, WHEEL, FRONT
  • 9
    7518378 STUD 3/8-24X1.38
    STUD 3/8-24X1.38
  • 10
    5248378 DISC, BRAKE, FRONT
    DISC, BRAKE, FRONT
  • 11
    7518643 BOLT, FLANGE
    BOLT, FLANGE
  • 12
    1521106 RIM, FRONT, CAST ALUM
    RIM, FRONT, CAST ALUM
  • 13
    7547309 NUT, WHEEL
    NUT, WHEEL
  • 14
    1521128 CAP, RIM
    CAP, RIM
