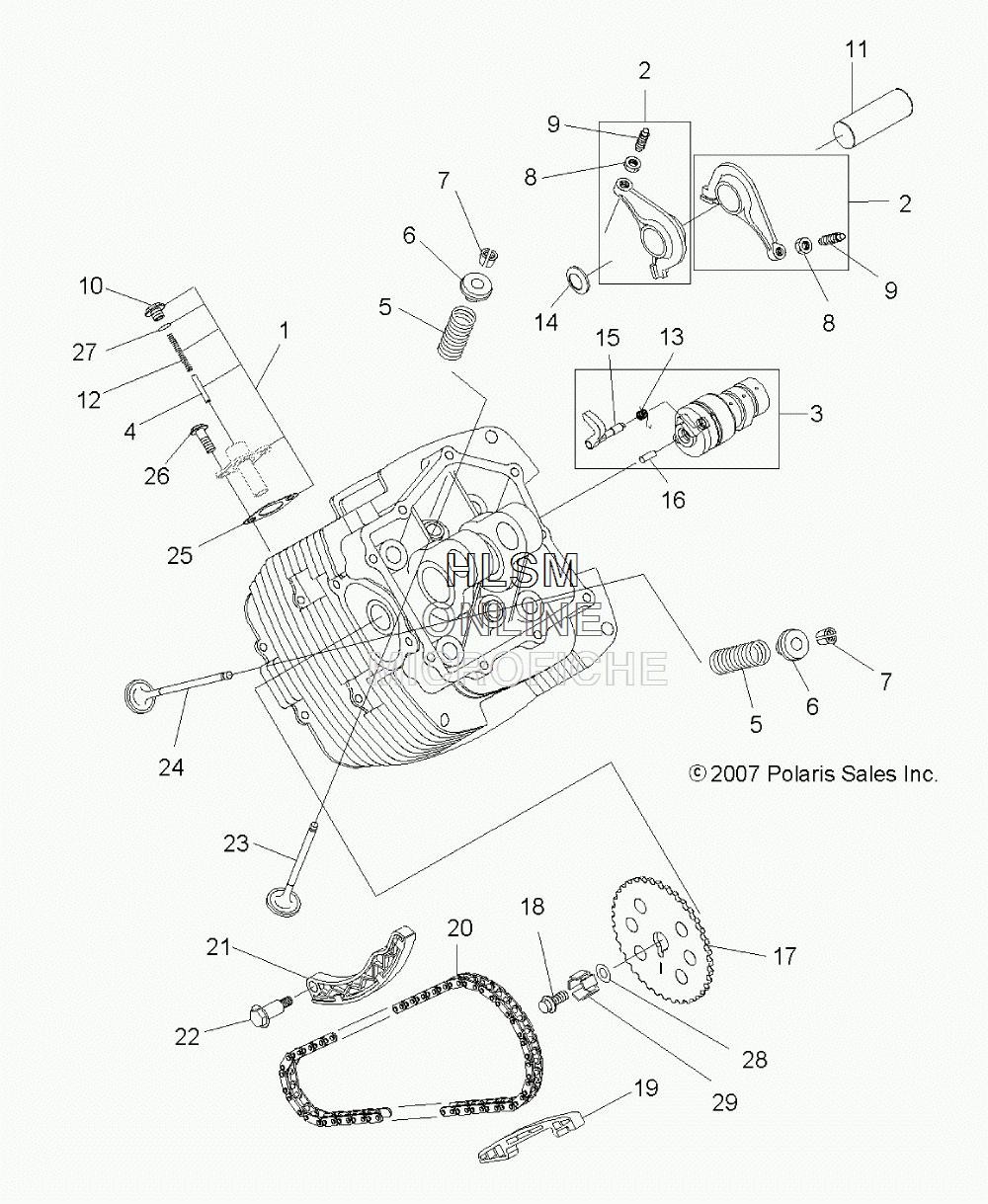

CAMSHAFT W/ VALVE ASSY. для Polaris SPORTSMAN 300 4X4 (LH27AW) (TURBO SILVER) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3086493 ASM., TENSIONER (INCL. 4,10,12,25,27)
    ASM., TENSIONER (INCL. 4,10,12,25,27)
  • 2
    3089833 ASM., ROCKER ARM (INCL. 8,9)
    ASM., ROCKER ARM (INCL. 8,9)
  • 3
    3089828 CAMSHAFT COMPLETE (INCL. 13,15,16)
    CAMSHAFT COMPLETE (INCL. 13,15,16)
  • 4
    3087132 PIN
    PIN
  • 5
    3089831 SPRING, VALVE
    SPRING, VALVE
  • 6
    3087203 RETAINER, VALVE SPRING
    RETAINER, VALVE SPRING
  • 7
    3084908 COLLET, VALVE
    COLLET, VALVE
  • 8
    3088846 NUT
    NUT
  • 9
    3089834 SCREW, ADJUSTING
    SCREW, ADJUSTING
  • 10
    3087129 PLUG
    PLUG
  • 11
    3089832 SHAFT, ROCKER
    SHAFT, ROCKER
  • 12
    3087131 TENSIONER
    TENSIONER
  • 13
    3089830 SPRING, RETURN
    SPRING, RETURN
  • 14
    3085836 WASHER, WAVE
    WASHER, WAVE
  • 15
    3089829 LEVER, RELEASE
    LEVER, RELEASE
  • 16
    3084899 PIN, DOWEL
    PIN, DOWEL
  • 17
    3089835 SPROCKET 2
    SPROCKET 2
  • 18
    3089969 BOLT
    BOLT
  • 19
    3089837 GUIDE, CHAIN
    GUIDE, CHAIN
  • 20
    3089836 CHAIN, TIMING
    CHAIN, TIMING
  • 21
    3089838 LEVER
    LEVER
  • 22
    3089980 BOLT, PIVOT, LEVER
    BOLT, PIVOT, LEVER
  • 23
    3085778 VALVE, INTAKE
    VALVE, INTAKE
  • 24
    3086441 VALVE, EXHAUST
    VALVE, EXHAUST
  • 25
    3086448 GASKET, TENSIONER
    GASKET, TENSIONER
  • 26
    3087150 BOLT, FLANGE
    BOLT, FLANGE
  • 27
    3087130 GASKET
    GASKET
  • 28
    3089970 WASHER
    WASHER
  • 29
    3089975 PLATE
    PLATE
