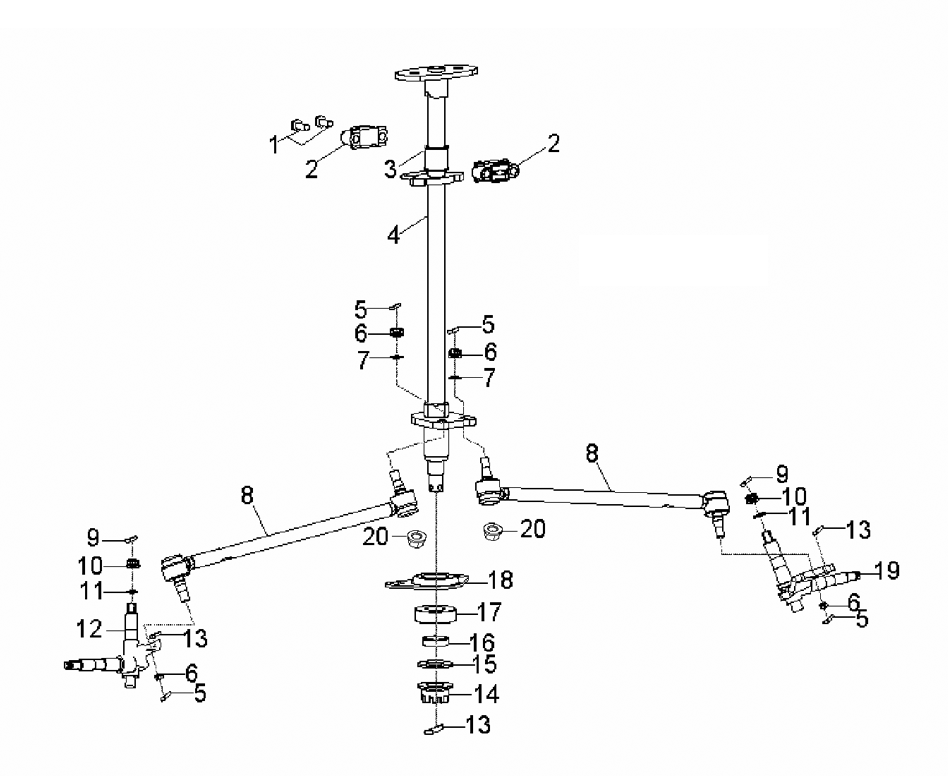

STEERING POST W/TIE RODS для Polaris OUTLAW 90 (KA09AB) (INDY RED) - 2008 года выпуска`
-
№АртикулНазвание
-
10453730 BOLTBOLT
-
20450505 HOLDER, STEERING SHAFTHOLDER, STEERING SHAFT
-
30450499 SLEEVE, STEERING, SHAFTSLEEVE, STEERING, SHAFT
-
40453556-067 POST-STEERING, OUTLAW90, BLACKPOST-STEERING, OUTLAW90, BLACK
-
50453819 COTTER PINCOTTER PIN
-
60453820 NUT-LOCKNUT-LOCK
-
70453809 WASHER-SPRINGWASHER-SPRING
-
80453544 ASM-TIE RODASM-TIE ROD
-
90450719 PIN-COTTERPIN-COTTER
-
100450502 NUT-LOCKNUT-LOCK
-
110453513 WASHER-POST, STEERINGWASHER-POST, STEERING
-
120453554 KNUCKLE-LEFT HANDKNUCKLE-LEFT HAND
-
130450395 PIN-COTTERPIN-COTTER
-
140453502 NUT-CASTLENUT-CASTLE
-
150452671 WASHER-18X35X2.0WASHER-18X35X2.0
-
160452719 SPACER-RINGSPACER-RING
-
170453978 BEARING-BALLBEARING-BALL
-
180453494 FLANGETTE-POST, STEERINGFLANGETTE-POST, STEERING
-
190453555 KNUCKLE-RIGHT HANDKNUCKLE-RIGHT HAND
-
200450882 NUT-LOCK, NYLON 90350-10000-UCNUT-LOCK, NYLON 90350-10000-UC
