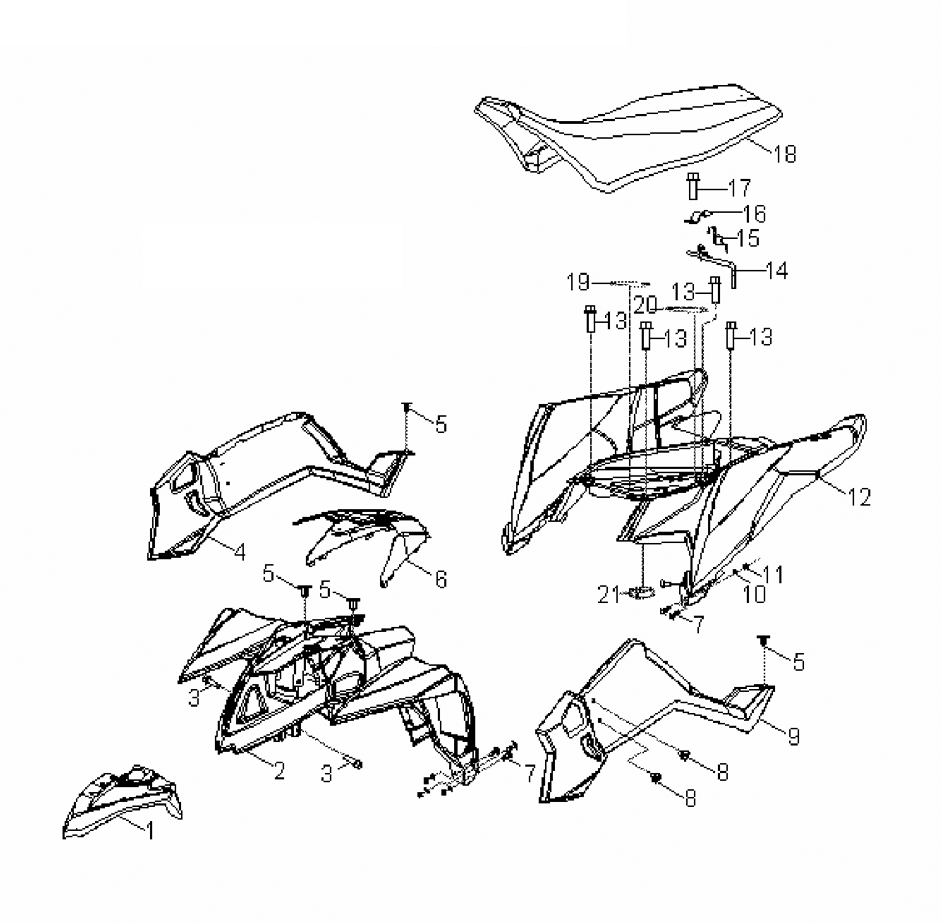

CAB - SEAT для Polaris OUTLAW 90 (KA09AB) (INDY RED) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0453326-133 COVER-FRONT, WHITE
    COVER-FRONT, WHITE
  • 2
    0453321-293 CAB-FRT, SPORT, RED
    CAB-FRT, SPORT, RED
  • 3
    0450824 BOLT-W/WSHR, HEX
    BOLT-W/WSHR, HEX
  • 4
    0453324-133 PANEL-SIDE, RIGHT HAND, WHITE
    PANEL-SIDE, RIGHT HAND, WHITE
  • 5
    0451076 RIVET, PLASTIC
    RIVET, PLASTIC
  • 6
    0453325-133 COVER-FUEL TANK, WHITE
    COVER-FUEL TANK, WHITE
  • 7
    0450622 BOLT-PHILLIPS
    BOLT-PHILLIPS
  • 8
    7661855 RIVET-TUFLOK, .315-.325X.787
    RIVET-TUFLOK, .315-.325X.787
  • 9
    0453323-133 PANEL-SIDE, LEFT HAND, WHITE
    PANEL-SIDE, LEFT HAND, WHITE
  • 10
    0450710 WASHER-PLAIN
    WASHER-PLAIN
  • 11
    0450741 NUT, LOCK
    NUT, LOCK
  • 12
    0453941-293 ASM-CAB, REAR, OUTLW, W/DECAL, RED
    ASM-CAB, REAR, OUTLW, W/DECAL, RED
  • 13
    0450340 BOLT-HEX
    BOLT-HEX
  • 14
    0453688 LATCH-SEAT, OUTLAW
    LATCH-SEAT, OUTLAW
  • 15
    0453689 SPRING-SEAT LATCH, OUTLAW
    SPRING-SEAT LATCH, OUTLAW
  • 16
    0453690 RETAINER-SEAT LATCH, OUTLAW
    RETAINER-SEAT LATCH, OUTLAW
  • 17
    0451703 SCREW, TAPPING
    SCREW, TAPPING
  • 18
    0453327-070 SEAT-BASE W/FOAM, BLACK
    SEAT-BASE W/FOAM, BLACK
  • 19
    0453686 O'RING
    O'RING
  • 20
    0453687 O'RING
    O'RING
  • 21
    0450346 FOAM, BATTERY PAD
    FOAM, BATTERY PAD
