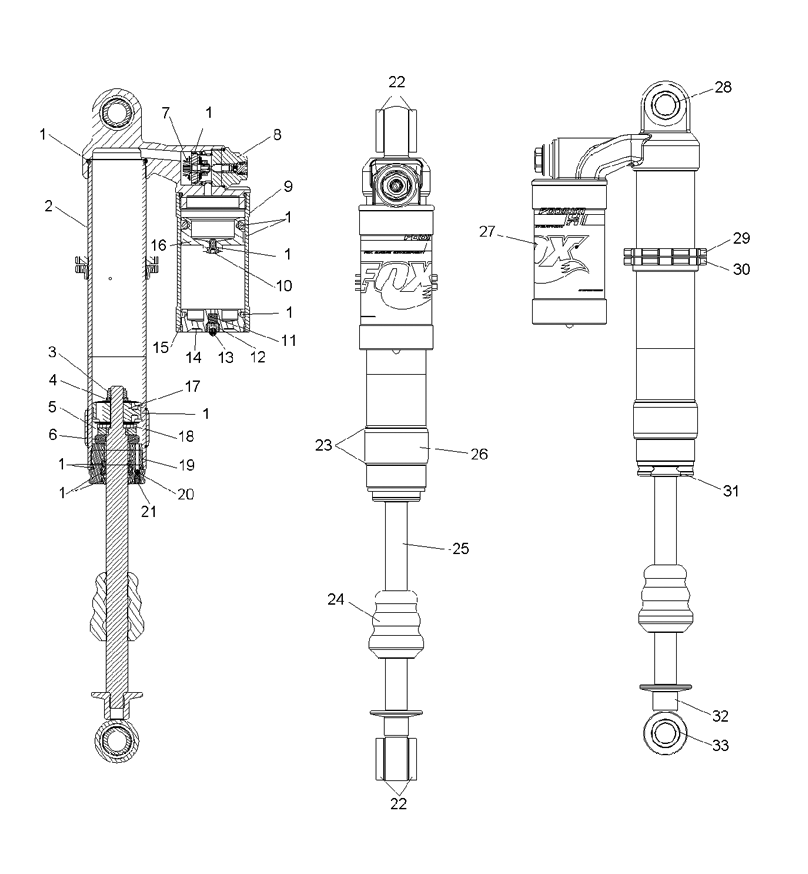

SUSPENSION - FRONT FOX SHOCK для Polaris OUTLAW 525 S (GJ52AC) (STEALTH BLACK) - 2008 года выпуска

  • №
    Артикул
    Название
  • -
    7043359 SHOCK-FRONT
    SHOCK-FRONT
  • 1
    1500742 KIT-REBUILD 803-00-128
    KIT-REBUILD 803-00-128
  • 2
    1500793 BODY 204-23-040
    BODY 204-23-040
  • 3
    1500016 NUT, LOCK
    NUT, LOCK
  • 4
    1500015 PLATE, BACKUP
    PLATE, BACKUP
  • 5
    1500074 BUMPER, RUBBER
    BUMPER, RUBBER
  • 6
    1500495 PISTON, .082 BLEED
    PISTON, .082 BLEED
  • 7
    1500627 PISTON-CD CONC.ADJ.
    PISTON-CD CONC.ADJ.
  • 8
    1500617 CARTRIDGE-CD SINGLE ADJ.
    CARTRIDGE-CD SINGLE ADJ.
  • 9
    1500633 RESERVOIR
    RESERVOIR
  • 10
    1500161 SCREW/O-RING ASM.
    SCREW/O-RING ASM.
  • 11
    1500724 PELLET 010-00-000
    PELLET 010-00-000
  • 12
    1500723 SCREW-SET 010-00-017
    SCREW-SET 010-00-017
  • 13
    1500722 BALL 010-01-007
    BALL 010-01-007
  • 14
    1500744 END CAP, RESERVOIR 226-00-041
    END CAP, RESERVOIR 226-00-041
  • 15
    1500236 RING, RETAINING
    RING, RETAINING
  • 16
    1500743 PISTON, FLOATING 223-00-009
    PISTON, FLOATING 223-00-009
  • 17
    1500624 PISTON .098
    PISTON .098
  • 18
    1500017 PLATE, TOP OUT
    PLATE, TOP OUT
  • 19
    1500629 ASM-BEARING
    ASM-BEARING
  • 20
    1500071 BALL, (FOX)
    BALL, (FOX)
  • 21
    1500070 SCREW
    SCREW
  • 22
    1500103 BSG-EYELET
    BSG-EYELET
  • 23
    1500607 WIRE RING
    WIRE RING
  • 24
    1500628 BUMPER, B/O
    BUMPER, B/O
  • 25
    1500794 SHAFT 229-07-025
    SHAFT 229-07-025
  • 26
    1500585 GUIDE-SPRING
    GUIDE-SPRING
  • 27
    1500790 FOX DECAL
    FOX DECAL
  • 28
    1500497 SLEEVE, .57X.81X1.15
    SLEEVE, .57X.81X1.15
  • 29
    1500792 RING-PRELOAD, JAM NUT
    RING-PRELOAD, JAM NUT
  • 30
    1500791 RING-PRELOAD
    RING-PRELOAD
  • 31
    1500750 BEARING HOUSING 203-04-003
    BEARING HOUSING 203-04-003
  • 32
    1500013 EYELET
    EYELET
  • 33
    1500747 SLEEVE 213-01-101
    SLEEVE 213-01-101
