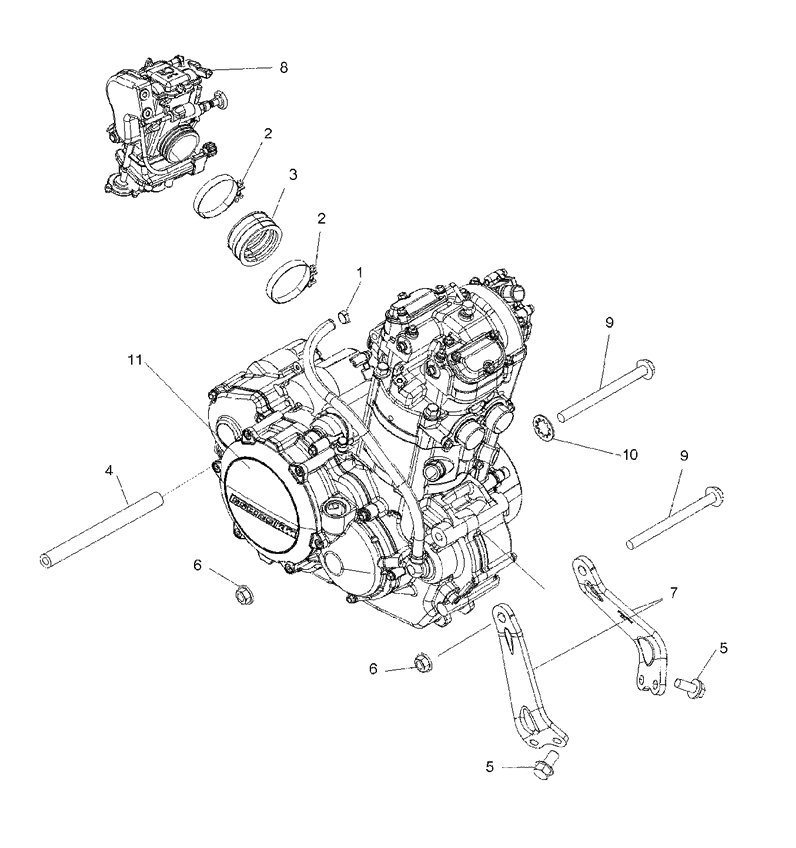

ENGINE - MOUNTING для Polaris OUTLAW 525 S (GJ52AC) (STEALTH BLACK) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    7080699 CLAMP, HOSE
    CLAMP, HOSE
  • 2
    7080511 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 3
    5413231 BOOT-INTAKE, 525ATV
    BOOT-INTAKE, 525ATV
  • 4
    5134957 BUSHING-MOTOR MOUNT
    BUSHING-MOTOR MOUNT
  • 5
    7518514 BOLT-M8X1.25X25, HXFLG-OLIVE D
    BOLT-M8X1.25X25, HXFLG-OLIVE D
  • 6
    7547333 NUT-M10X1.25, FLG, NYLOC-OLIVE D
    NUT-M10X1.25, FLG, NYLOC-OLIVE D
  • 7
    5251131 BRKT-MOUNT, ENGINE, LEFT HAND
    BRKT-MOUNT, ENGINE, LEFT HAND
  • 7
    5251132 MOUNT-ENGINE, RIGHT HAND
    MOUNT-ENGINE, RIGHT HAND
  • 8
    1203641 ASM-CARB, KEIHIN FCR, 3900S
    ASM-CARB, KEIHIN FCR, 3900S
  • 9
    7518665 BOLT-M10X1.25X130, HXFLG-OLIVED
    BOLT-M10X1.25X130, HXFLG-OLIVED
  • 10
    7575202 WASHER LOCK
    WASHER LOCK
  • 11
    1203608 COVER
    COVER
