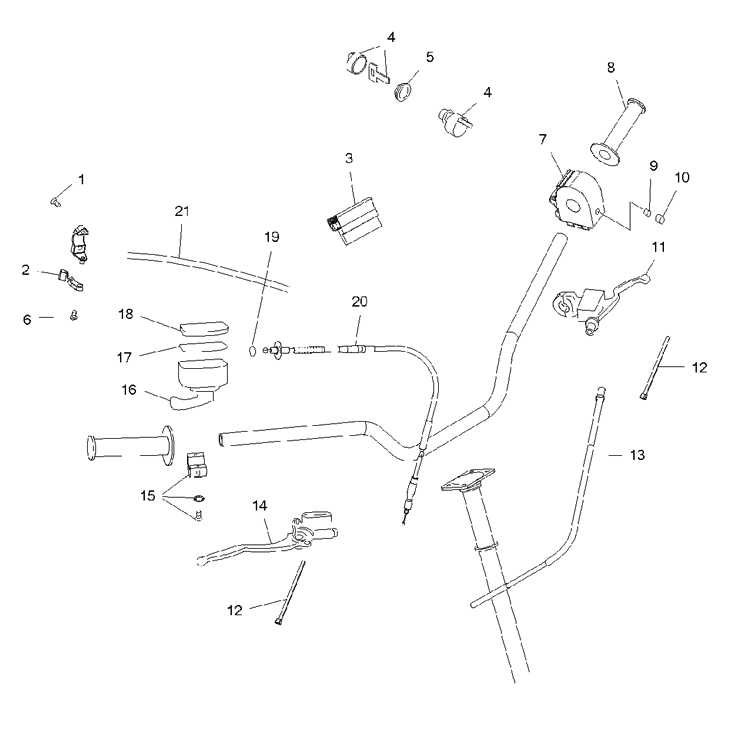

HANDLEBAR - CONTROL ASSY. для Polaris OUTLAW 525 IRS (GP52AA) (INDY RED) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2203251 SCREW-RESERVOIR CLAMP
    SCREW-RESERVOIR CLAMP
  • 2
    5135435 LEVER-REVERSE(MACH)
    LEVER-REVERSE(MACH)
  • 3
    4010459 PANEL-INDICATOR,SVC,STD PVT
    PANEL-INDICATOR,SVC,STD PVT
  • 4
    4110264 SWITCH-IGNITION,MT SLV (INCL. 5, KEY AND COVER)
    SWITCH-IGNITION,MT SLV (INCL. 5, KEY AND COVER)
  • 4
    4010278 KEY BLANK (20/21/67/68) SERIES (SEE NOTE)
    KEY BLANK (20/21/67/68) SERIES (SEE NOTE)
  • 5
    5433733 NUT,IGNITION SWITCH
    NUT,IGNITION SWITCH
  • 6
    7518647 BOLT-M6X1.0X8,PH/TX,LX-OLIVE D
    BOLT-M6X1.0X8,PH/TX,LX-OLIVE D
  • 7
    4011442 SWITCH-HANDLEBAR,H/L/O,START
    SWITCH-HANDLEBAR,H/L/O,START
  • 8
    5436089-070 GRIP-HANDLEBAR,50 DUR.BLACK
    GRIP-HANDLEBAR,50 DUR.BLACK
  • 9
    7517625 SCREW,SET
    SCREW,SET
  • 10
    5432952 PLUG,HOLE
    PLUG,HOLE
  • 11
    2010292 ASM-CLUTCH LEVER, HYDRAULIC
    ASM-CLUTCH LEVER, HYDRAULIC
  • 11
    2010328 SWITCH-CLUTCH,MAGURA
    SWITCH-CLUTCH,MAGURA
  • 12
    7080138 CABLE TIE
    CABLE TIE
  • 13
    2010327 LINE-HYDRAULIC CLUTCH,MAGURA
    LINE-HYDRAULIC CLUTCH,MAGURA
  • 14
    1911218 ASM-MASTER CYL.W/REV.BRKT,14MM
    ASM-MASTER CYL.W/REV.BRKT,14MM
  • 15
    2010191 ASM-THROTTLE CLAMP
    ASM-THROTTLE CLAMP
  • 16
    2010204 ASM-THROTTLE CONTROL,HOBBS
    ASM-THROTTLE CONTROL,HOBBS
  • 17
    5411439 O-RING
    O-RING
  • 18
    5434113 COVER-THROTTLE CONTROL
    COVER-THROTTLE CONTROL
  • 19
    5410193 O RING
    O RING
  • 20
    7081390 CABLE-THROTTLE
    CABLE-THROTTLE
  • 21
    7081389 CABLE-REVERSE
    CABLE-REVERSE
