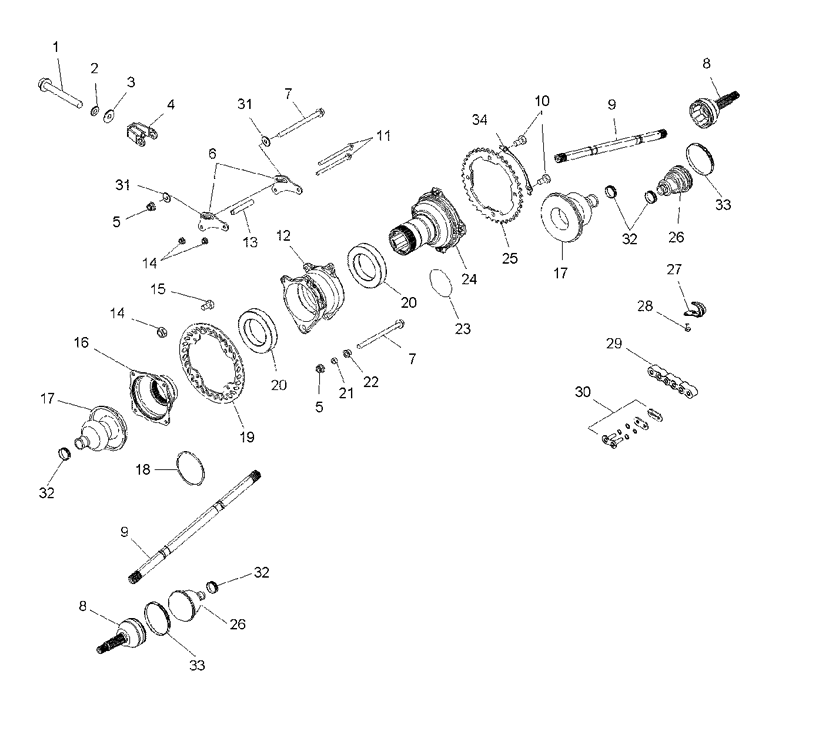

DRIVESHAFT - REAR для Polaris OUTLAW 525 IRS (GP52AA) (INDY RED) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1521150 ASM-DRIVESHAFT,REAR (INCL. 8,9,12,16-18,20,23,24,26)
    ASM-DRIVESHAFT,REAR (INCL. 8,9,12,16-18,20,23,24,26)
  • 1
    7518610 BOLT-M10X1.25X100,HXFLG,OLV D
    BOLT-M10X1.25X100,HXFLG,OLV D
  • 2
    7556378 WASHER-M10,SPRING LOCK-OLIVE D
    WASHER-M10,SPRING LOCK-OLIVE D
  • 3
    5334734 BUSHING-PIVOT ADJUSTOR
    BUSHING-PIVOT ADJUSTOR
  • 4
    1015637 WELD-PIVOT CLEVIS
    WELD-PIVOT CLEVIS
  • 5
    7547333 NUT-M10X1.25,FLG,NYLOC-OLIVE D
    NUT-M10X1.25,FLG,NYLOC-OLIVE D
  • 6
    5249808 BRKT-PIVOT MOUNT PLATE
    BRKT-PIVOT MOUNT PLATE
  • 7
    7518665 BOLT-M10X1.25X130,HXFLG-OLIVED
    BOLT-M10X1.25X130,HXFLG-OLIVED
  • 8
    1332429 JOINT-CV,NEAPCO,SVC
    JOINT-CV,NEAPCO,SVC
  • 9
    1332442 SHAFT-DRIVE,NEAPCO,SVC
    SHAFT-DRIVE,NEAPCO,SVC
  • 10
    7519006 BOLT
    BOLT
  • 11
    7518557 BOLT-M8X1.25X120,HXFLG-OLIVE D
    BOLT-M8X1.25X120,HXFLG-OLIVE D
  • 12
    5134955 JOINT
    JOINT
  • 13
    5335067 SPACER-PIVOT MOUNT,PLTD
    SPACER-PIVOT MOUNT,PLTD
  • 14
    7547332 NUT-M8X1.25,FLG,NYLOC-OLIVE D
    NUT-M8X1.25,FLG,NYLOC-OLIVE D
  • 15
    7518450 BOLT-M8X20-1.25 HX HD FLG
    BOLT-M8X20-1.25 HX HD FLG
  • 16
    5134956 HUB-REAR DISC(MACH)
    HUB-REAR DISC(MACH)
  • 17
    2203135 KIT-BOOT REPLACEMENT,INNER
    KIT-BOOT REPLACEMENT,INNER
  • 18
    7710574 RING-RETAINING,2.475
    RING-RETAINING,2.475
  • 19
    5249138 DISC-BRAKE,9.0'' O.D.
    DISC-BRAKE,9.0'' O.D.
  • 20
    3514548 BEARING-BALL,6014
    BEARING-BALL,6014
  • 21
    5334873 SLEEVE-FLOAT,PIVOT HOUSING
    SLEEVE-FLOAT,PIVOT HOUSING
  • 22
    5334874 INSERT-PIVOT HOUSING
    INSERT-PIVOT HOUSING
  • 23
    5413072 O RING,2.64X.07
    O RING,2.64X.07
  • 24
    2203136 KIT-HUB,SPROCKET
    KIT-HUB,SPROCKET
  • 25
    3222138 SPROCKET
    SPROCKET
  • 26
    2201015 KIT,CV-BOOT,FRONT
    KIT,CV-BOOT,FRONT
  • 27
    5436479 GUIDE-CHAIN
    GUIDE-CHAIN
  • 28
    7512084 SCREW
    SCREW
  • 29
    3221193-096 CHAIN-520 ORD4,O-RING,96 PTCH
    CHAIN-520 ORD4,O-RING,96 PTCH
  • 30
    3221192 LINK-CONNECTOR,PRESS,520,ORD4
    LINK-CONNECTOR,PRESS,520,ORD4
  • 31
    7556099 WASHER
    WASHER
  • 32
    3260123 CLAMP, BAND
    CLAMP, BAND
  • 33
    3260121 CLAMP, BAND
    CLAMP, BAND
  • 34
    5252256 PLATE
    PLATE
