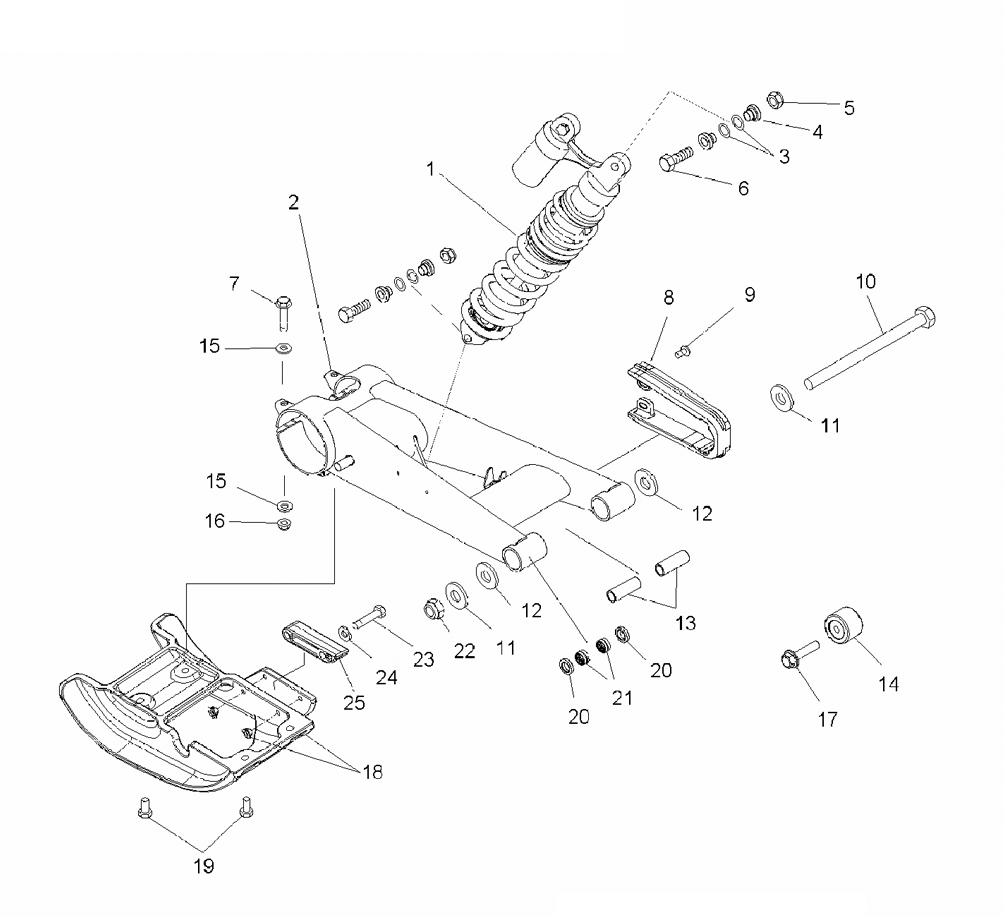

SUSPENSION - SWING ARM для Polaris OUTLAW 450 S (GJ45AA) (INDY RED) - 2008 года выпуска`
-
№АртикулНазвание
-
21542376-385 ASM-SWING ARM, SLVR [INCL. 13,20,21]ASM-SWING ARM, SLVR [INCL. 13,20,21]
-
35412290 O-RING, 0.600IDX.210O-RING, 0.600IDX.210
-
45334195 BUSHING-REDUCER, .500 TO .4375BUSHING-REDUCER, .500 TO .4375
-
57547066 NUT-7/16-20, NYLOK, YNUT-7/16-20, NYLOK, Y
-
67518207 BOLT-7/16-20X2.25, HXHDCP, G5, YBOLT-7/16-20X2.25, HXHDCP, G5, Y
-
77518561 BOLT-M10X1.25X70, HXFLG-OLIVE DBOLT-M10X1.25X70, HXFLG-OLIVE D
-
85437259 SLIDER-CHAINSLIDER-CHAIN
-
97518196 SCR-10-24X3/4 PH/TX/TRI-SEMS YSCR-10-24X3/4 PH/TX/TRI-SEMS Y
-
107518810 BOLT-SWINGARMBOLT-SWINGARM
-
117556264 WASHER-9/16, HARDENEDWASHER-9/16, HARDENED
-
125434754 BUSHING-THRUST WASHERBUSHING-THRUST WASHER
-
135135991 SPACER-SWING ARMSPACER-SWING ARM
-
141590360 ASM-CHAIN ROLLERASM-CHAIN ROLLER
-
157555832 WASHERWASHER
-
167547333 NUT-M10X1.25, FLG, NYLOC-OLIVE DNUT-M10X1.25, FLG, NYLOC-OLIVE D
-
177518469 BOLT-M8X1.25X35, HX HD FLGBOLT-M8X1.25X35, HX HD FLG
-
181542101 ASM-GUARD, SWINGARMASM-GUARD, SWINGARM
-
187547277 NUT-1/4-20X.31-TEE-ZNUT-1/4-20X.31-TEE-Z
-
197518181 SCR-5/16-18X3/4, FLGHX, 65, LK-YSCR-5/16-18X3/4, FLGHX, 65, LK-Y
-
203610104 SEAL-.875X1.125X20SEAL-.875X1.125X20
-
213514473 BEARING-NEEDLE, .875X1.125X.750BEARING-NEEDLE, .875X1.125X.750
-
227518299 NUT-FLANGE, M14X1.50 -DNUT-FLANGE, M14X1.50 -D
-
237510006 BOLT-1/4-20X2 1/4-HX/CP, LK, G5YBOLT-1/4-20X2 1/4-HX/CP, LK, G5Y
-
247558301 WASHER, FLATWASHER, FLAT
-
255435411 GUIDE-CHAINGUIDE-CHAIN
