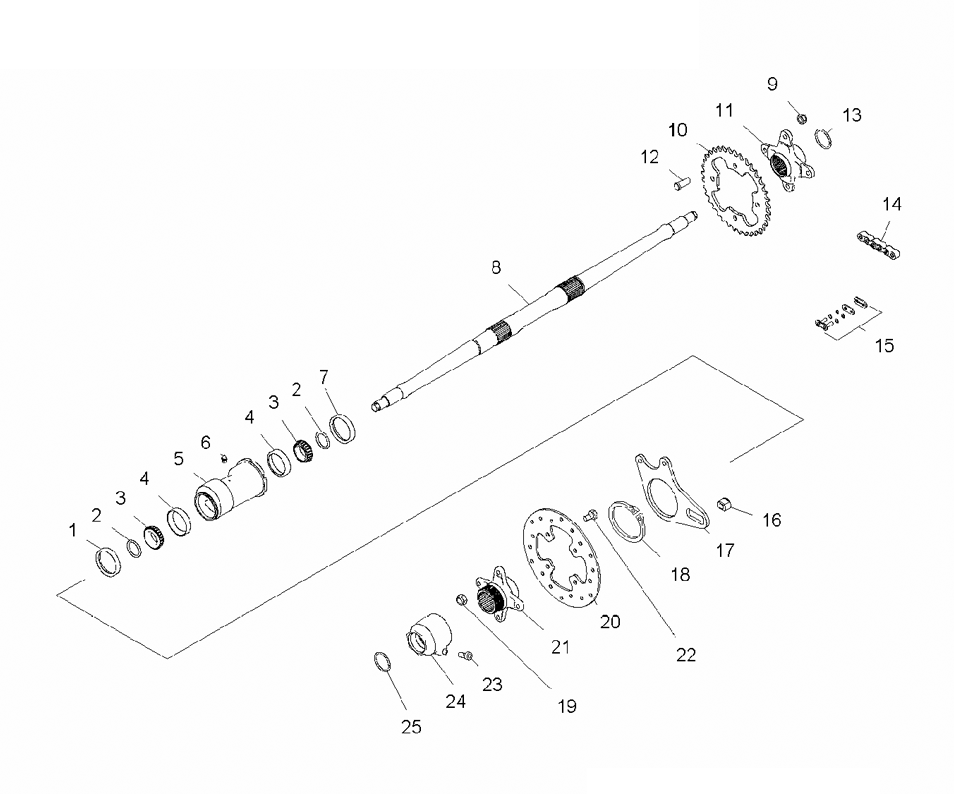

AXLE - REAR W/ HOUSING для Polaris OUTLAW 450 S (GJ45AA) (INDY RED) - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3610105 SEAL-DOUBLE LIP.2.00X2.75
    SEAL-DOUBLE LIP.2.00X2.75
  • 2
    5412220 O-RING, 1.549 ID X .103
    O-RING, 1.549 ID X .103
  • 3
    3514393 BEARING-CONE, TAPER, TIM, S32008X
    BEARING-CONE, TAPER, TIM, S32008X
  • 4
    3514394 BEARING-CUP, TAPER, TIM, Y32008X
    BEARING-CUP, TAPER, TIM, Y32008X
  • 5
    5133248 HOUSING-AXLE, REAR(MACH)
    HOUSING-AXLE, REAR(MACH)
  • 6
    7080306 FITTING, LUBE.W/BALL CK.
    FITTING, LUBE.W/BALL CK.
  • 7
    3610089 SEAL-LIP, 2.00X2.75X.25
    SEAL-LIP, 2.00X2.75X.25
  • 8
    5133722 AXLE-REAR, 4340 CHROMOLY
    AXLE-REAR, 4340 CHROMOLY
  • 9
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 10
    3222152 SPROCKET-38T, REAR, Y
    SPROCKET-38T, REAR, Y
  • 11
    5130001 HUB-SPROCKET(MACH)
    HUB-SPROCKET(MACH)
  • 12
    7512405 BOLT
    BOLT
  • 13
    7670147 RING-RETAINING, 1.522 0D X.140
    RING-RETAINING, 1.522 0D X.140
  • 14
    3221193-098 CHAIN-520 ORD4, O-RING, 98 PTCH
    CHAIN-520 ORD4, O-RING, 98 PTCH
  • 15
    3221192 LINK-CONNECTOR, PRESS, 520, ORD4
    LINK-CONNECTOR, PRESS, 520, ORD4
  • 16
    5136470 INSERT
    INSERT
  • 17
    5245939 MOUNT-CALIPER, AXLE
    MOUNT-CALIPER, AXLE
  • 18
    7710516 RING-RETAINING, EXTERNAL, 3.125
    RING-RETAINING, EXTERNAL, 3.125
  • 19
    7547332 NUT-M8X1.25, FLG, NYLOC-OLIVE D
    NUT-M8X1.25, FLG, NYLOC-OLIVE D
  • 20
    5246155 DISC-BRAKE, 7.75 OD
    DISC-BRAKE, 7.75 OD
  • 21
    5133340 HUB-REAR DISC (MACH) 4''
    HUB-REAR DISC (MACH) 4''
  • 22
    7518514 BOLT-M8X1.25X25, HXFLG-OLIVE D
    BOLT-M8X1.25X25, HXFLG-OLIVE D
  • 23
    7515102 SCREW
    SCREW
  • 24
    5133428 NUT-AXLE
    NUT-AXLE
  • 25
    7710405 RING, SNAP
    RING, SNAP
