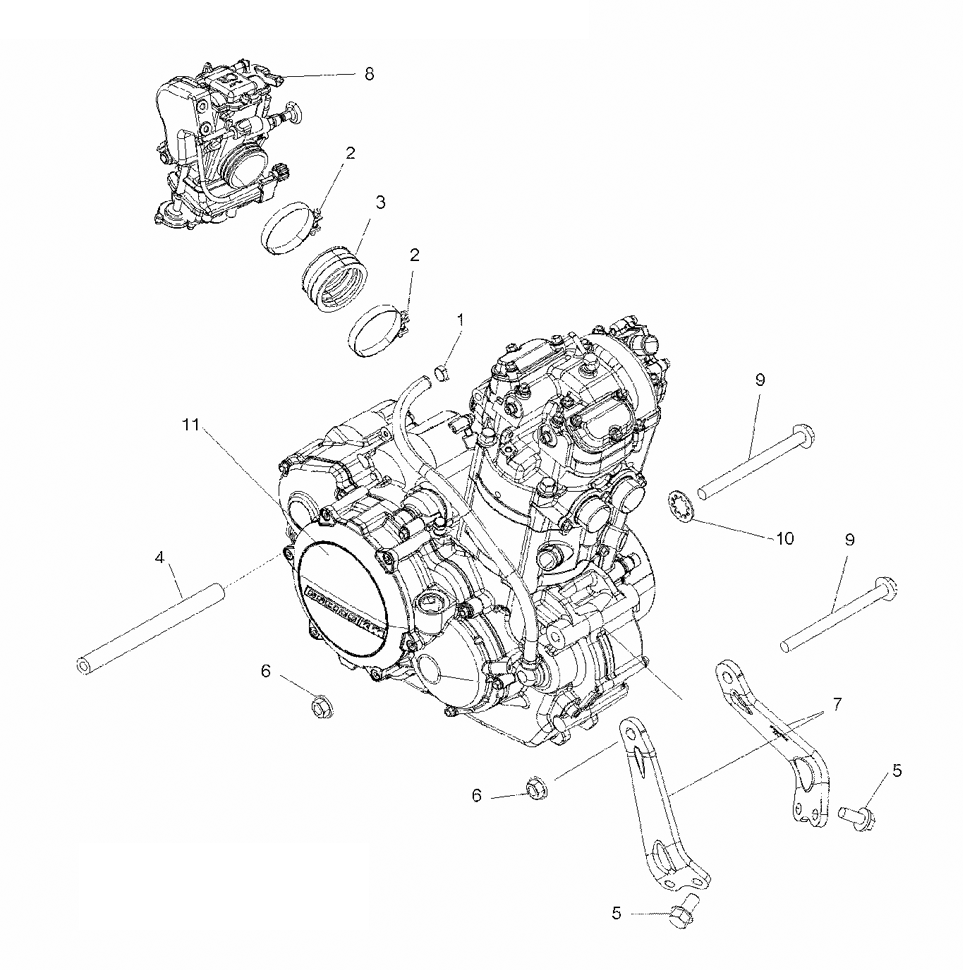

ENGINE - MOUNTING для Polaris OUTLAW 450 S (GJ45AA) (INDY RED) - 2008 года выпуска`
-
№АртикулНазвание
-
17080699 CLAMP, HOSECLAMP, HOSE
-
27080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
35413231 BOOT-INTAKE, 525 ATVBOOT-INTAKE, 525 ATV
-
45134957 BUSHING-MOTOR MOUNTBUSHING-MOTOR MOUNT
-
57518514 BOLT-M8X1.25X25, HXFLG-OLIVE DBOLT-M8X1.25X25, HXFLG-OLIVE D
-
67547333 NUT-M10X1.25, FLG, NYLOC-OLIVE DNUT-M10X1.25, FLG, NYLOC-OLIVE D
-
75251131 BRKT-MOUNT, ENGINE, LEFT HANDBRKT-MOUNT, ENGINE, LEFT HAND
-
75251132 MOUNT-ENGINE, RIGHT HANDMOUNT-ENGINE, RIGHT HAND
-
81203642 ASM-CARB, KEIHIN FCR, 450 PREDASM-CARB, KEIHIN FCR, 450 PRED
-
97518665 BOLT-M10X1.25X130, HXFLG-OLIVEDBOLT-M10X1.25X130, HXFLG-OLIVED
-
107575202 WASHER LOCKWASHER LOCK
-
111203608 PLATEPLATE
