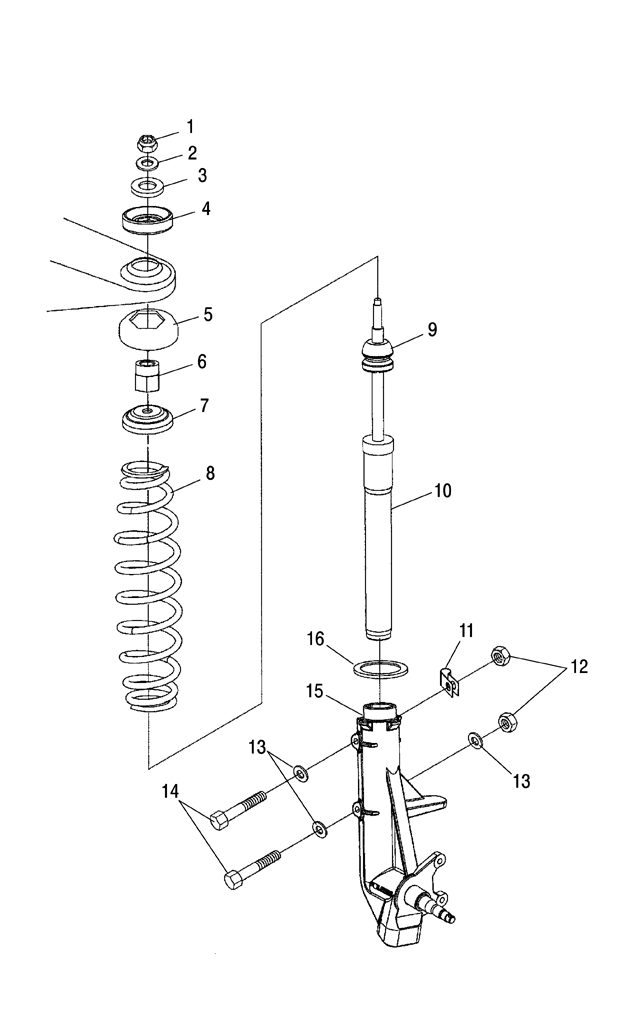

SUSPENSION - FRONT STRUT для Polaris TRAIL BOSS 330 (A07CA32AA) (BLACK) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7547104 NUT
    NUT
  • 2
    7555749 WASHER
    WASHER
  • 3
    5810291 SPACER, RUBBER
    SPACER, RUBBER
  • 4
    5432872 PIVOT, BALL, TOP
    PIVOT, BALL, TOP
  • 5
    5432871 PIVOT, BALL, BOTTOM
    PIVOT, BALL, BOTTOM
  • 6
    5132062 SPACER 1/2 20
    SPACER 1/2 20
  • 7
    5243364 RETAINER SPRING
    RETAINER SPRING
  • 8
    7041850-385 SPRING COMP, 41#/IN (SILVER)
    SPRING COMP, 41#/IN (SILVER)
  • 9
    5412665 BUMPER MCU, 17.8MM ID
    BUMPER MCU, 17.8MM ID
  • 10
    7041761 STRUT FRONT, 18X30MM, 153.8MM ST
    STRUT FRONT, 18X30MM, 153.8MM ST
  • 11
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 12
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 13
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 14
    7515339 BOLT
    BOLT
  • 15
    5135136 Support, Strut/Spindle, RH
    Support, Strut/Spindle, RH
  • 15
    5135135 Support, Strut/Spindle, LH
    Support, Strut/Spindle, LH
  • 16
    5211115 WASHER
    WASHER
