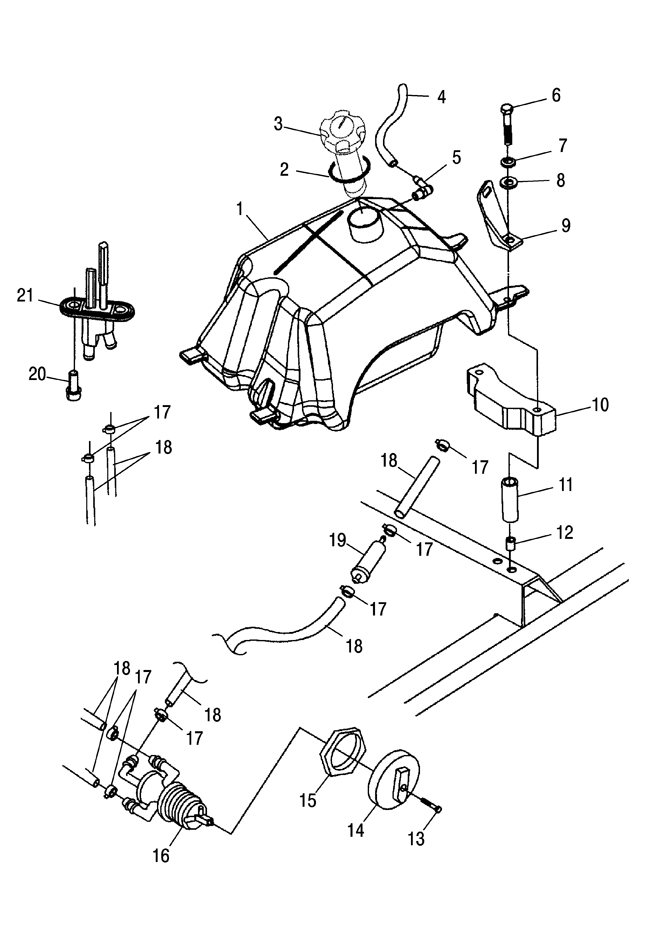

FUEL TANK для Polaris TRAIL BOSS 330 (A07CA32AA) (BLACK) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    2520409 FUEL TANK ASSY (INCLUDES 5,20,21)
    FUEL TANK ASSY (INCLUDES 5,20,21)
  • 2
    5812123 GASKET
    GASKET
  • 3
    2873626 GAUGE, FUEL KIT
    GAUGE, FUEL KIT
  • 4
    8360009-600 LINE, FUEL, 1/8 ID, 600 CM.
    LINE, FUEL, 1/8 ID, 600 CM.
  • 5
    5431053 VENT, TANK
    VENT, TANK
  • 6
    7517451 BOLT
    BOLT
  • 7
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 8
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 9
    5247184 BRACKET FUEL COVER MT (LEFT)
    BRACKET FUEL COVER MT (LEFT)
  • 9
    5247185 BRACKET FUEL COVER MT (RIGHT)
    BRACKET FUEL COVER MT (RIGHT)
  • 10
    5811951 SEAL, FOAM 2'' THK
    SEAL, FOAM 2'' THK
  • 11
    5332457 SPACER
    SPACER
  • 12
    7547069 NUTSERT, HEX
    NUTSERT, HEX
  • 13
    7517505 SCREW
    SCREW
  • 14
    5432559 KNOB, FUEL VALVE
    KNOB, FUEL VALVE
  • 15
    5432733 NUT, FUEL VALVE
    NUT, FUEL VALVE
  • 16
    7052161 VALVE, 3 WAY
    VALVE, 3 WAY
  • 17
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    8450117-250 FUEL HOSE 250 CM
    FUEL HOSE 250 CM
  • 19
    2530009 FILTER, SMALL, IN LINE,
    FILTER, SMALL, IN LINE,
  • 20
    7515136 SCREW
    SCREW
  • 21
    7052364 FITTING FUEL, DUAL OUTLET
    FITTING FUEL, DUAL OUTLET
