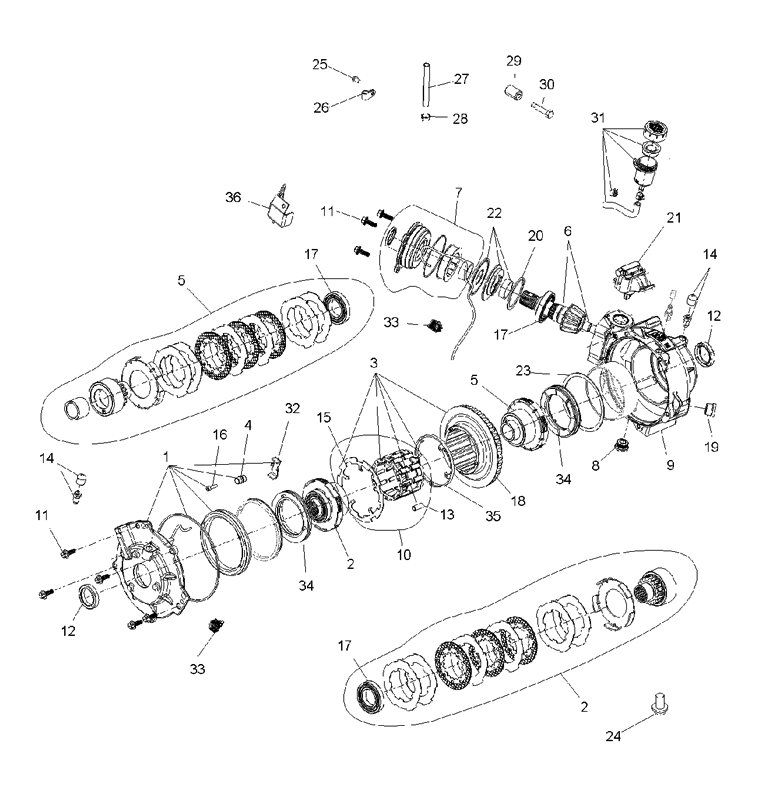

GEARCASE - FRONT (IF BUILT AFTER 7/17/06) для Polaris SPORTSMAN 500 EFI (A07MN50AY) (BLACK METALLIC) - 2007 года выпуска`
-
№АртикулНазвание
-
-1332568 ASM., GEARCASE, ADC (INCLUDES 1-23, 31)ASM., GEARCASE, ADC (INCLUDES 1-23, 31)
-
13234588 ASM., COVER, OUTPUT, ADC (INCLUDES COVER, COIL, THRUST PLATE, SEALS, VENT)ASM., COVER, OUTPUT, ADC (INCLUDES COVER, COIL, THRUST PLATE, SEALS, VENT)
-
23234590 ASM., HUB, OUTPUT, FEMALE, ADC (INCL. BEARING, PLATES, HUB)ASM., HUB, OUTPUT, FEMALE, ADC (INCL. BEARING, PLATES, HUB)
-
33234591 ASM., CLUTCH, ADC (INCL. CAGE, ROLLS, ARMATURE PLATES, RING GEAR)ASM., CLUTCH, ADC (INCL. CAGE, ROLLS, ARMATURE PLATES, RING GEAR)
-
43234594 ASM-THRUST BUTTON (INCLUDES SEAL)ASM-THRUST BUTTON (INCLUDES SEAL)
-
53234600 ASM., HUB, OUTPUT, MALE, ADC (INCLUDES BEARING, PLATES, HUB)ASM., HUB, OUTPUT, MALE, ADC (INCLUDES BEARING, PLATES, HUB)
-
63234599 ASM-GEAR,PINION,ADC (INCL. GEAR, BUSHING)ASM-GEAR,PINION,ADC (INCL. GEAR, BUSHING)
-
73234598 ASM-COVER,INPUT,ADC (INCL. SEALS, BEARING, COIL)ASM-COVER,INPUT,ADC (INCL. SEALS, BEARING, COIL)
-
83234412 ASM-PLUG,DRAIN,MAGNETIC (INCL. MAGNET)ASM-PLUG,DRAIN,MAGNETIC (INCL. MAGNET)
-
93234597 ASM-GEARCASE,ADC (INCL. SEALS, PLUGS, VENTS, BUSHING)ASM-GEARCASE,ADC (INCL. SEALS, PLUGS, VENTS, BUSHING)
-
103234466 ASM-ROLL CAGE (INCL. ARMATURE PLATE, ROLL CAGE, ROLLS)ASM-ROLL CAGE (INCL. ARMATURE PLATE, ROLL CAGE, ROLLS)
-
113234592 KIT, BOLT, ADC (INCLUDES HARDWARE)KIT, BOLT, ADC (INCLUDES HARDWARE)
-
123234593 KIT, REPAIR, SEAL (INCL. SEALS, O-RINGS, SQUARE RING)KIT, REPAIR, SEAL (INCL. SEALS, O-RINGS, SQUARE RING)
-
133234393 KIT-ROLLER (20) (INCL. COMPLETE ROLL SET)KIT-ROLLER (20) (INCL. COMPLETE ROLL SET)
-
143234432 KIT-BLEEDER VALVE,FWBDKIT-BLEEDER VALVE,FWBD
-
153234407 PLATE, ARMATUREPLATE, ARMATURE
-
163234408 SET, SCREWSET, SCREW
-
173234390 BEARINGBEARING
-
183234596 HOUSING-CLUTCH,ADCHOUSING-CLUTCH,ADC
-
193234414 PLUG-OIL FILL 3/4-16 HOLLOWPLUG-OIL FILL 3/4-16 HOLLOW
-
203234416 RING-RETAINING,INTRNL,5000-218RING-RETAINING,INTRNL,5000-218
-
213234429 PUMPPUMP
-
223234434 KIT-CAM AND ARMATURE,FWBDKIT-CAM AND ARMATURE,FWBD
-
233234437 SPACER-RING GEARSPACER-RING GEAR
-
247517632 SCREWSCREW
-
257512024 SCREWSCREW
-
267080693 CLAMP,HOSE,NYLONCLAMP,HOSE,NYLON
-
278450003-1525 LINE,FUEL,1/4 ID(1525 CM.)LINE,FUEL,1/4 ID(1525 CM.)
-
287080307 CLAMP,HOSECLAMP,HOSE
-
295437162 SPACER-.265 ID X .50 OD X .75SPACER-.265 ID X .50 OD X .75
-
307518306 SCR-1/4-20X1.50-HX/W-TAPR-GP-YSCR-1/4-20X1.50-HX/W-TAPR-GP-Y
-
313234433 RESERVOIR, REMOTE, ADCRESERVOIR, REMOTE, ADC
-
323234595 PLATE-THRUST,DUPLATE-THRUST,DU
-
333234601 CLIP-STRAIN RELIEFCLIP-STRAIN RELIEF
-
343234589 PISTONPISTON
-
353234602 SPACER-BASKET,ADCSPACER-BASKET,ADC
-
363234603 BRACKET-COVER,ADCBRACKET-COVER,ADC
