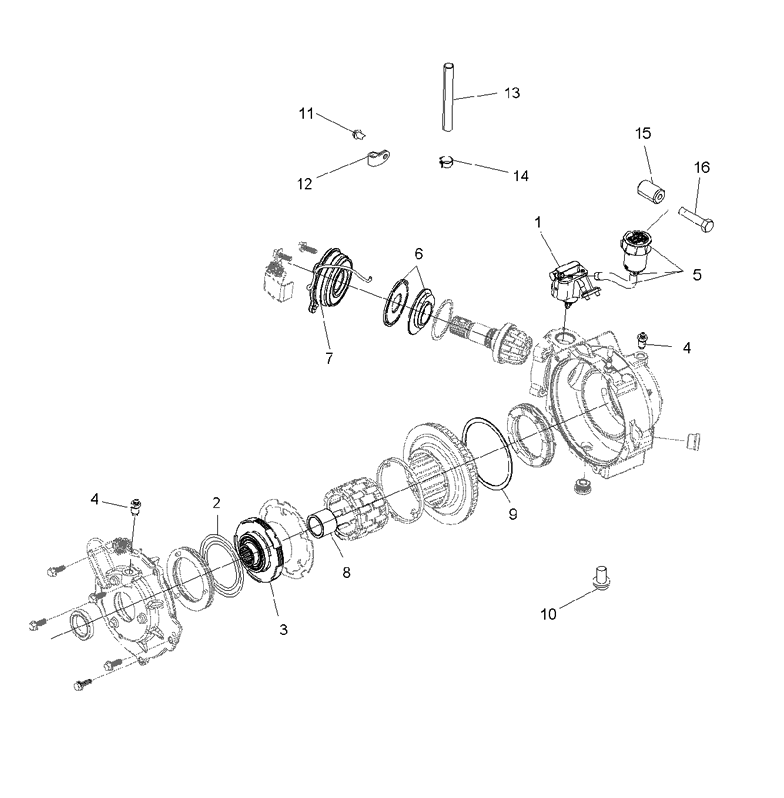

GEARCASE - FRONT (IF BUILT BEFORE 7/17/06) для Polaris SPORTSMAN 500 EFI (A07MN50AY) (BLACK METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • -
    1332387 GEARCASE ASSY. INCL. ALL LESS 10-16
    GEARCASE ASSY. INCL. ALL LESS 10-16
  • 1
    3234429 ASM-PUMP,FWBD (INCLUDES PUMP ONLY)
    ASM-PUMP,FWBD (INCLUDES PUMP ONLY)
  • 2
    3234430 KIT-PISTON SEAL,FWBD (INCLUDES INNER, OUTER SEAL)
    KIT-PISTON SEAL,FWBD (INCLUDES INNER, OUTER SEAL)
  • 3
    3234431 ASM-OUTPUT HUB W/CLUTCH,FWBD (INCLUDES DRIVE/DRIVEN PLATES, OUTPUT HUB)
    ASM-OUTPUT HUB W/CLUTCH,FWBD (INCLUDES DRIVE/DRIVEN PLATES, OUTPUT HUB)
  • 4
    3234432 KIT-BLEEDER VALVE,FWBD (INCLUDES 2 VALVE)
    KIT-BLEEDER VALVE,FWBD (INCLUDES 2 VALVE)
  • 5
    3234433 ASM-REMOTE RES,FWBD (INCLUDES RESERVOIR, CAP, HOSE, CLAMPS)
    ASM-REMOTE RES,FWBD (INCLUDES RESERVOIR, CAP, HOSE, CLAMPS)
  • 6
    3234434 KIT-CAM AND ARMATURE,FWBD (INCLUDES CAM, ARMATURE)
    KIT-CAM AND ARMATURE,FWBD (INCLUDES CAM, ARMATURE)
  • 7
    3234435 ASM-PINION COVER,FWBD
    ASM-PINION COVER,FWBD
  • 8
    3234436 BUSHING-1X1.316X1
    BUSHING-1X1.316X1
  • 9
    3234437 SPACER-RING GEAR
    SPACER-RING GEAR
  • 10
    7517632 SCREW
    SCREW
  • 11
    7512024 SCREW
    SCREW
  • 12
    7080693 CLAMP,HOSE,NYLON
    CLAMP,HOSE,NYLON
  • 13
    8450003-1525 LINE,FUEL,1/4 ID(1525 CM.)
    LINE,FUEL,1/4 ID(1525 CM.)
  • 14
    7080307 CLAMP,HOSE
    CLAMP,HOSE
  • 15
    5133658 SPACER-COIL
    SPACER-COIL
  • 16
    7518306 SCR-1/4-20X1.50-HX/W-TAPR-GP-Y
    SCR-1/4-20X1.50-HX/W-TAPR-GP-Y
