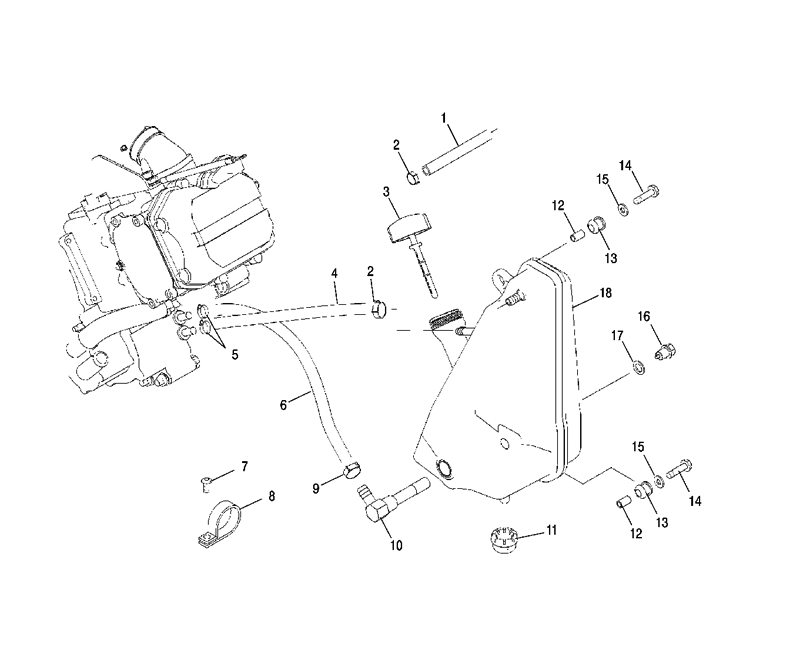

OIL TANK для Polaris SPORTSMAN 450 (A07MH46AZ) (INDY RED) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    5413003 BREATHER-LINE-115 CM,SLIT
    BREATHER-LINE-115 CM,SLIT
  • 2
    7080699 CLAMP,HOSE
    CLAMP,HOSE
  • 3
    5434574 DIPSTICK-OIL TANK
    DIPSTICK-OIL TANK
  • 4
    8450073-600 LINE,BREATHER,3/8 ID.
    LINE,BREATHER,3/8 ID.
  • 5
    7080474 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    8450096-100 LINE-FUEL GOODYEAR,1/2''SAE 30R7
    LINE-FUEL GOODYEAR,1/2''SAE 30R7
  • 7
    7512024 SCREW
    SCREW
  • 8
    7080693 CLAMP,HOSE,NYLON
    CLAMP,HOSE,NYLON
  • 9
    7081026 CLAMP-HOSE,SPRING .81
    CLAMP-HOSE,SPRING .81
  • 10
    7052326 SCREEN-OIL FILTER,90°
    SCREEN-OIL FILTER,90°
  • 11
    5412507 GROMMET
    GROMMET
  • 12
    5333204 BUSHING,MTG.
    BUSHING,MTG.
  • 13
    5410828 GROMMET,MTG,RESERVOIR
    GROMMET,MTG,RESERVOIR
  • 14
    7512242 SCREW
    SCREW
  • 15
    7558301 WASHER, FLAT
    WASHER, FLAT
  • 16
    7051524 PLUG
    PLUG
  • 17
    5850135 WASHER
    WASHER
  • 18
    1261653 WELDMENT-OIL TANK
    WELDMENT-OIL TANK
