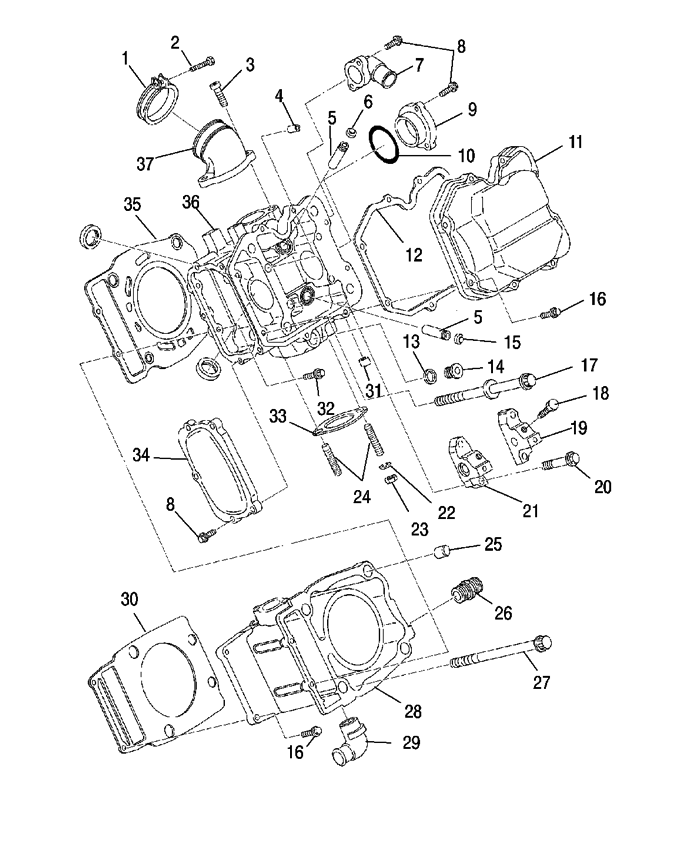

CYLINDER для Polaris SPORTSMAN 450 (A07MH46AZ) (INDY RED) - 2007 года выпуска

№

Артикул

Название
1

3083166 ASM-ADAPTER BAND

ASM-ADAPTER BAND
2

3081497 SCREW,PAN HEAD

SCREW,PAN HEAD
3

3081330 BOLT, SOCKET HEAD

BOLT, SOCKET HEAD
4

3084857 KNOCK,PIPE

KNOCK,PIPE
5

3084994 GUIDE,VALVE

GUIDE,VALVE
6

3084858 SEAL,INTAKE VALVE

SEAL,INTAKE VALVE
7

3084870 ADAPTER-WATER OUT

ADAPTER-WATER OUT
8

3084877 BOLT,FLANGE

BOLT,FLANGE
9

3084866 ADAPTER,CAMSHAFT

ADAPTER,CAMSHAFT
10

3084867 O-RING

O-RING
11

3085073 COVER,ROCKER

COVER,ROCKER
12

3085074 GASKET,(ROCKER COVER)

GASKET,(ROCKER COVER)
13

3084861 GASKET

GASKET
14

3084860 PLUG

PLUG
15

3084859 SEAL,EXHAUST VALVE

SEAL,EXHAUST VALVE
16

3084874 BOLT, FLANGE

BOLT, FLANGE
17

3084875 BOLT

BOLT
18

3085854 BOLT-ROCKER SHAFT

BOLT-ROCKER SHAFT
19

3084864 SUPPORT,VALVE ROCKER SHAFT(PTO)

SUPPORT,VALVE ROCKER SHAFT(PTO)
20

3084876 BOLT

BOLT
21

3084863 SUPPORT,VALVE ROCKER SHAFT(MAG)

SUPPORT,VALVE ROCKER SHAFT(MAG)
22

3080530 WASHER, SPRING LOCK

WASHER, SPRING LOCK
23

3087199 NUT

NUT
24

3085326 STUD

STUD
25

3087266 KNOCK,PIPE

KNOCK,PIPE
26

3084849 UNION-OIL FILTER

UNION-OIL FILTER
27

3084873 BOLT, FLANGE

BOLT, FLANGE
28

3089241 ASM-CYLINDER

ASM-CYLINDER
29

3086747 PIPE-2,ELBOW

PIPE-2,ELBOW
30

3089966 GASKET-CYLINDER

GASKET-CYLINDER
31

3084862 PLUG, BLIND

PLUG, BLIND
32

3086781 BOLT,FLANGE

BOLT,FLANGE
33

3085075 ASM.,GASKET(EXHAUST)

ASM.,GASKET(EXHAUST)
34

3089242 COVER-CAMSHAFT

COVER-CAMSHAFT
35

3085337 GASKET,HEAD

GASKET,HEAD
36

3085527 ASM.,HEAD,CYLINDER (INCL. 4-6,13-15,24,31)

ASM.,HEAD,CYLINDER (INCL. 4-6,13-15,24,31)
37

3084879 ADAPTER

ADAPTER
