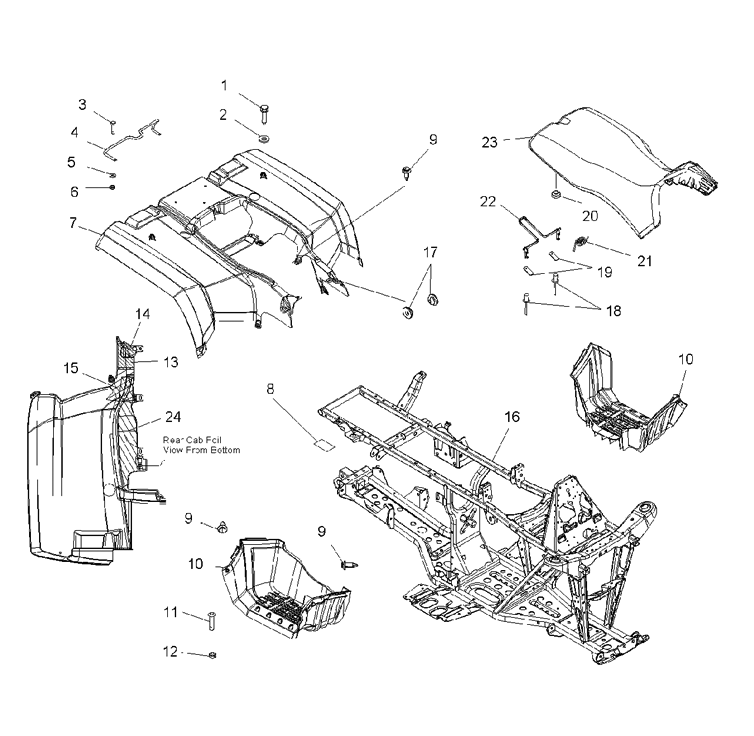

CAB- REAR - SEAT - FRAME для Polaris SPORTSMAN 450 (A07MH46AA) (CAMO GREEN METALLIC) - 2007 года выпуска`
-
№АртикулНазвание
-
17512095 SCREWSCREW
-
27555798 WASHERWASHER
-
37511930 SCREWSCREW
-
45246076 RETAINER-SEAT LATCH (IF BUILT BEFORE 6/12/06)RETAINER-SEAT LATCH (IF BUILT BEFORE 6/12/06)
-
45250745 RETAINER-SEAT LATCH (IF BUILT AFTER 6/12/06)RETAINER-SEAT LATCH (IF BUILT AFTER 6/12/06)
-
57555792 WASHERWASHER
-
67541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
75436319-400 CAB-REAR,CAMO GRN MTCAB-REAR,CAMO GRN MT
-
87170911 DECAL-HITCH,1225 LBS.DECAL-HITCH,1225 LBS.
-
97661855 RIVET-TUFLOK,.315-.325X.787 (50RIVET-TUFLOK,.315-.325X.787 (50
-
105435354-070 FOOTWELL-BASIC,LH,BLK (IF BUILT BEFORE 7/27/06)FOOTWELL-BASIC,LH,BLK (IF BUILT BEFORE 7/27/06)
-
105436931-070 FOOTWELL-BASIC, LEFT HAND, BLACK (IF BUILT AFTER 7/27/06)FOOTWELL-BASIC, LEFT HAND, BLACK (IF BUILT AFTER 7/27/06)
-
105435355-070 FOOTWELL-BASIC,RH,BLK (IF BUILT BEFORE 7/27/06)FOOTWELL-BASIC,RH,BLK (IF BUILT BEFORE 7/27/06)
-
105436932-070 FOOTWELL-BASIC, RIGHT HAND, BLACK (IF BUILT AFTER 7/27/06)FOOTWELL-BASIC, RIGHT HAND, BLACK (IF BUILT AFTER 7/27/06)
-
117517230 SCREWSCREW
-
127542122 NUT-NYLOKNUT-NYLOK
-
135813028 FOIL-REAR CAB,FRONT (IF BUILT BEFORE 10/01/06)FOIL-REAR CAB,FRONT (IF BUILT BEFORE 10/01/06)
-
135813177 FOIL-REAR CAB,FRONT (IF BUILT AFTER 10/01/06)FOIL-REAR CAB,FRONT (IF BUILT AFTER 10/01/06)
-
145813029 FOIL-REAR CAB,EDGEFOIL-REAR CAB,EDGE
-
155813030 FOIL-REAR CAB,MIDDLEFOIL-REAR CAB,MIDDLE
-
161015738-067 WELD-MAIN FRAME, BLACKWELD-MAIN FRAME, BLACK
-
175412623 GROMMET-RUBBER MOUNTGROMMET-RUBBER MOUNT
-
187621403 BLIND RIVETBLIND RIVET
-
195211033 BRACKET,LEVER RETAINERBRACKET,LEVER RETAINER
-
205412067 BUMPER-RUBBERBUMPER-RUBBER
-
217041370 SPRING, LATCHSPRING, LATCH
-
221040387 LATCH,SEATLATCH,SEAT
-
232683433-070 SEAT ASM, BLACKSEAT ASM, BLACK
-
232683434-070 ASM-COVER, SPIRIT, 10"WHTDECALASM-COVER, SPIRIT, 10"WHTDECAL
-
245813043 FOIL-REAR CAB,REARFOIL-REAR CAB,REAR
