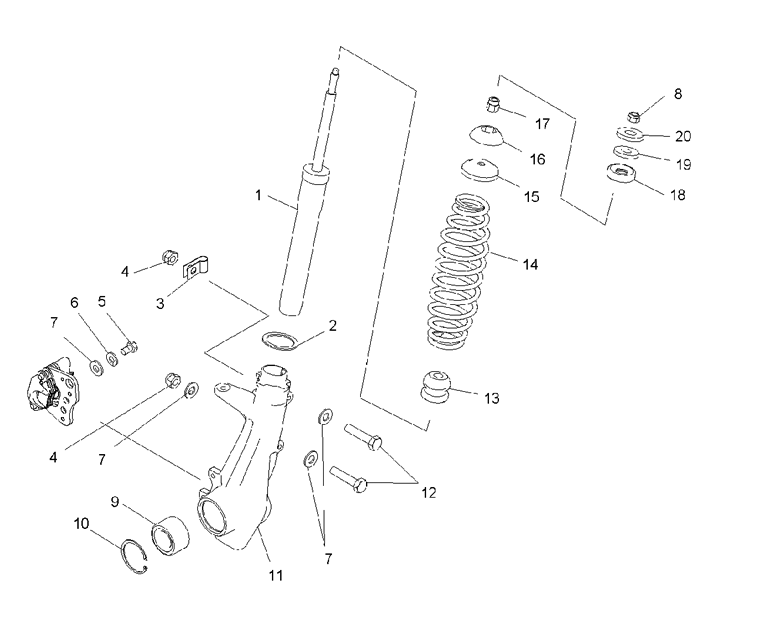

SUSPENSION - FRONT STRUT для Polaris SPORTSMAN 450 (A07MH46AA) (CAMO GREEN METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7041762 STRUT-FRONT,18X30MM,184.7MM LT
    STRUT-FRONT,18X30MM,184.7MM LT
  • 2
    5211115 WASHER
    WASHER
  • 3
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 4
    7542324 NUT,NYLOK
    NUT,NYLOK
  • 5
    7512365 SCREW, CAP
    SCREW, CAP
  • 6
    7552901 WASHER,SPRING LOCK
    WASHER,SPRING LOCK
  • 7
    7558402 WASHER,FLAT
    WASHER,FLAT
  • 8
    7547104 NUT
    NUT
  • 9
    3514342 BEARING-AXLE TUBE/HUBSTRUT
    BEARING-AXLE TUBE/HUBSTRUT
  • 10
    7710507 RING,RET.,2.500 INTERNAL
    RING,RET.,2.500 INTERNAL
  • 11
    1822825 ASM-HUBSTRUT, LEFT HAND,4X4 (INCL. 9,10 AND BALL JOINT)
    ASM-HUBSTRUT, LEFT HAND,4X4 (INCL. 9,10 AND BALL JOINT)
  • 11
    1822826 ASM-HUBSTRUT, RIGHT HAND,4X4 (INCL. 9,10 AND BALL JOINT)
    ASM-HUBSTRUT, RIGHT HAND,4X4 (INCL. 9,10 AND BALL JOINT)
  • 12
    7515339 BOLT
    BOLT
  • 13
    5412665 BUMPER-MCU,17.8MM ID
    BUMPER-MCU,17.8MM ID
  • 14
    7043247-067 SPRING-COMP,55-90 #/IN,HT, BLACK
    SPRING-COMP,55-90 #/IN,HT, BLACK
  • 15
    5243364 RETAINER-SPRING
    RETAINER-SPRING
  • 16
    5432871 PIVOT,BALL,BOTTOM
    PIVOT,BALL,BOTTOM
  • 17
    5132062 SPACER-1/2-20
    SPACER-1/2-20
  • 18
    5432872 PIVOT,BALL,TOP
    PIVOT,BALL,TOP
  • 19
    5810291 SPACER, RUBBER
    SPACER, RUBBER
  • 20
    7555749 WASHER
    WASHER
