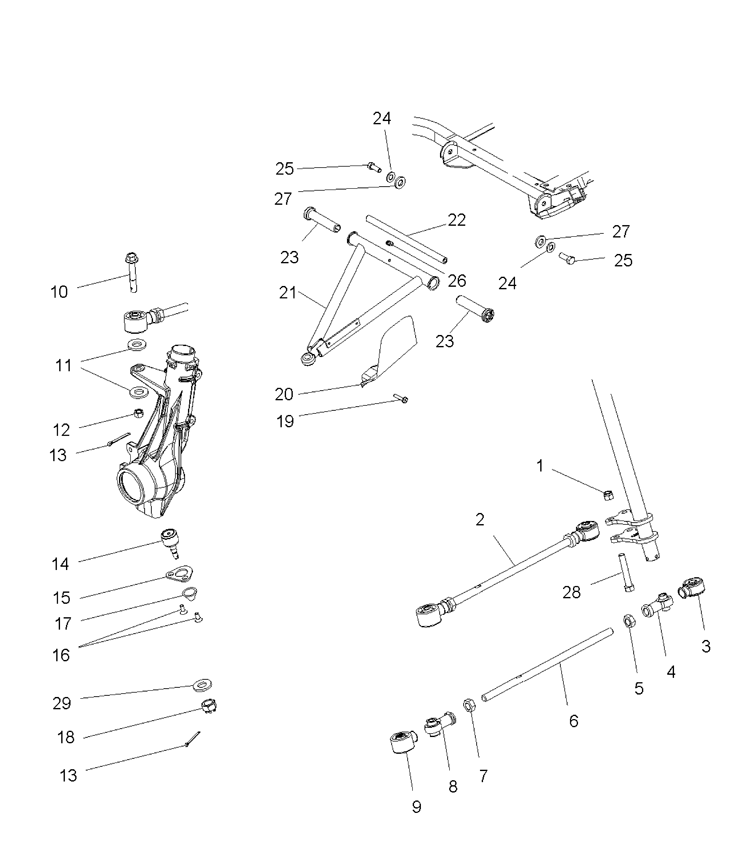

SUSPENSION - FRONT для Polaris SCRAMBLER 500 4X4 (A07BG50AA) (BLACK METALLIC) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 2
    1822852 TIE ROD ASSY (1/2 20X13.4)
    TIE ROD ASSY (1/2 20X13.4)
  • 3
    5412928 BOOT SEAL, ROD END, 1/2 IN (INCLUDES 3 TO 9)
    BOOT SEAL, ROD END, 1/2 IN (INCLUDES 3 TO 9)
  • 4
    7061139 ROD END, 3/8, 1/2 20, 44DEG (RIGHT)
    ROD END, 3/8, 1/2 20, 44DEG (RIGHT)
  • 5
    7542711 NUT JAM
    NUT JAM
  • 6
    5020926 ROD, TIE
    ROD, TIE
  • 7
    7547028 NUT, JAM (LEFT)
    NUT, JAM (LEFT)
  • 8
    7061138 ROD END, 10MM, 1/2 20, 42 DEG (LEFT)
    ROD END, 10MM, 1/2 20, 42 DEG (LEFT)
  • 9
    5412929 BOOT SEAL, ROD END, 10MM
    BOOT SEAL, ROD END, 10MM
  • 10
    7517909 BOLT M10X1.25X65, HX WASH HD
    BOLT M10X1.25X65, HX WASH HD
  • 11
    7556099 WASHER
    WASHER
  • 12
    7547177 NUT M10X1.25 HX LOCK Y
    NUT M10X1.25 HX LOCK Y
  • 13
    7661203 PIN, COTTER
    PIN, COTTER
  • 14
    7061130 COULD NOT FIND (IF BUILT BEFORE 10/27/06)
    COULD NOT FIND (IF BUILT BEFORE 10/27/06)
  • 14
    7061153 BALLJOINT GREASELESS, STRUT (IF BUILT AFTER 10/27/06)
    BALLJOINT GREASELESS, STRUT (IF BUILT AFTER 10/27/06)
  • 15
    5211121 BRACKET, BALL JOINT
    BRACKET, BALL JOINT
  • 16
    7512284 BOLT, SOCKET
    BOLT, SOCKET
  • 17
    5412658 BOOT BALLJOINT, GREASELESS, STRT
    BOOT BALLJOINT, GREASELESS, STRT
  • 18
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 19
    7512084 SCREW
    SCREW
  • 20
    5431150-070 SHIELD CV JOINT (LEFT) (BLACK)
    SHIELD CV JOINT (LEFT) (BLACK)
  • 20
    5431149-070 SHIELD CV JOINT (RIGHT) (BLACK)
    SHIELD CV JOINT (RIGHT) (BLACK)
  • 21
    2202284-385 KIT A FRAME (LEFT)(1541866) (SILVER)
    KIT A FRAME (LEFT)(1541866) (SILVER)
  • 21
    2202285-385 KIT A FRAME (RIGHT) (1541867) (SILVER)
    KIT A FRAME (RIGHT) (1541867) (SILVER)
  • 22
    5133806 SHAFT A-ARM
    SHAFT A-ARM
  • 23
    5434551 BUSHING A-ARM, LONG (BLACK)
    BUSHING A-ARM, LONG (BLACK)
  • 24
    7552603 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 25
    7512492 SCREW
    SCREW
  • 26
    7080433 FITTING, LUBRICATION, THREADED(10
    FITTING, LUBRICATION, THREADED(10
  • 27
    7555832 WASHER
    WASHER
  • 28
    7515415 SCREW
    SCREW
  • 29
    7555957 WASHER [IF BUILT BEFORE 10/27/06][USE W/7061130]
    WASHER [IF BUILT BEFORE 10/27/06][USE W/7061130]
