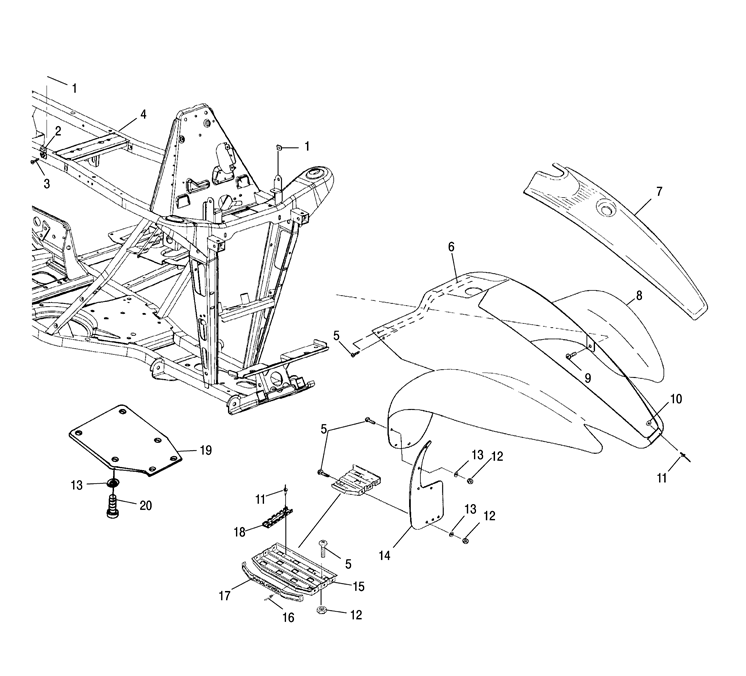

FENDER - FRONT для Polaris SCRAMBLER 500 4X4 (A07BG50AA) (BLACK METALLIC) - 2007 года выпуска
-
№АртикулНазвание
-
17670057 NUT, SPEEDNUT, SPEED
-
25248183 BRACKET CAB MOUNT (LEFT)BRACKET CAB MOUNT (LEFT)
-
25248184 BRACKET CAB MOUNT (RIGHT)BRACKET CAB MOUNT (RIGHT)
-
37517386 SCREWSCREW
-
41014660-067 MAIN FRAME (BLACK)MAIN FRAME (BLACK)
-
57512282 BOLT (BLACK)BOLT (BLACK)
-
65811527 SEAL, FOAMSEAL, FOAM
-
75432553-473 COVER FRONT, SCR 500 (SLVR VENOM)COVER FRONT, SCR 500 (SLVR VENOM)
-
82632993-177 CAB ASSY, FRONT, SVC (BLACK MET) [W/WARNING DECALS]CAB ASSY, FRONT, SVC (BLACK MET) [W/WARNING DECALS]
-
97517386 SCREWSCREW
-
107558201 WASHER, FLATWASHER, FLAT
-
117621472 RIVETRIVET
-
127542122 NUT NYLOKNUT NYLOK
-
137555859 WASHER, FLATWASHER, FLAT
-
145811831 MUDFLAP FRONT, HYBRID (LEFT)MUDFLAP FRONT, HYBRID (LEFT)
-
145850150 MUDFLAP FRONT, HYBRID (RIGHT)MUDFLAP FRONT, HYBRID (RIGHT)
-
151014653-067 FOOTPAD, CDS, STEEL (BLACK)FOOTPAD, CDS, STEEL (BLACK)
-
167661825 RIVET,RIVET,
-
175431484 TRIM, FOOTRESTTRIM, FOOTREST
-
185242525-067 BRKT, HEEL CLEAT (BLACK)BRKT, HEEL CLEAT (BLACK)
-
195432763 GUARD, ROCKGUARD, ROCK
-
207515179 SCREWSCREW
Все узлы модели:
- AIR BOX ASSY.
- AXLE - REAR
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR
- BRAKE - REAR CALIPER - MOUNTING
- BUMPER AND SHIELDS - FRONT
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR - LOWER
- CARBURETOR - UPPER
- CARBURETOR MOUNTING/FUEL PUMP/LINE
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- CONTROL PANEL
- CONTROLS- THROTTLE ASSY/CABLE
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS
- DRIVESHAFT - FRONT
- DRIVESHAFT - INTERMEDIATE
- ELECTRICAL W/ TAILLIGHT ASSY.
- ENGINE - MOUNTING
- EXHAUST SYSTEM
- • FENDER - FRONT
- FENDER - REAR W/ SEAT
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEARCASE - FRONT
- HANDLEBAR - HEADLIGHT
- MAGNETO
- MOUNTING - TRANSMISSION
- OIL FILTER
- OIL PUMP
- OIL TANK
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ SHOCK MOUNTING
- TOOL KIT
- TRANSMISSION
- TRANSMISSION - INTERNALS
- TRANSMISSION - OUTPUT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
