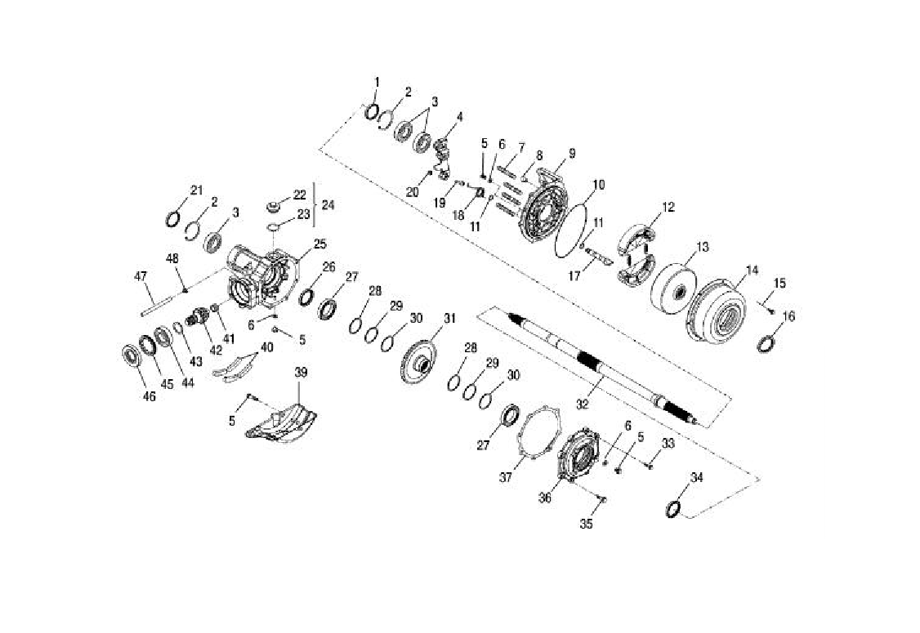

WHEEL - REAR W/ AXLE для Polaris PHOENIX 200 (A07PB20AA) (BLACK) - 2007 года выпуска`
-
№АртикулНазвание
-
10452718 O-RINGO-RING
-
20452717 RETAINERRETAINER
-
30453803 BEARINGBEARING
-
40452724 ARM-BRAKE,REARARM-BRAKE,REAR
-
50452126 BOLT-HEX,WASHER FACEBOLT-HEX,WASHER FACE
-
60452712 WASHER-FLATWASHER-FLAT
-
70452714 STUD-BOLTSTUD-BOLT
-
80452775 CAP-RUBBERCAP-RUBBER
-
90452711 PLATE-BRAKEPLATE-BRAKE
-
100452710 O-RINGO-RING
-
110452708 O-RINGO-RING
-
120452705 ASM-BRAKE SHOE,REARASM-BRAKE SHOE,REAR
-
130452702 DRUM-BRAKEDRUM-BRAKE
-
140452701-385 COVER-REAR,BRAKE DRUM,SILVERCOVER-REAR,BRAKE DRUM,SILVER
-
150452720 BOLT-HEX,FLANGEBOLT-HEX,FLANGE
-
160452700 SEALSEAL
-
170452706 REAR BRAKE SHAFTREAR BRAKE SHAFT
-
180452722 SPRINGSPRING
-
190451704 BOLT,HEX FLANGEBOLT,HEX FLANGE
-
200450150 NUT-FLANGE,HEXNUT-FLANGE,HEX
-
210452752 SEAL-OILSEAL-OIL
-
220452368 PLUG-DRAIN,OILPLUG-DRAIN,OIL
-
230452371 O-RING,DRAIN PLUGO-RING,DRAIN PLUG
-
240452754 ASM-CAP (INC 22,23)ASM-CAP (INC 22,23)
-
250453148 GEARCASE-FINALGEARCASE-FINAL
-
260452737 SEAL-OILSEAL-OIL
-
270452730 BEARINGBEARING
-
280452734 SHIMSHIM
-
290452733 SHIMSHIM
-
300452732 SHIMSHIM
-
310452736 RING GEARRING GEAR
-
320452751 AXLEAXLE
-
330452749 BOLT-HEX,FLANGEBOLT-HEX,FLANGE
-
340452726 SEAL-OILSEAL-OIL
-
350452747 BOLT-HEX,FLANGEBOLT-HEX,FLANGE
-
360453147 COVER-GEARCASE,FINALCOVER-GEARCASE,FINAL
-
370452729 GASKET-COVERGASKET-COVER
-
390452757-385 PLATE-GEAR CASE,SILVERPLATE-GEAR CASE,SILVER
-
400452756 SPACER-RUBBERSPACER-RUBBER
-
410452739 BEARING-NEEDLEBEARING-NEEDLE
-
420452740 GEAR-PINIONGEAR-PINION
-
430452741 SHIM-PINION GEARSHIM-PINION GEAR
-
440452742 BEARINGBEARING
-
450452743 NUTNUT
-
460452745 SEAL-OILSEAL-OIL
-
470452698 HOSE-BREATHERHOSE-BREATHER
-
480452758 CIRCLIPCIRCLIP
