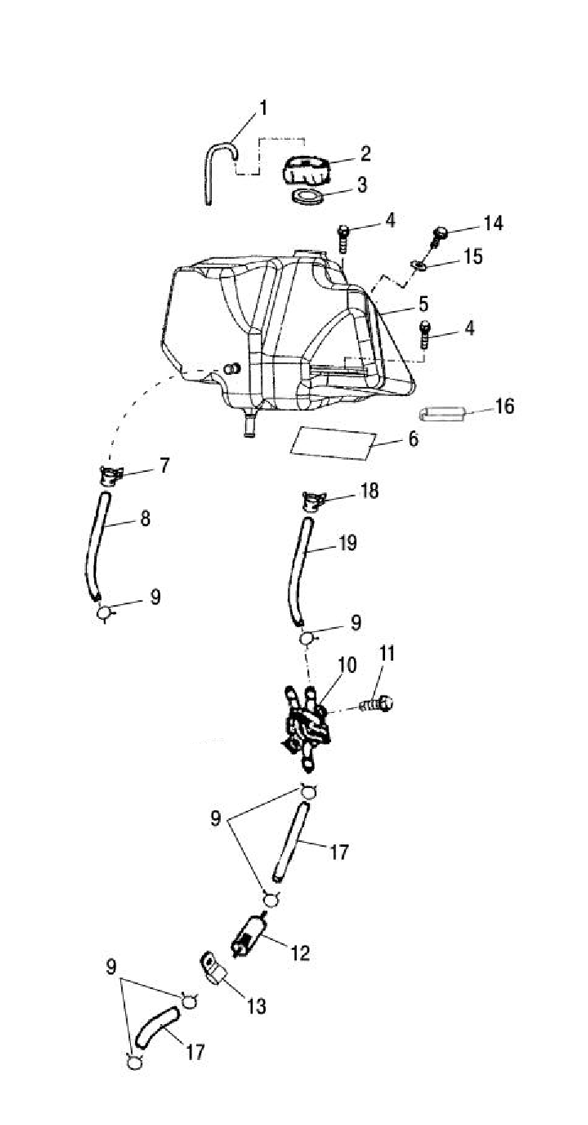

FUEL TANK для Polaris PHOENIX 200 (A07PB20AA) (BLACK) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0452791 HOSE-VENT LINE
    HOSE-VENT LINE
  • 2
    0453929 ASM-CAP,FUEL (INCL. 3)
    ASM-CAP,FUEL (INCL. 3)
  • 3
    0453692 GASKET-FUEL CAP,OUTLAW
    GASKET-FUEL CAP,OUTLAW
  • 4
    0452216 BOLT-HEX
    BOLT-HEX
  • 5
    0453369 TANK, FUEL
    TANK, FUEL
  • 6
    0452645 FOIL-TANK
    FOIL-TANK
  • 7
    0450361 CLIP
    CLIP
  • 8
    0453985 ASM-HOSE,FUEL,W/SLEEVEANDCLAMPS (INCL. 7,9)
    ASM-HOSE,FUEL,W/SLEEVEANDCLAMPS (INCL. 7,9)
  • 9
    0450054 CLIP
    CLIP
  • 10
    0450366 MANUAL FUEL CUP,ASM.
    MANUAL FUEL CUP,ASM.
  • 11
    0450701 BOLT-HEX WASHER
    BOLT-HEX WASHER
  • 12
    0453695 FILTER-FUEL 65 MICRON
    FILTER-FUEL 65 MICRON
  • 13
    0452646 CLAMP
    CLAMP
  • 14
    0450676 SCREW-TAPPING
    SCREW-TAPPING
  • 15
    0452913 WASHER-PLAIN,5X25X2
    WASHER-PLAIN,5X25X2
  • 16
    0450632 MAT,RUBBER,FUEL TANK
    MAT,RUBBER,FUEL TANK
  • 17
    0452644 HOSE
    HOSE
  • 18
    0453693 CLAMP-HOSE
    CLAMP-HOSE
  • 19
    0453986 ASM-HOSE,FUEL,W/CLAMPS (INCL. 9,18)
    ASM-HOSE,FUEL,W/CLAMPS (INCL. 9,18)
