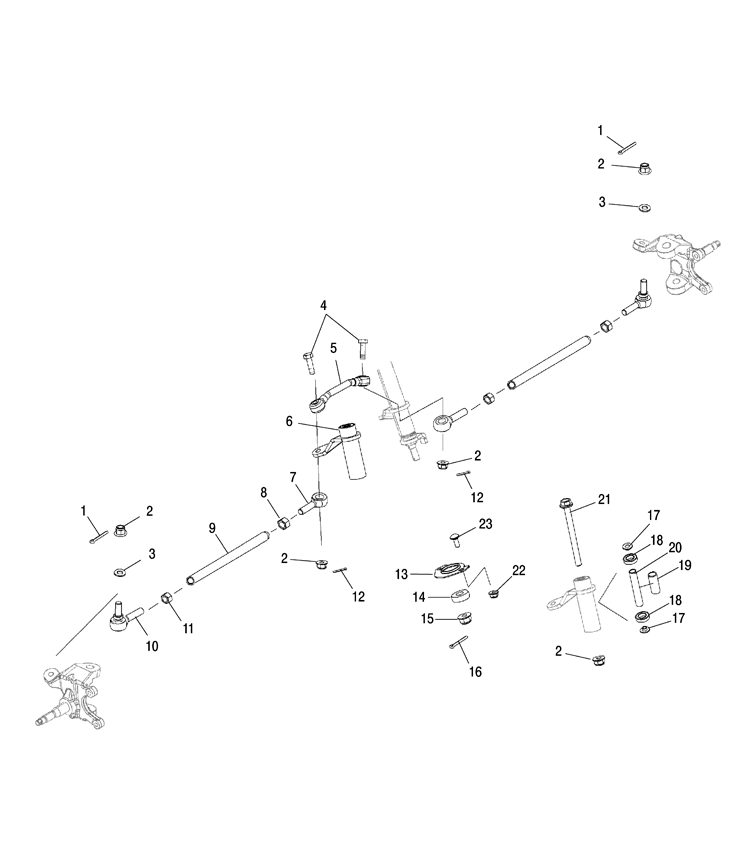

SUSPENSION - LOWER STEERING W/ TIE RODS для Polaris OUTLAW 525 (A07GP52AB) (BLACK) - 2007 года выпуска`
-
№АртикулНазвание
-
-1822776 TIE ROD ASSY (INCLUDES 7 TO 11)TIE ROD ASSY (INCLUDES 7 TO 11)
-
17661203 PIN, COTTERPIN, COTTER
-
27547333 NUT M10X1.25, FLG, NYLOC OLIVE DNUT M10X1.25, FLG, NYLOC OLIVE D
-
37555806 WASHER, FLATWASHER, FLAT
-
47518592 BOLT M10X1.25X80, HXFLG OLV DBOLT M10X1.25X80, HXFLG OLV D
-
51521121 CENTERLINK, STEEL ASSYCENTERLINK, STEEL ASSY
-
61822601-458 IDLER ARM, MATTE BLACK (INCLUDES 17 TO 2)IDLER ARM, MATTE BLACK (INCLUDES 17 TO 2)
-
77061143 ROD END, M10X1.25 (LEFT)ROD END, M10X1.25 (LEFT)
-
87547330 NUT JAM, M10X1.25 (LEFT)NUT JAM, M10X1.25 (LEFT)
-
95134963 ROD TIE, M10X1.25ROD TIE, M10X1.25
-
107061140 ROD END, M10X1.25 (RIGHT)ROD END, M10X1.25 (RIGHT)
-
117547329 NUT JAM, M10X1.25 (RIGHT)NUT JAM, M10X1.25 (RIGHT)
-
127661011 PIN, COTTERPIN, COTTER
-
135249485 FLANGETTE 2 BOLTFLANGETTE 2 BOLT
-
143514543 BEARING BALL, 35X15X11, SPH ODBEARING BALL, 35X15X11, SPH OD
-
157547334 NUT M12X1.5, FLG, NYLOC OLIVE DNUT M12X1.5, FLG, NYLOC OLIVE D
-
167661402 PIN, COTTERPIN, COTTER
-
175135275 BUSHING REDUCER, 12MM TO 10MMBUSHING REDUCER, 12MM TO 10MM
-
183514320 BEARING BALL, 600ILLUBEARING BALL, 600ILLU
-
195812977 SPACER FOAMSPACER FOAM
-
205334779 SPACER TUBE, IDLER ARMSPACER TUBE, IDLER ARM
-
217518665 BOLTBOLT
-
227547332 NUTNUT
-
237518564 BOLTBOLT
