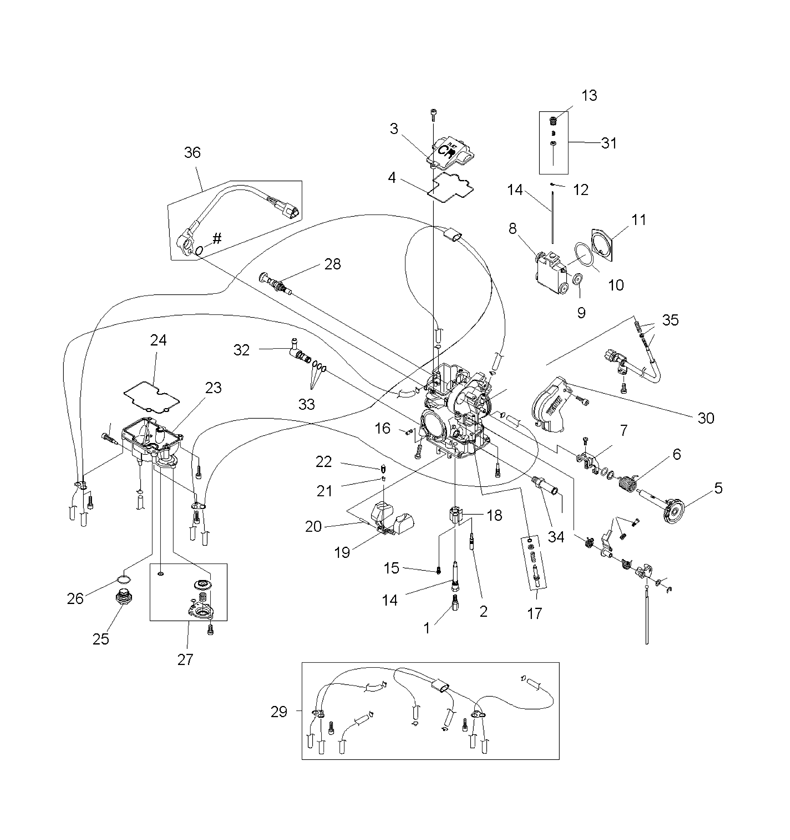

CARBURETOR для Polaris OUTLAW 525 (A07GP52AB) (BLACK) - 2007 года выпуска

  • №
    Артикул
    Название
  • -
    1203432 CARB ASSY, KEIHIN FCR, 525 ATV
    CARB ASSY, KEIHIN FCR, 525 ATV
  • 1
    3050235-135 MAIN JET, KHN.
    MAIN JET, KHN.
  • 1
    3050235-138 MAIN JET, KHN.
    MAIN JET, KHN.
  • 1
    3050235-140 MAIN JET, KHN.
    MAIN JET, KHN.
  • 1
    3050235-142 MAIN JET, KHN.
    MAIN JET, KHN.
  • 1
    3050235-145 MAIN JET, KHN.
    MAIN JET, KHN.
  • 1
    3050235-148 MAIN JET, KHN.
    MAIN JET, KHN.
  • 1
    3050235-150 MAIN JET, KHN.
    MAIN JET, KHN.
  • 1
    3050235-152 MAIN JET, KHN.
    MAIN JET, KHN.
  • 1
    3050235-155 MAIN JET, KHN.
    MAIN JET, KHN.
  • 1
    3050235-158 MAIN JET, KHN.
    MAIN JET, KHN.
  • 1
    3050235-160 MAIN JET, KHN.
    MAIN JET, KHN.
  • 1
    3050235-162 MAIN JET, KHN.
    MAIN JET, KHN.
  • 1
    3050235-165 MAIN JET, KHN.
    MAIN JET, KHN.
  • 1
    3050235-168 MAIN JET, KHN.
    MAIN JET, KHN.
  • 1
    3050235-170 MAIN JET, KHN.
    MAIN JET, KHN.
  • 2
    3050219-40 PILOT JET, KHN.
    PILOT JET, KHN.
  • 2
    3050219-42 PILOT JET, KHN.
    PILOT JET, KHN.
  • 2
    3050219-45 PILOT JET, KHN.
    PILOT JET, KHN.
  • 2
    3050219-48 PILOT JET, KHN.
    PILOT JET, KHN.
  • 2
    3050219-50 PILOT JET, KHN.
    PILOT JET, KHN.
  • 3
    3131652 COVER CARB TOP, FCR
    COVER CARB TOP, FCR
  • 4
    3131653 SEAL CARB COVER, FCR
    SEAL CARB COVER, FCR
  • 5
    3131654 COULD NOT FIND
    COULD NOT FIND
  • 6
    3131655 COULD NOT FIND
    COULD NOT FIND
  • 7
    3131656 COULD NOT FIND
    COULD NOT FIND
  • 8
    3131657 VALVE THROTTLE, FCR
    VALVE THROTTLE, FCR
  • 9
    3131658 ROLLER THROTTLE VALVE, FCR
    ROLLER THROTTLE VALVE, FCR
  • 10
    3131659 SEAL THROTTLE VALVE, FCR
    SEAL THROTTLE VALVE, FCR
  • 11
    3131660 PLATE THROTTLE VALVE, FCR
    PLATE THROTTLE VALVE, FCR
  • 12
    3131661 CLIP NEEDLE, FCR CARB
    CLIP NEEDLE, FCR CARB
  • 13
    3131662 SCR NEEDLE SET, FCR CARB
    SCR NEEDLE SET, FCR CARB
  • 14
    2203401 NEEDLE AND MAIN NOZZLE KIT
    NEEDLE AND MAIN NOZZLE KIT
  • 15
    3131663 STARTER JET, KHN, N424 30085
    STARTER JET, KHN, N424 30085
  • 16
    3131677 SLOW AIR JET, KHN, N424 33100
    SLOW AIR JET, KHN, N424 33100
  • 17
    2203522 PILOT SCREW KIT, FCR
    PILOT SCREW KIT, FCR
  • 18
    3131665 PLATE BUFFER, FCR
    PLATE BUFFER, FCR
  • 19
    3131666 FLOAT CARB, FCR
    FLOAT CARB, FCR
  • 20
    3050232 PIN, FLOAT
    PIN, FLOAT
  • 21
    3050229 CLIP, FLOAT VALVE
    CLIP, FLOAT VALVE
  • 22
    2203523 FLOAT NEEDLE AND SEAT KIT, FCR
    FLOAT NEEDLE AND SEAT KIT, FCR
  • 23
    3131667 BOWL FLOAT, FCR
    BOWL FLOAT, FCR
  • 24
    3131668 SEAL FLOAT BOWL, FCR CARB
    SEAL FLOAT BOWL, FCR CARB
  • 25
    3131669 PLUG FLOAT BOWL DRAIN, FCR
    PLUG FLOAT BOWL DRAIN, FCR
  • 26
    3050217 O RING, PLUG SCREW
    O RING, PLUG SCREW
  • 27
    2203524 ACCEL PUMP BOWL KIT, FCR
    ACCEL PUMP BOWL KIT, FCR
  • 28
    3131670 VALVE CHOKE, FCR CARB
    VALVE CHOKE, FCR CARB
  • 29
    2203525 BREATHER HOSES KIT, FCR CARB
    BREATHER HOSES KIT, FCR CARB
  • 30
    3131671 COULD NOT FIND
    COULD NOT FIND
  • 31
    2203530 NEEDLE SET SCREW KIT, FCR
    NEEDLE SET SCREW KIT, FCR
  • 32
    3131673 COULD NOT FIND
    COULD NOT FIND
  • 33
    3131674 COULD NOT FIND
    COULD NOT FIND
  • 34
    3131675 FITTING BREATHER HOSE, FCR
    FITTING BREATHER HOSE, FCR
  • 35
    2203526 IDLE SPEED SCREW KIT, FCR
    IDLE SPEED SCREW KIT, FCR
  • 36
    2203527 THROTTLE POS SENSOR KIT, FCR
    THROTTLE POS SENSOR KIT, FCR
