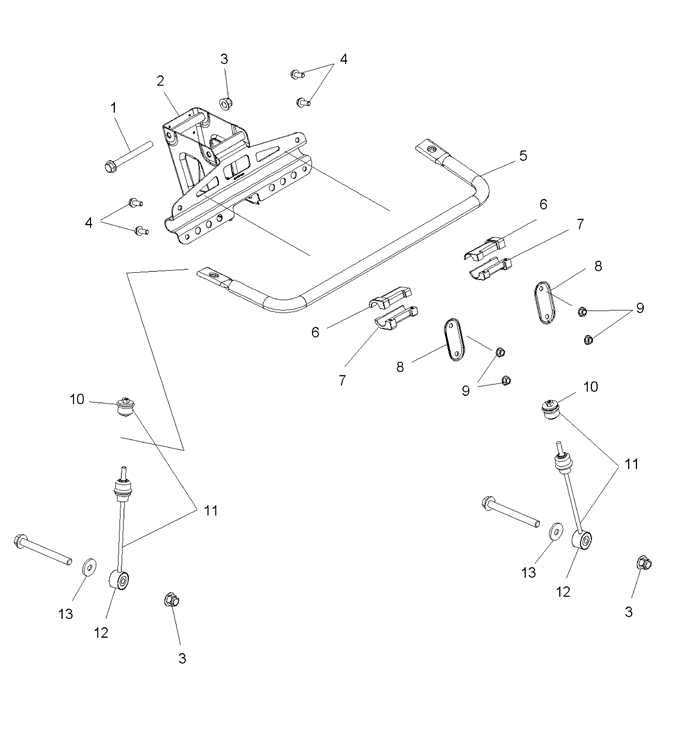

SUSPENSION - TORSION BAR для Polaris HAWKEYE 4X4 INTL (A07LH27FB) - 2007 года выпуска`
-
№АртикулНазвание
-
17518526 BOLT-M10X1.5X115,HX HD FLGBOLT-M10X1.5X115,HX HD FLG
-
21015187-067 WELD-MOUNT, STABILIZER, BLACKWELD-MOUNT, STABILIZER, BLACK
-
37547313 NUT-M10X1.5,HXFLG, NYLON INSNUT-M10X1.5,HXFLG, NYLON INS
-
47518702 BOLT-M8X1.25X20,HXHDFLGBOLT-M8X1.25X20,HXHDFLG
-
55335197-067 BAR-STABLZR,3/4''OD,FLATEND, BLACKBAR-STABLZR,3/4''OD,FLATEND, BLACK
-
65436343 BUSHING-STABILIZERBUSHING-STABILIZER
-
75436344 BUSHING-TORSION BARBUSHING-TORSION BAR
-
85249464 PLATE-RETAINERPLATE-RETAINER
-
97547317 NUT-M8X1.25,HXFLG,NYLON INSNUT-M8X1.25,HXFLG,NYLON INS
-
105412937 BUSHING-LINKAGE TOR BAR,DUR 80BUSHING-LINKAGE TOR BAR,DUR 80
-
115135941 LINKAGE-BAR,TORSION,210MM,ITWLINKAGE-BAR,TORSION,210MM,ITW
-
137555852 WASHER, FLATWASHER, FLAT
