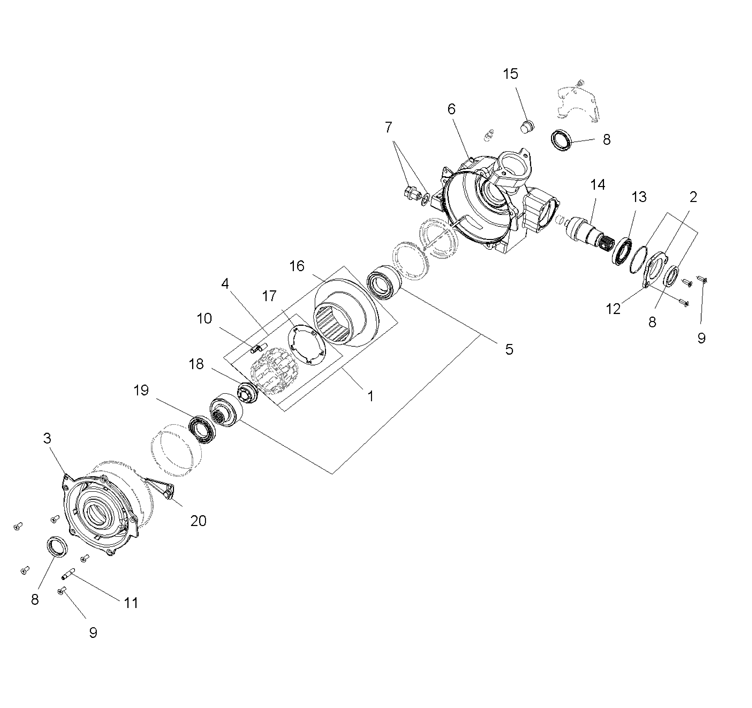

GEARCASE - FRONT (4X4 DEMAND DRIVE) для Polaris HAWKEYE 4X4 INTL (A07LH27FB) - 2007 года выпуска
‹-+›
-
№АртикулНазвание
-
-1332369 ASM-GEARCASE,FRONT (INCL. ALL)ASM-GEARCASE,FRONT (INCL. ALL)
-
13234384 ASM-CLUTCH (INCL. 4-7)ASM-CLUTCH (INCL. 4-7)
-
23234397 ASM-COVER,INPUT (INCL. SEAL, O-RING)ASM-COVER,INPUT (INCL. SEAL, O-RING)
-
33234382 ASM-COVER,OUTPUT (INCL. SEALS, COIL, THRUST PLATE, SET SCREW)ASM-COVER,OUTPUT (INCL. SEALS, COIL, THRUST PLATE, SET SCREW)
-
43234394 ASM-ROLL CAGE (INCL. CAGE, CLIPS, ARMATURE PLATE)ASM-ROLL CAGE (INCL. CAGE, CLIPS, ARMATURE PLATE)
-
53234383 ASM-HUB,RACE/OUTPUT (INCL. BOTH SIDES)ASM-HUB,RACE/OUTPUT (INCL. BOTH SIDES)
-
63234395 ASM-GEARCASE (INCL. SEALS, VENTS, PLUGS, BEARING)ASM-GEARCASE (INCL. SEALS, VENTS, PLUGS, BEARING)
-
73234396 ASM-PLUG,DRAIN (INCL. SEAL, WASHER)ASM-PLUG,DRAIN (INCL. SEAL, WASHER)
-
83234386 KIT-REPAIR,SEAL (INCL. SEALS, O-RINGS)KIT-REPAIR,SEAL (INCL. SEALS, O-RINGS)
-
93234385 KIT-BOLT (INCL. BOLTS)KIT-BOLT (INCL. BOLTS)
-
103234393 KIT-ROLLER (20) (INCL. COMPLETE ROLLER SET)KIT-ROLLER (20) (INCL. COMPLETE ROLLER SET)
-
113234388 SCREW-SETSCREW-SET
-
123234401 COVER-INPUTCOVER-INPUT
-
133234390 BEARINGBEARING
-
143234399 GEAR-PINION,12TGEAR-PINION,12T
-
153234398 PLUG-FILLPLUG-FILL
-
163234392 RING GEAR-CLUTCH HSG,44TRING GEAR-CLUTCH HSG,44T
-
173234387 PLATE-ARMATUREPLATE-ARMATURE
-
183234391 SPACER-HUBSPACER-HUB
-
193234400 BEARINGBEARING
-
203234389 ASM-PLATE,THRUSTASM-PLATE,THRUST
