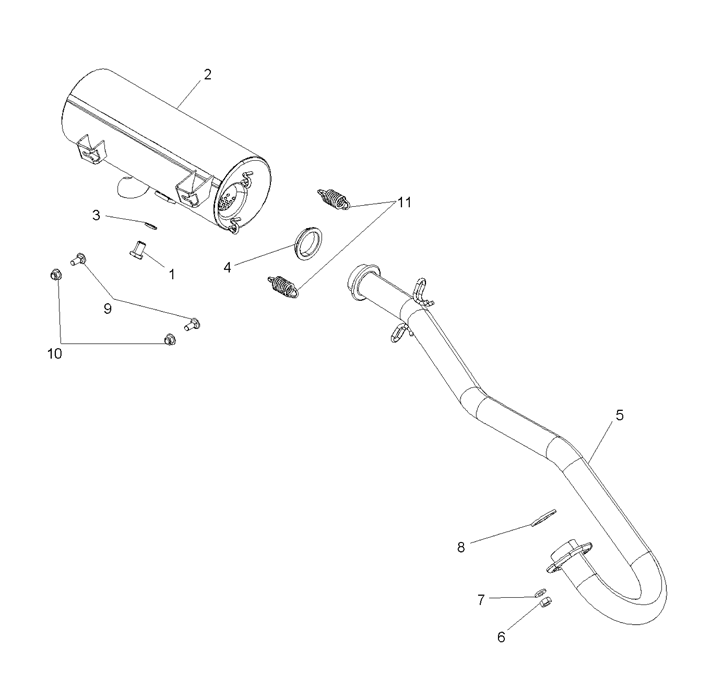

EXHAUST SYSTEM для Polaris HAWKEYE 2X4 INTL (A07LB27FA) - 2007 года выпуска
-
№АртикулНазвание
-
17512666 BOLTBOLT
-
21261709-029 WELD-EXHAUST,SILENCER, BLACKWELD-EXHAUST,SILENCER, BLACK
-
37556230 WASHER-CLEAN OUT .51X.75X.09WASHER-CLEAN OUT .51X.75X.09
-
45243518 SEAL,EXHAUSTSEAL,EXHAUST
-
51261710-029 WELD-HEADPIPE, BLACKWELD-HEADPIPE, BLACK
-
63087199 NUTNUT
-
73080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
83087957 ASM.,GASKET EXHAUSTASM.,GASKET EXHAUST
-
97515316 BOLTBOLT
-
107542321 NUT,FLANGENUT,FLANGE
-
117041804 SPRINGSPRING
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - CALIPER MOUNTING
- BRAKE - DISTRIBUTION BLOCK
- BRAKE - FOOT
- BRAKE - FRONT AND REAR CALIPER
- BRAKE - FRONT BRAKE LINES
- BRAKE - HAND - FRONT
- BRAKE - REAR W/LINES
- BUMPER - FRONT
- CAB - REAR - FOIL
- CAB - REAR - FRAME - FOOTWELLS
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR - LOWER
- CARBURETOR - UPPER
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER W/DUCTING
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECALS
- ELECTRICAL COMPONENTS
- • EXHAUST SYSTEM
- FENDER - FRONT
- FUEL PUMP
- FUEL TANK
- GEAR SELECTOR
- GEARCASE - CLUTCH
- GEARCASE - FRONT - MOUNTING
- HANDLEBAR - CONTROL ASSY.
- HEADLIGHT - TAIL LIGHT
- MAGNETO
- MOUNTING - ENGINE
- MOUNTING - TRANSMISSION
- MUD GUARDS
- OIL PUMP AND OIL FILTER
- RACK - REAR
- SEAT ASSY.
- SHAFT - REAR
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- SUSPENSION - SHOCK
- SUSPENSION - TORSION BAR
- THROTTLE ASSEMBLY
- TOOL KIT
- TRANSMISSION - CASES
- TRANSMISSION - INTERNALS
- TURN SIGNALS AND HORN
- WHEEL - FRONT W/ HUB
- WHEEL - REAR W/ HUB
