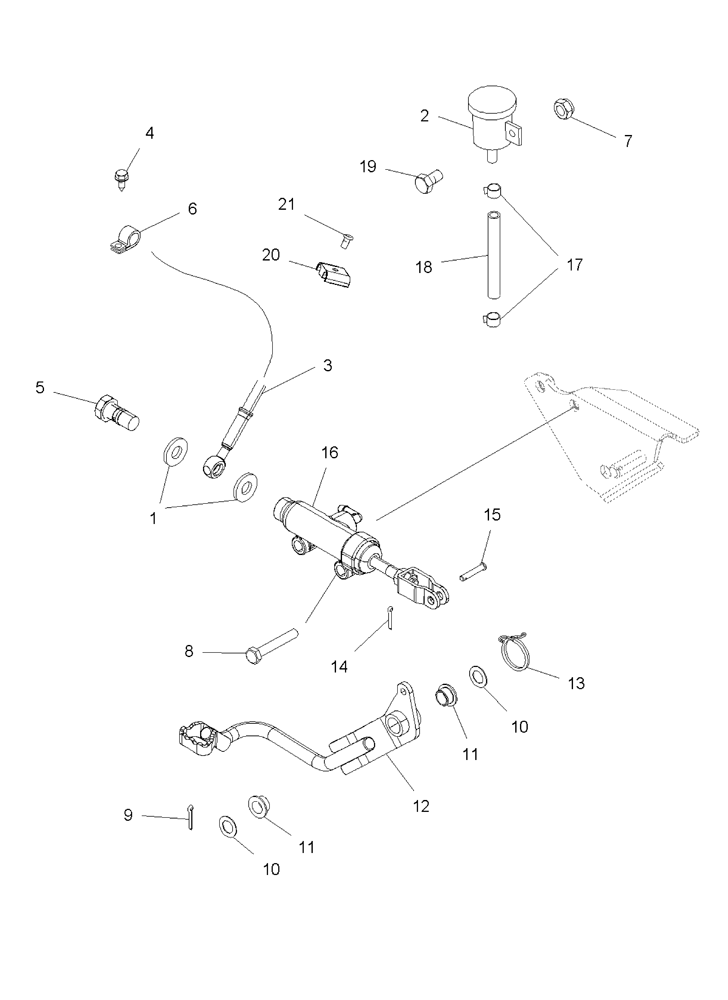

BRAKE - FOOT для Polaris HAWKEYE 2X4 INTL (A07LB27FA) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    5413212 SEAL-STAT-O-3/8,70EP
    SEAL-STAT-O-3/8,70EP
  • 2
    1910674 ASM-RESERVOIR, REAR, BRAKE
    ASM-RESERVOIR, REAR, BRAKE
  • 3
    1911157 LINE-BRK,FOOT-J/B, HAWKEYE INTL
    LINE-BRK,FOOT-J/B, HAWKEYE INTL
  • 4
    7512024 SCREW
    SCREW
  • 5
    1910499 BOLT-BANJO,10MMX1.00
    BOLT-BANJO,10MMX1.00
  • 6
    7080683 CLAMP, HOSE
    CLAMP, HOSE
  • 7
    7547274 NUT-M6 FLANGE, NYLOK
    NUT-M6 FLANGE, NYLOK
  • 8
    7518469 BOLT-M8X1.25X35,HX HD FLG
    BOLT-M8X1.25X35,HX HD FLG
  • 9
    7661401 PIN, COTTER
    PIN, COTTER
  • 10
    7555919 WASHER
    WASHER
  • 11
    5433189 BUSHING-PEDAL PIVOT
    BUSHING-PEDAL PIVOT
  • 12
    1015257-067 COULD NOT FIND
    COULD NOT FIND
  • 13
    7043126 SPRING-TORSION, BRAKE
    SPRING-TORSION, BRAKE
  • 14
    7661205 PIN-COTTER
    PIN-COTTER
  • 15
    7661830 PIN, CLEVIS
    PIN, CLEVIS
  • 16
    1910995 ASM-M/CYL FOOT 3/4'',3.70'' LONG
    ASM-M/CYL FOOT 3/4'',3.70'' LONG
  • 17
    1911016 COULD NOT FIND
    COULD NOT FIND
  • 18
    7080003 CLAMP,HOSE
    CLAMP,HOSE
  • 19
    7518533 BOLT-M6X1.0X20,HXHD,FLG, BLACK
    BOLT-M6X1.0X20,HXHD,FLG, BLACK
  • 20
    7670126 CLIP-RETAINING, DUAL .250'' LINE
    CLIP-RETAINING, DUAL .250'' LINE
  • 21
    7517756 SCREW,10-24X5/8
    SCREW,10-24X5/8
